I･pulse F1 Series F1-823 (F t ype) P 7 No. Code No. Parts Name Q'ty Parts No. LG4-M1A90-000 REEL HOLDER ASSY 1 AS -201720 1 LG4-M1AA1-003 CONTROL BOARD 1 FTA-A08-8151-FCB 2 LG4-M1A6R-010 CONTROL BOARD COLLAR 3 FTA-A…
I･pulse F1 Series
F1-823 （F type)
P 6
Code No. Parts Name Q'ty Parts No.
LG4-M1A8E-000 IDLER ROLLER ASSY 1 AS -A08-8162
LG4-M1A82-014 INDEKING LEVER ASSY 1 AS-A08-8164-C
LG4-M1A8D-000 DRIVE ROLLER ASSY 1 AS -A08-8170
LG4-M1A81-005 D. ROLLER ALL ASSY 1 AS3-A08-8170
1 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2 K87-M117B-000 PLANE WASHER 2 CTF-M08- 76-B
3 KW1-M11A3-001 LOWER GUIDE PLATE,L 1 FTA-A08-1179-C
4 LG4-M1A62-000 METAL SHAFT 1 FTA-A08-8155
5 LG4-M1A8C-000 LEVER METAL 1 FTA-A08-8158-B
6 LG4-M1A63-020 LEVER AXIS PIN 1 FTA-A08-8159-C
7 LG4-M1A64-000 COLLAR 1 FTA-A08-8159-1
8 LG4-M1A65-020 TENSION LEVER 1 FTA-A08-8160-C
9 LG4-M4A8B-000 TENSION LEVER RE.SP. 1 FTA-A12-8160-700
10 LG4-M1A66-010 ROLLER AXIS 1 FTA-A08-8163-B
11 LG4-M1A83-002 INDEKING LEVER 1 FTA-A08-8164-C
12 LG4-M1A8A-001 INDEKING LEVER RE.SP. 1 FTA-A08-8164-410C
13 LG4-M1A84-010 ARM STUD 1 FTA-A08-8166-B
14 LG4-M1A85-000 ROLLER 1 FTA-A08-8167
15 LG4-M1A6M-010 MIDDLE GUIDE PLATE T 1 FTA-A08-8177-D
16 LG4-M1A6P-011 LOWER GUIDE PLATE,R 1 FTA-A08-8178-C
17 K87-M116A-100 SPRING HOOK PIN 1 CTF-M08- 166-B
18 K87-M11BF-000 SCREW,FLAT HEAD+ 1 P2MK-4-IB
19 K87-M11BB-000 SCREW,FLAT HEAD+ 2 P2.6MK-5-IB
21 K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
22 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P

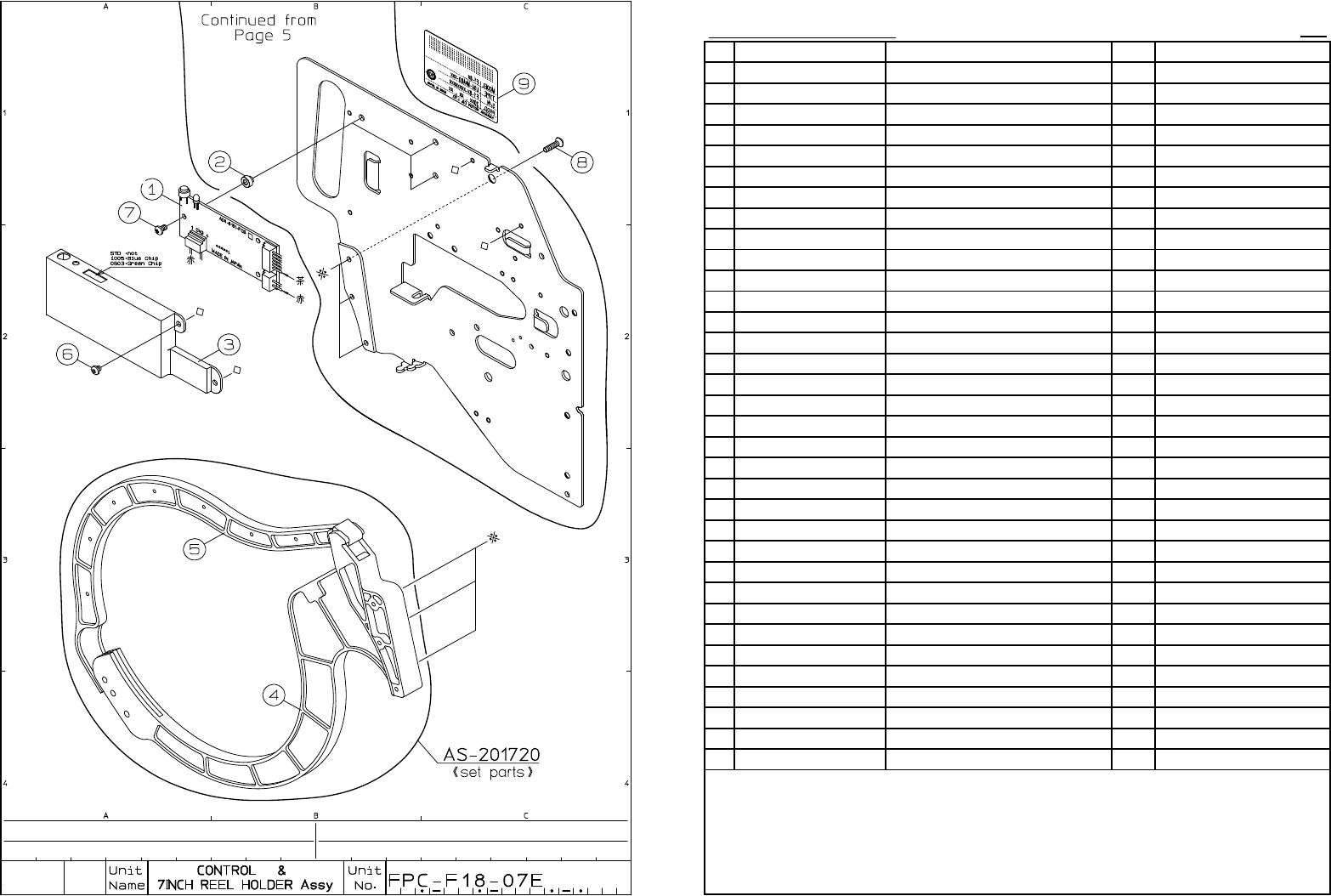

I･pulse F1 Series
F1-823 (F type)
P 7
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A90-000
REEL HOLDER ASSY
1
AS -201720
1
LG4-M1AA1-003 CONTROL BOARD 1
FTA-A08-8151-FCB
2
LG4-M1A6R-010
CONTROL BOARD COLLAR
3
FTA-A08-8152-B
3
LG4-M3A6S-000
CONTROL BOARD COVER
1
FTA-A08-8153-B63
4
LG4-M1A91-000
REEL HOLDER
1
201720
5 LG4-M1A92-000
CLAMP ARM
1
201721
6 K87-M111N-000 SCREW,PAN HEAD＋ 3
3MC-3-P
7 K87-M111W-000 SCREW,PAN HEAD＋ 3
3MC-5-P
8 LG4-M1ADF-000
SCREW,BAIND HEAD+
3
3M-10-P-P-Bi
9
LG4-M1AC1-000 SERIAL NO. STICKER 1
FTA-A08-8150-SNS
MODEL ： F1-82-1005 (F_type)
CODE No. ： LG4-M2A00-081
Serial No.
F1-825-018886F～
