I･pulse F1 Series F1-823 (F type) P 2 No. Code No. Parts Name Q'ty Parts No. KW1-M1320-000 SPROCKET ASSY 1 AS2-A08-1107-P2 LG4-M1A2A-002 RACKING LEVER ASSY 1 AS2-A08-8117-B LG4-M1A2M-000 RATCHET AXIS ASSY 1 AS -A08-…
I･pulse F1 Series
F1-823 (F type)
P 1
No. Code No. Parts Name Q'ty Parts No.

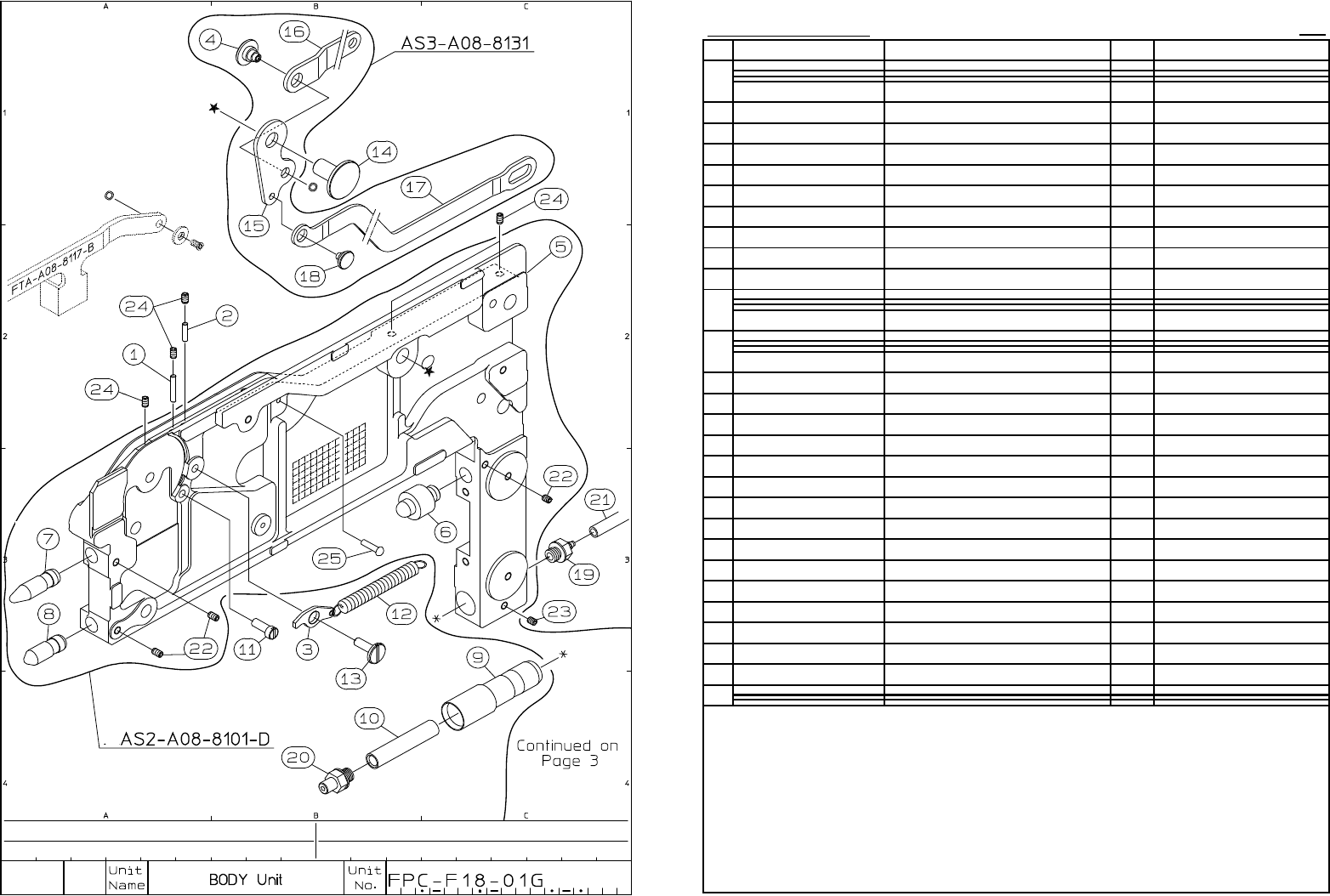

LG4-M1A10-050
BODY ASSY 1 AS1-A08-8101-D
LG4-M1A10-060
BODY ASSY 1 AS2-A08-8101-D
LG4-M1A1M-011
MAIN LEVER ASSY 1 AS3-A08-8131
1 K87-M111D-000
PUSH PIN 1 CTF-M08- 25
2 K87-M111G-100
PUSH PIN 1 CTF-M08- 325
3 K87-M111H-200
BACK STOPPER 1 FTA-A08-1114
4 KW1-M114E-000
ARM AXIS PIN 1 FTA-A08-1134
5 LG4-M1A11-030
BODY 1 FTA-A08-8101-D
6 LG4-M1A12-510
MAIN GUIDE PIN 1 FTA-E08-8502-B
7 LG4-M1A13-510
LOCATE PIN R 1 FTA-E08-8503-B
8 LG4-M1A14-510
LOCATE PIN F 1 FTA-E08-8504-B
LG4-M1A15-000
PLUG HOLDER GUIDE 1 FTA-A08-8105
LG4-M1A15-010
PLUG HOLDER GUIDE 1 FTA-A08-8105-B
LG4-M1A16-000
PLUG HOLDER 1 FTA-A08-8106
LG4-M1A16-010
PLUG HOLDER 1 FTA-A08-8106-B
11 LG4-M1A17-000
STOPPER PIN 1 FTA-A08-8113
※1 10
※1 1
※1 9
12 LG4-M1A19-001
BACK STOPPER SPRING 1 FTA-A12-6132-510
13 LG4-M1A18-000
BACK STOPPER AXIS 1 FTA-A08-8115
14 LG4-M1A1K-000
LEVER AXIS PIN 1 FTA-A08-8130-B
15 LG4-M1A1N-000
MAIN LEVER 1 FTA-A08-8131
16 LG4-M1A1P-000
ARM 1 FTA-A08-8135
17 LG4-M1A1R-020
SUB ARM 1 FTA-A08-8138-C
18 LG4-M1A1S-010
SUB ARM GUIDE PIN 1 FTA-A08-8139-B
19 K87-M1186-000
BARB CONNECTOR 1 BF3BU
20 LG4-M1AB2-000
PLUG 1 MA-MC05PM
21 LG4-M1ABA-010
AIR HOSE 1 U3B-157
22 K87-M23B3-000
SCREW,SET 3 3MY-5
23 K87-M111X-000
SCREW,SET 1 3MY-4-F
24 K87-M111R-000
SCREW,SET 5 3MY-5-F
25 LG4-M1AD1-000
CIRCULAR RIVET 1 2-8
※1 26 LG4-M1AD2-000
CIRCLIP C 1 STW-7
※1…F1-823-002456F～
I･pulse F1 Series
F1-823 (F type)
P 2
No. Code No. Parts Name Q'ty Parts No.

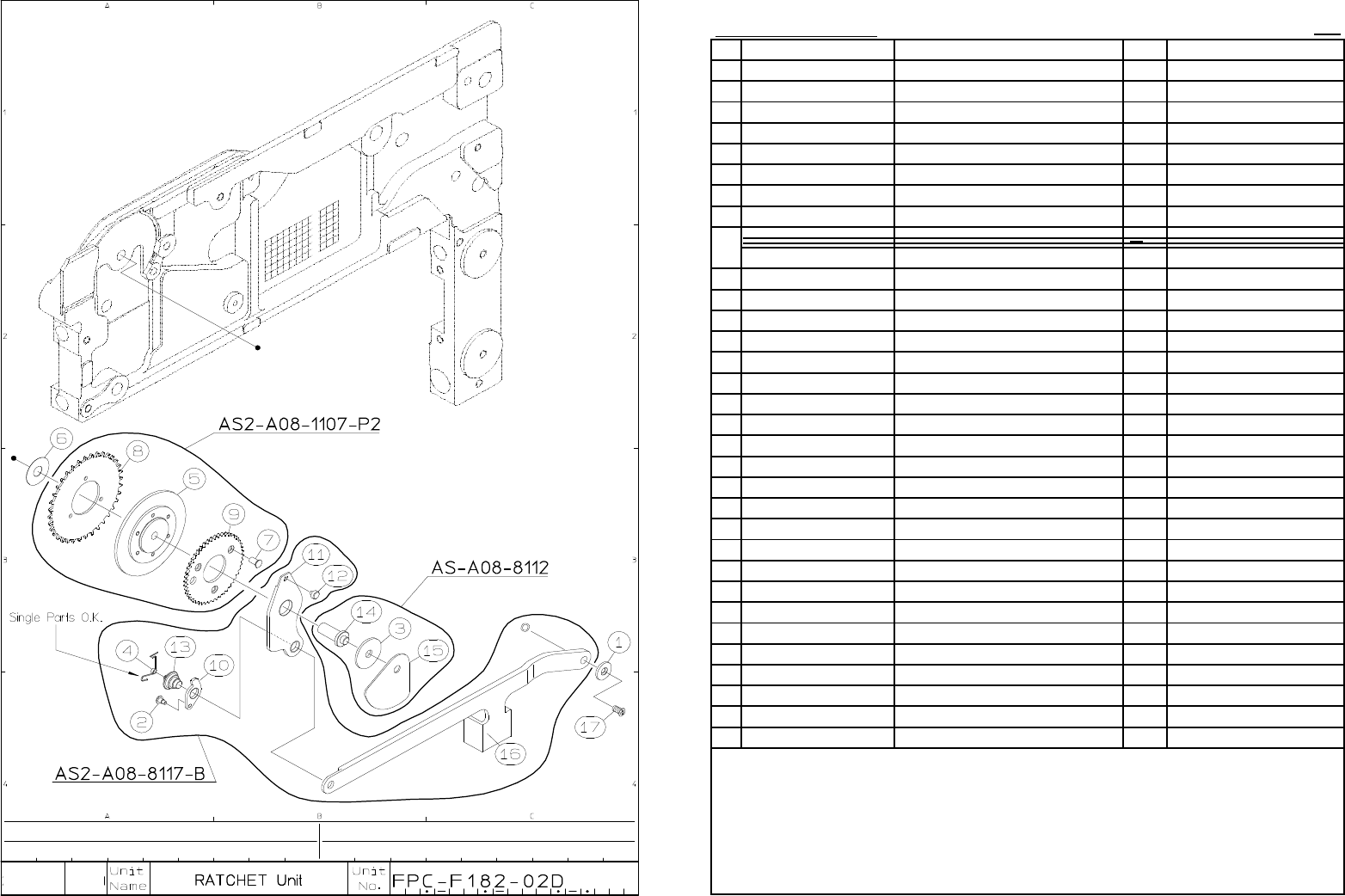

KW1-M1320-000 SPROCKET ASSY 1 AS2-A08-1107-P2
LG4-M1A2A-002 RACKING LEVER ASSY 1 AS2-A08-8117-B
LG4-M1A2M-000 RATCHET AXIS ASSY 1 AS -A08-8112
1
K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2
K87-M112F-000 SPRING HOOK PIN 1 CTF-A08- 211-B2
3
K87-M112M-100 FLANGE A 1 CTF-A08- 712-1
4 LG4-M1A2F-000 SCREW COIL SPRING 1
FTA-A08-8111-1
5
K87-M1121-000 METAL 1 FTA-A08-1103
KW1-M11BS-050
WASHER 1 2
FTA-A08-1103-005B
KJK-M119W-000 WASHER 2 FTA-A08-1464-005
7
K87-M1122-000 RIVET 3 FTA-A08-1103-1
8
KW1-M1123-000 SPROCKET 1 FTA-A08-1104-B
9
K87-M1324-000 RATCHET 1 FTA-A08-1107-P2
10
K87-M112G-100 RACKING POLE 1 FTA-A08-1111
11
LG4-M1A2E-000 RACKING LEVER 1 FTA-A08-8108
12
LG4-M1A2D-000 SHUTTER DRIVE PIN 1 FTA-A08-8109
13
LG4 M1A2C 000
RACKING POLE AXIS
1
FTA A08 8110
※1 6
13
LG4-M1A2C-000 RACKING POLE AXIS 1 FTA-A08-8110
14
LG4-M1A2N-000 RATCHET AXIS 1 FTA-A08-8112
15
LG4-M1A2P-000 FLANGE B 1 FTA-A08-8112-2
16
LG4-M1A2B-000 MAIN ARM 1 FTA-A08-8117-B
17
K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
18
19
20
21
22
23
24
25
26
27
28
29
※1…F1-823-002456F～
I･pulse F1 Series
F1-823 (F type)
P 3
No. Code No. Parts Name Q'ty Parts No.

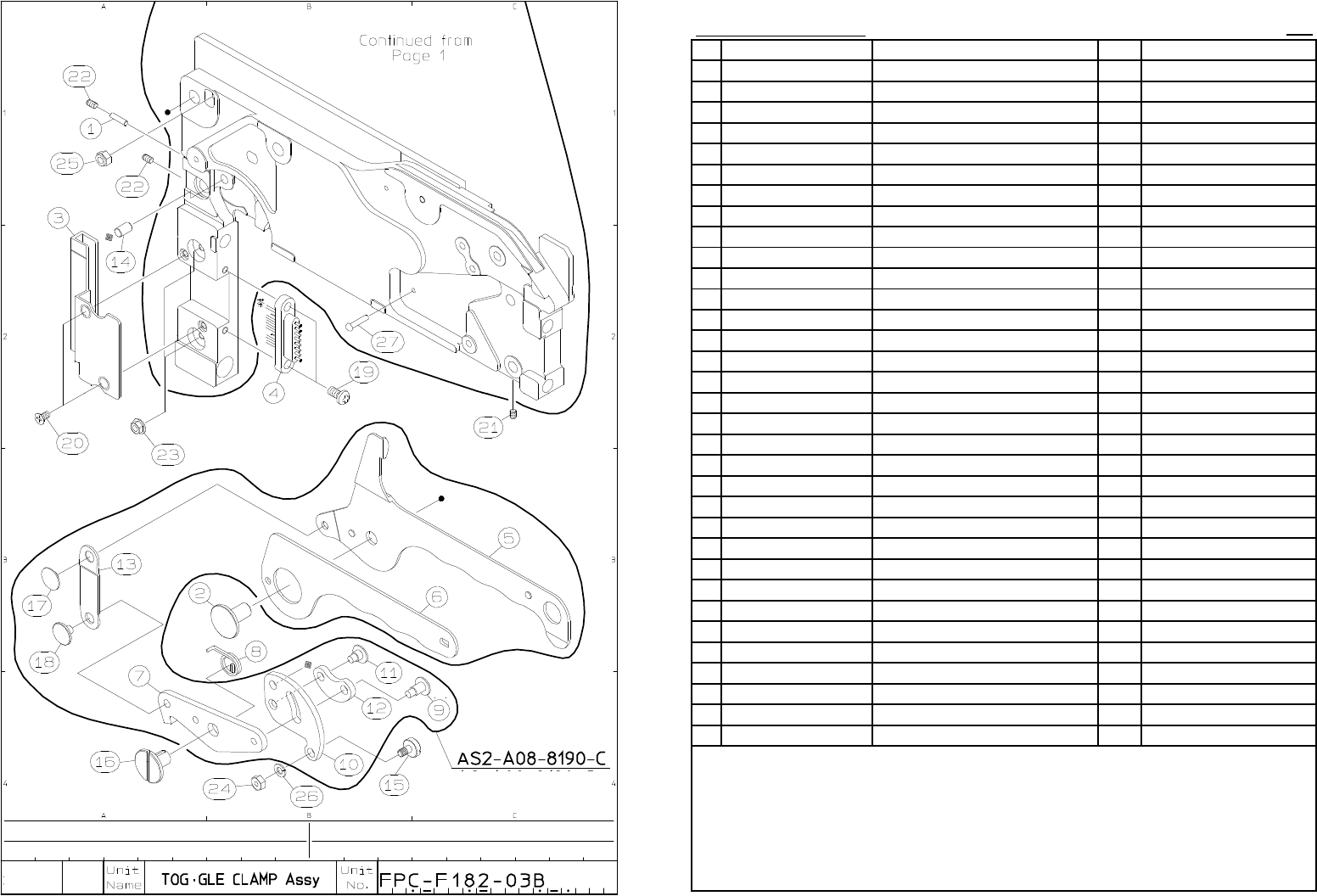

LG4-M1A30-021
HOLD LEVER ASSY 1
AS2-A08-8190-C
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2 LG4-M1A1K-000 LEVER AXIS PIN 1
FTA-A08-8130-B
3 LG4-M1A1A-001
COVER PLATE
1
FTA-A08-8149-C
4
LG4-M1AA2-001
SP.CONNECTOR ASSY
1
FTA-A08-8151-5B
5 LG4-M1A31-010
HOLD LEVER M
1 FTA-A08-8190-C
6 LG4-M1A32-000
HOLD LEVER S
1 FTA-A08-8190-1B
7 LG4-M1A34-001
CLAMP LEVER
1 FTA-A08-8191-C
8 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
9 LG4-M1A3A-001
HINGE PIN 1
1
FTA-A08-8191-1C
10
LG4-M1A35-001
CLANK ARM
1 FTA-A08-8192-B
11 LG4-M1A3B-000
HINGE PIN 2
1
FTA-A08-8192-1
12 LG4-M1A36-000
ARM
1
FTA-A08-8193
13 LG4-M1A33-000
LINK PLATE
1
FTA-A08-8194
14
LG4-M1A3L-000
CLANK ARM AXIS PIN
1
FTA-A08-8195
15 LG4-M1A37-010 ADJUST CLAMP PIN 1
FTA-A08-8196
16 LG4-M1A3K-001
CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
17 LG4-M1A38-000
LINK PIN T
1
FTA-A08-8198
18
LG4-M1A39-000
LINK PIN U
1
FTA-A08-8199
19 LG4-M1ADC-000
SCREW,PAN HEAD+ 2 3MC-7-P
20 K87-M111S-000
SCREW,FLAT HEAD+
2
3MK-6-P
21 K87-M111T-000 SCREW,SET 1 3MY-3-F
22 K87-M111R-000 SCREW,SET 2
3MY-5-F
23 K87-M111U-000
SCREW FLANGE NUT
2
3MH-FS
24 K87-M21BN-000
SCREW NUT
1
3MH-P
25 LG4-M1ADH-000
U-NUT
1
3MH-U-P
26 K87-M21BM-000
SPRING LOCK WASHER
1
3MU-P
27 K87-M1115-000
CIRCULAR RIVET
1
2-10
28
29
30
31
32
