I･pulse F1 Series F1-24 (E type) P 7 No. Code No. Parts Name Q'ty Parts No. 1 LG4-M6A1A-000 MICRO SWITCH BRACKET 1 FTA-A24-8135-B 2 LG4-M6A6B-000 C.B.COVER 1 FTA-A24-8137-B 3 LG4-M6A6C-000 COVER 1 FTA-A24-8138-B 4 L…

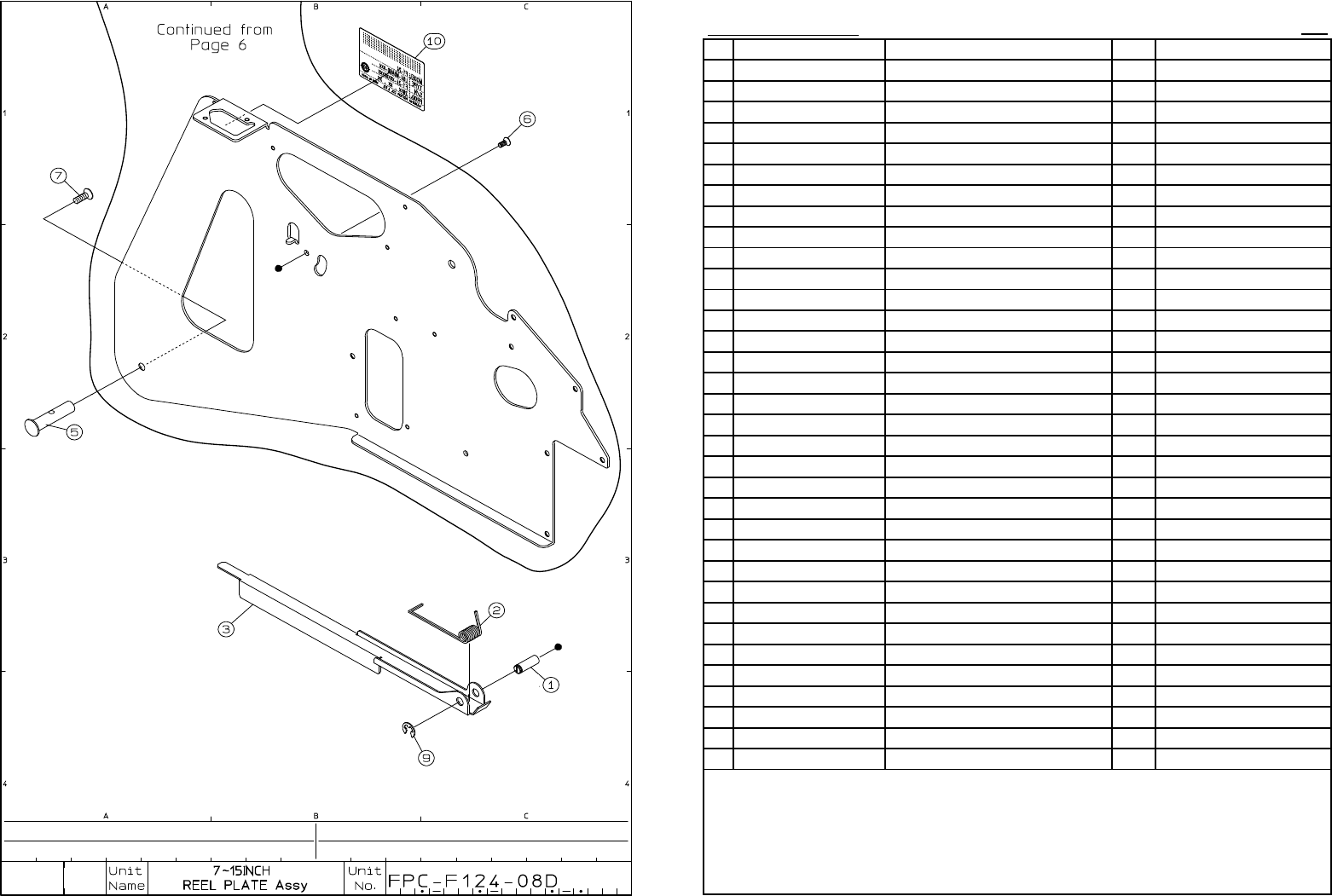

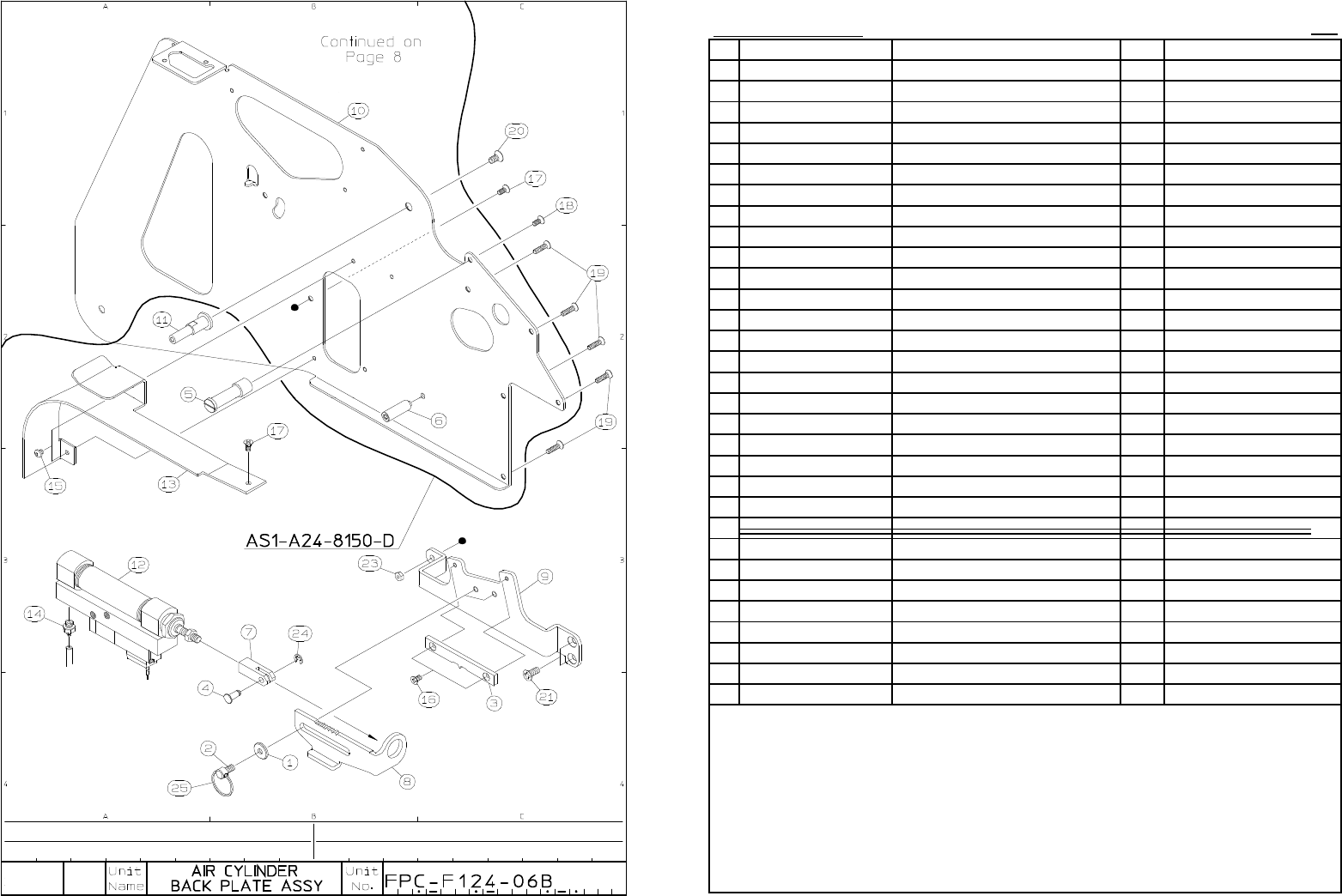

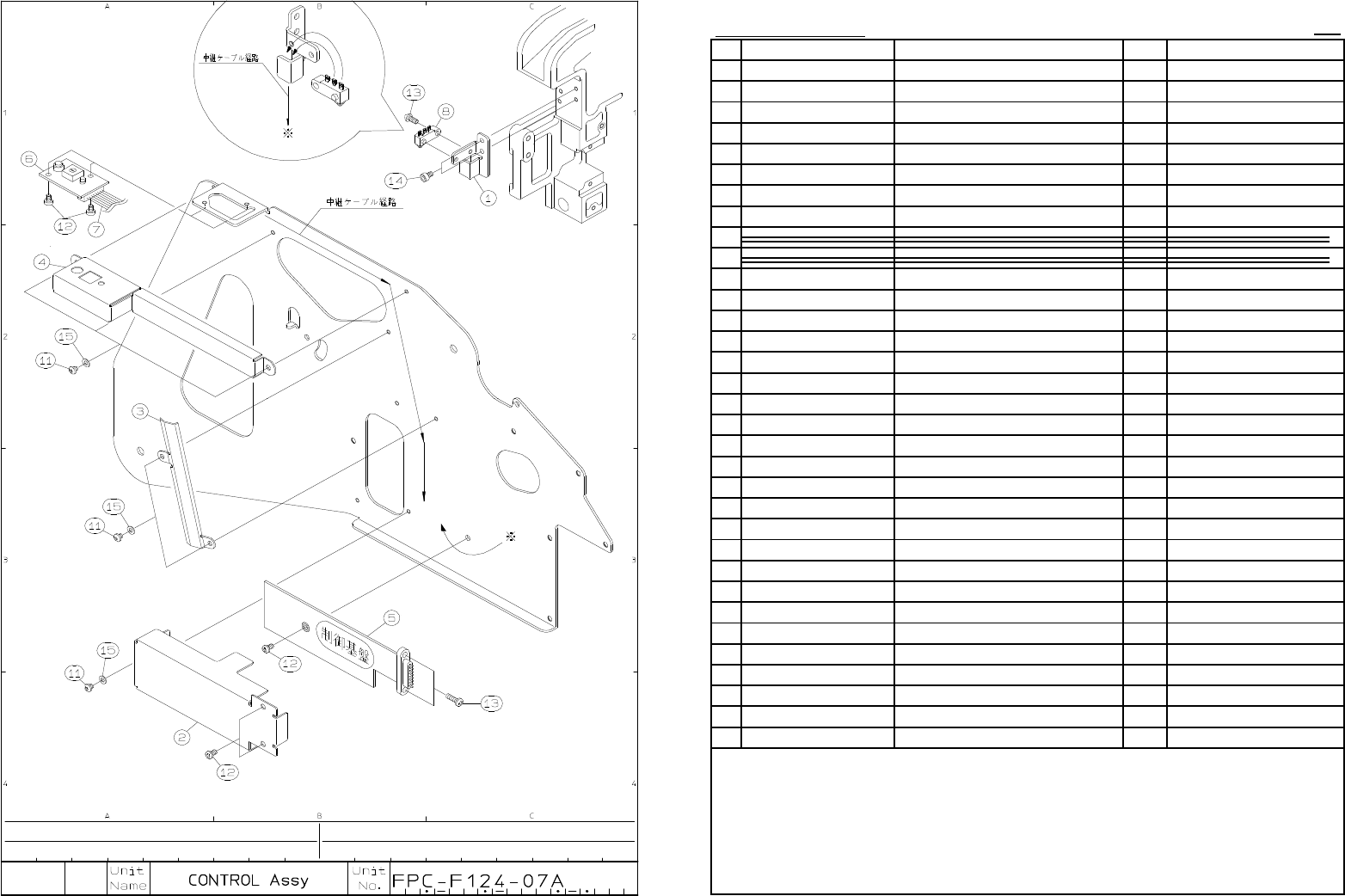

I･pulse F1 Series
F1-24 (E type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A60-011
BACK PLATE ASSY 1 AS1-A24-8150-D
1 K87-M2387-000 PLANE WASHER 2 CTF- 54- 66-1
2 KW1-M458E-000 RING SCREW 2 CTF-A12- 566-1
3 K87-M538C-000 POSITION PLATE 1 CTF-A32- 49-2
4
LG4-M1A72-000
CONNECT PIN 1 FTA-A08-8146
5
LG4-M6A63-011
ROLLER SHAFT 1 FTA-A24-8132-D
6
LG4-M6A64-000
SHAFT 1 FTA-A24-8140
7
LG4-M6A71-000
ROD CONNECTER 1 FTA-A24-8142
8 LG4-M6A73-001
ADJUST PLATE 1 FTA-A24-8148-C
9
LG4-M6A74-000
CYLINDER BRACKET 1 FTA-A24-8149-B
10
LG4-M6A61-011
BACK PLATE 1 FTA-A24-8150-D
11
LG4-M6A62-010
REEL SHAFT 1 FTA-A24-8151-B
12
LG4-M6AB1-000
VAL PACK CYLINDER 1 FTA-A24-8157
13 LG4-M6A6A-010
GUIDE PLATE 1 FTA-A24-8177-C
14 K87-M56C1-000
BARB CONNECTOR
1 BF4BU
15
K87-M111N-000
SCREW,PAN HEAD+ 2 3MC-3-P
16
K87 M111S 000
SCREW FLAT HEAD+
2
3MK6P
16 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
17
LG4-M4ADE-000
SCREW,FLAT HEAD+ 2 3MK-7-P
18 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
19 K87-M11B4-100 SCREW,FLAT HEAD+ 5 3MK-12-P
20 LG4-M6ADJ-000 SCREW,FLAT HEAD LEFT 1 4MK-8-P-L
21 LG4-M6ADE-000 SCREW,FLAT HEAD+ 2 4MK-10-P
22 KW1-M111T-000 SCREW,THIN HEAD 1 TH-TP-HS-M3-5
23 K87-M21BN-000 SCREW NUT 1 3MH-P
24 K87-M11D7-000
CIRCLIP E
1 E.32
25 KW1-M458F-000 DOUBLE RING 2 コクヨ リン-17
26
27
28
29
30
I･pulse F1 Series
F1-24 (E type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1
LG4-M6A1A-000
MICRO SWITCH BRACKET 1 FTA-A24-8135-B
2
LG4-M6A6B-000
C.B.COVER 1
FTA-A24-8137-B
3
LG4-M6A6C-000
COVER 1 FTA-A24-8138-B
4
LG4-M6A6D-000
LED,SWITCH COVER 1 FTA-A24-8139-B
5 LG4-M6AA1-001
CONTROL BOARD 1
FTA-A24-8153-FCN1
6
LG4-M6AA2-000
CONTROL BOARD 1 FTA-A24-8154
7
LG4-M6AA4-000 VALVE HARNESS ASSY
1 FTA-A24-8155
8
LG4-M6AA3-000 MICRO SWITCH ASSY
1 FTA-A24-8156
9 K87-M534F-000
SCREW,TRUSS HEAD+
1
T3M-4-P
10 K87-M23BL-000
SCREW,TRUSS HEAD+
2
T3M-5-P
11
K87-M111N-000
SCREW,PAN HEAD+ 6 3MC-3-P
12 K87-M111W-000
SCREW,PAN HEAD+ 5 3MC-5-P
13
LG4-M1ADC-000
SCREW,PAN HEAD+ 3
3MC-7-P
14 LG4-M6ADG-000 BOLT,HEX SOCKET HEAD 2 3MX-5-P
15 K87-M11BE-000 THRUST WASHER 6 3MV (3V-0.5-8-P)
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
I･pulse F1 Series
F1-24 (E type)
P 8
No. Code No. Parts Name Q'ty Parts No.
1
LG4-M4A92-011
REEL TENTION AXIS 1 FTA-A12-8182-C
2
LG4-M4A9B-002 COIL SPRING
1 FTA-A12-8183-D
3 LG4-M4A9A-003 TENSION LEVER
1
FTA-A12-8181-F
5
LG4-M6A65-010
REEL AXIS 1 FTA-A24-8172-B
6 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
7 LG4-M4ADH-000 SCREW,FLAT HEAD+ 1 4MK-12-P
9
LG4-M4AD4-000 CIRCLIP E
1 E.50
※1 10
LG4-M6AC1-000
SERIAL NO. STICKER 1
FTA-A24-8150-SNS
※1…F1-24-003471E～
