I･pulse F1 Series F1-44 (E type) P 8 No. Code No. Parts Name Q'ty Parts No. 1 LG4-M4A92-011 REEL TENTION AXIS 1 FTA-A12-8182-C 2 LG4-M4A9B-002 COIL SPRING 1 FTA-A12-8183-D 3 LG4-M4A9A-003 TENSION LEVER 1 FTA-A12-818…

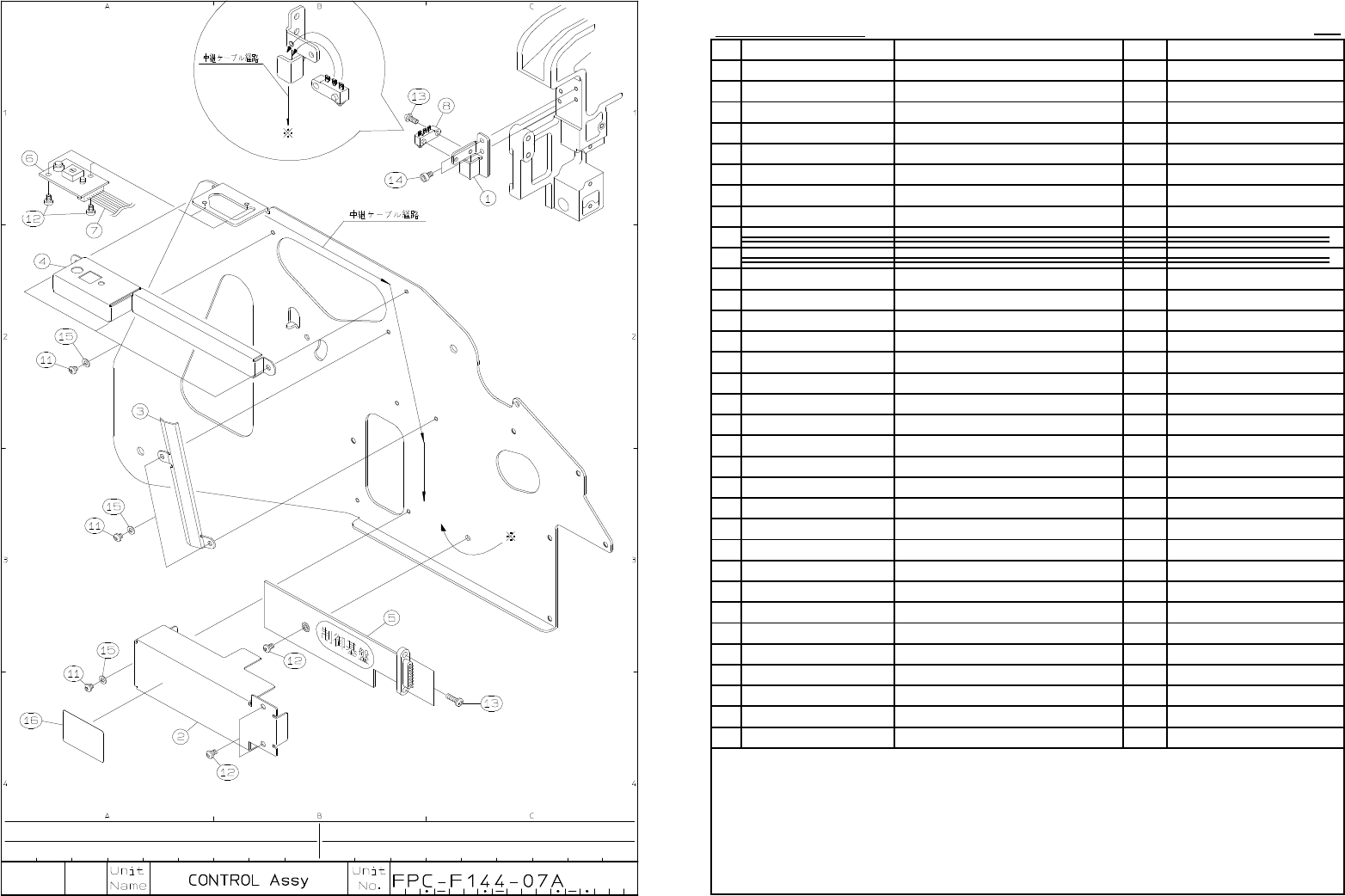

I･pulse F1 Series
F1-44 (E type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1
LG4-M6A1A-000
MICRO SWITCH BRACKET 1 FTA-A24-8135-B
2
LG4-M8A6B-000
C.B.COVER 1
FTA-A44-8137
3
LG4-M6A6C-000
COVER 1 FTA-A24-8138-B
4
LG4-M6A6D-000
LED,SWITCH COVER 1 FTA-A24-8139-B
5 LG4-M6AA1-001
CONTROL BOARD 1
FTA-A24-8153-FCN1
6
LG4-M6AA2-000
CONTROL BOARD 1 FTA-A24-8154
7
LG4-M6AA4-000 VALVE HARNESS ASSY
1 FTA-A24-8155
8
LG4-M6AA3-000 MICRO SWITCH ASSY
1 FTA-A24-8156
9 K87-M534F-000
SCREW,TRUSS HEAD+
1
T3M-4-P
10 K87-M23BL-000
SCREW,TRUSS HEAD+
2
T3M-5-P
11
K87-M111N-000
SCREW,PAN HEAD+ 6 3MC-3-P
12 K87-M111W-000
SCREW,PAN HEAD+ 5 3MC-5-P
13
LG4-M1ADC-000
SCREW,PAN HEAD+ 3
3MC-7-P
14 LG4-M6ADG-000 BOLT,HEX SOCKET HEAD 2 3MX-5-P
15 K87-M11BE-000 THRUST WASHER 6 3MV (3V-0.5-8-P)
16
LG4-M7AC2-000
SET UP STICKER 1 FTA-A32-8137-SPS
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
I･pulse F1 Series
F1-44 (E type)
P 8
No. Code No. Parts Name Q'ty Parts No.
1
LG4-M4A92-011
REEL TENTION AXIS 1 FTA-A12-8182-C
2
LG4-M4A9B-002 COIL SPRING
1 FTA-A12-8183-D
3 LG4-M4A9A-003 TENSION LEVER
1
FTA-A12-8181-F
5
LG4-M8A65-010
REEL AXIS 1 FTA-A44-8172-B
6 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
7 LG4-M4ADH-000 SCREW,FLAT HEAD+ 1 4MK-12-P
9
LG4-M4AD4-000 CIRCLIP E
1 E.50
※1 10
LG4-M8AC1-000
SERIAL NO. STICKER 1
FTA-A44-8150-SNS
※1…F1-44-000696E～
MODEL ： F1-56 (E_type)
CODE No. ： LG4-M9A00-061
Serial No.
F1-56-000204E～
