SIPLACE Pro 17.0 (R19-2) / Installation Manual 11/2019 Edition
10
4 Requirements
NOTICE
System requirements
The Support Media checks the necessary system requirements of your system and
installs these. Amongst others e.g. Microsoft .NET Framework, the ASM License
Manager, the ASM Error Reporter Service and the ASM Operation Manager.
The use of the ASM Support Media 2.10 (R19-2) is mandatory.
The system requirements (supported operating systems and database variants) and an
overview of the interoperable products can be found in the ASM Support Media 2.10
(R19-2) Software Version Description, item no. [00900052-xx].
– Windows administrative rights are required for all computers on which you are installing
SIPLACE Pro.
– SIPLACE Pro requires an NTFS partition for the installation. FAT or FAT32 file systems are not
supported.
– All computers must have been set up and prepared appropriately in advance for the complete
installation of SIPLACE Pro to function correctly. These preparatory measures demand
knowledge about the administrative functions of Windows and SQL Server.
► Please contact your system administrator for assistance if required.
– Network access rights must have been set up in order to permit data exchange with the UNIX
line computer.
SIPLACE Pro 17.0 (R19-2) / Installation Manual 11/2019 Edition
11
5 Software Components and Configuration
This chapter describes the software components of SIPLACE Pro and possible configurations.
5.1 Software Components
SIPLACE Pro consists of the following software components to be installed:
Server components:
– SIPLACE Pro Server
contains the server program.
– SIPLACE Pro Database
contains the SIPLACE Pro database.
Client components:
– SIPLACE Pro Line Control Server
to be used on computers dedicated to perform download of production data to the line.
– SIPLACE Pro Desk
contains the user interface of SIPLACE Pro.
– SIPLACE Pro Line Control GUI
contains the user interface of SIPLACE Line Control Server.
5.2 Configuration
The system installation can be installed on one computer or distributed across several computers.
If the SIPLACE Pro software is installed on separate computers, you work with one computer as
the dedicated server and one or more other computers as clients.
If the SIPLACE Pro software is installed on one computer, this computer functions as both server
and client.
In typical factory layouts, you can either have one central database containing all data for all lines
or a dedicated SIPLACE Pro Server for each line. A central database makes it possible to share
the same data for all lines, like component shape definitions. The dedicated SIPLACE Pro Servers
are independent from each other.
SIPLACE Pro 17.0 (R19-2) / Installation Manual 11/2019 Edition
12

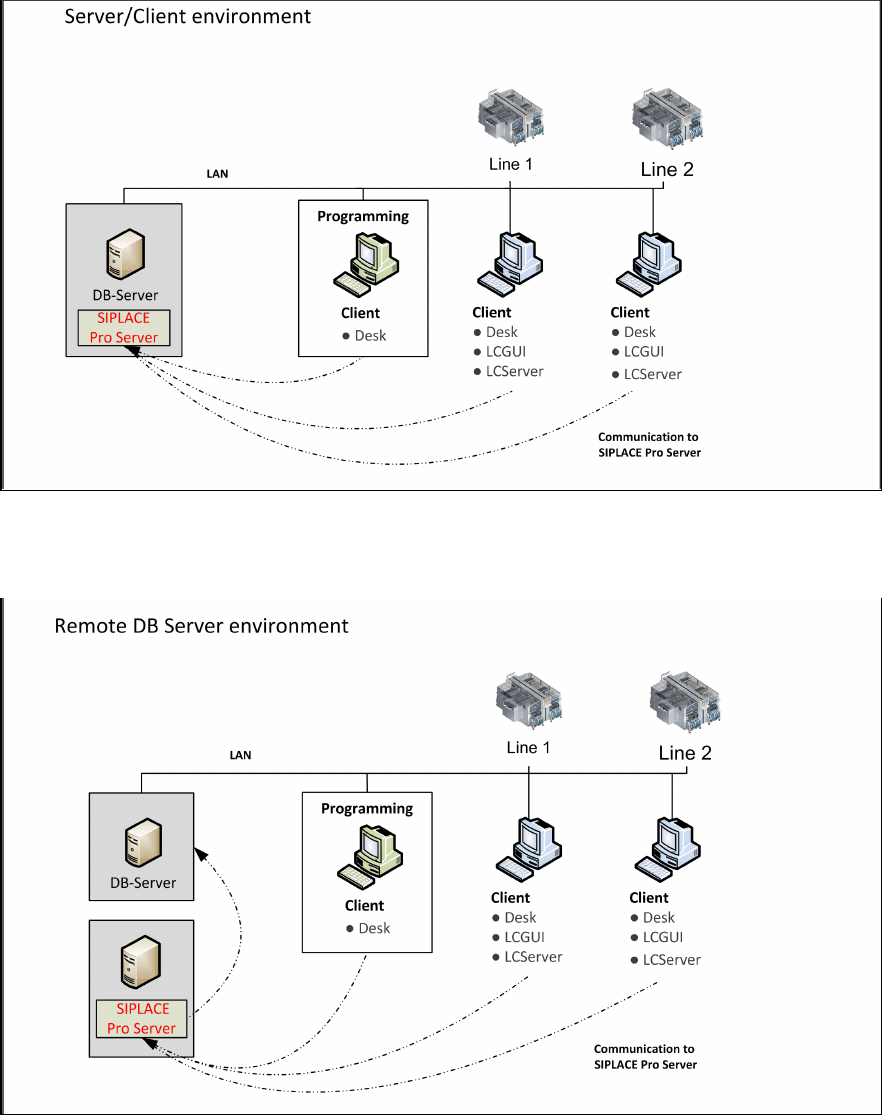

As default, the SIPLACE Pro database and SIPLACE Pro Server are installed on the same
computer as displayed in the following figure.
Figure 5-1: Default configuration
The database can optionally be installed on another computer than SIPLACE Pro Server as
displayed in the following figure. Please refer to section 6.2.5 for more information.
Figure 5-2: Database installed on remote computer
