SIPLACE Pro 17.0 (R19-2) / Installation Manual 11/2019 Edition
26
The Select Server dialog is displayed.

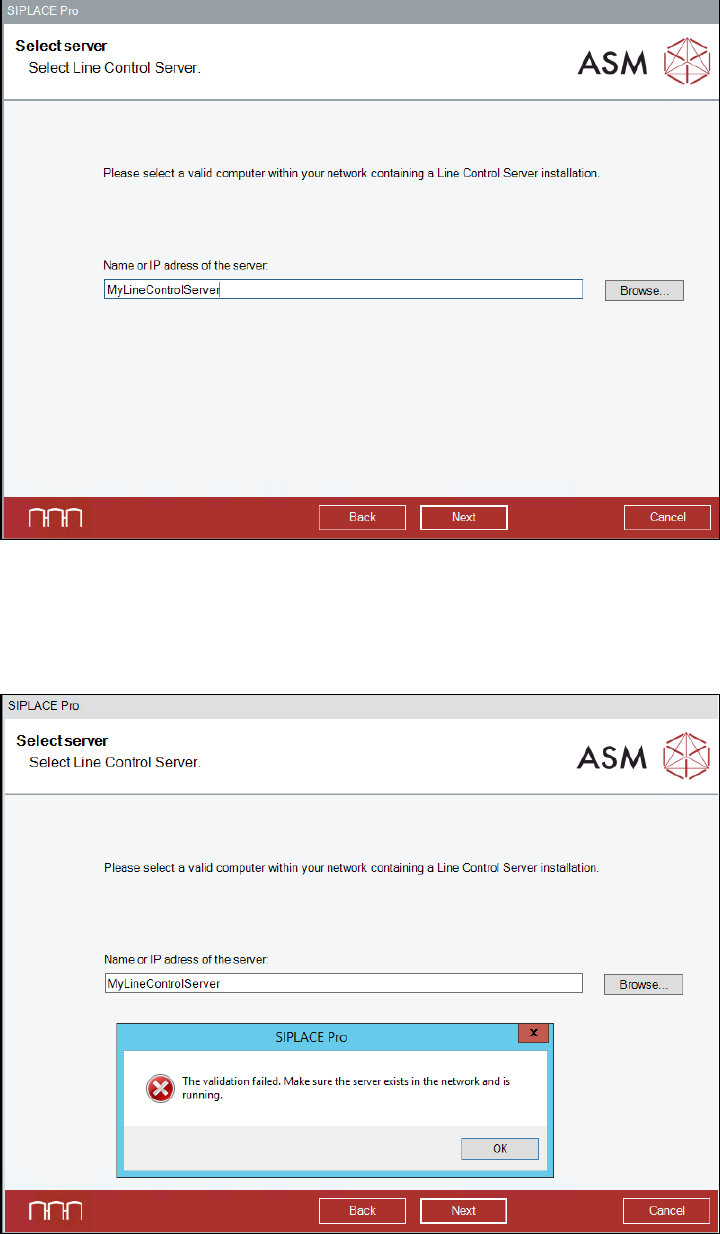

Figure 6-19: Selecting Line Control Server
► Enter the server name of the remote computer on which the Line Control Server is installed.
► Click the Next button.
The following message is displayed if the remote computer is unavailable.
Figure 6-20: Validation failed
► In this case, click the OK button and solve the problem.
► Click the Next button.
The installation continues with the SQL Server Login dialog as described in Figure 6-9.
SIPLACE Pro 17.0 (R19-2) / Installation Manual 11/2019 Edition
27
NOTICE
After installation, the remote server must be running. Otherwise, required configuration
steps cannot be done and, as a consequence, the product will not work!
6.2.2 Installation without Local SIPLACE Pro Server
If SIPLACE Pro Server has already been installed on a remote computer this software component
has to be disabled during the SIPLACE Pro installation.
► Ensure that the remote computer is connected to the network and available.
► Start installing SIPLACE Pro as described in section 6.2.
► Proceed as follows when the Packages and Features dialog is displayed.
Figure 6-21: Disabling SIPLACE Pro Server
► Disable the SIPLACE Pro Server software feature.
► Click the Next button.
SIPLACE Pro 17.0 (R19-2) / Installation Manual 11/2019 Edition
28
The Select Server dialog is displayed.

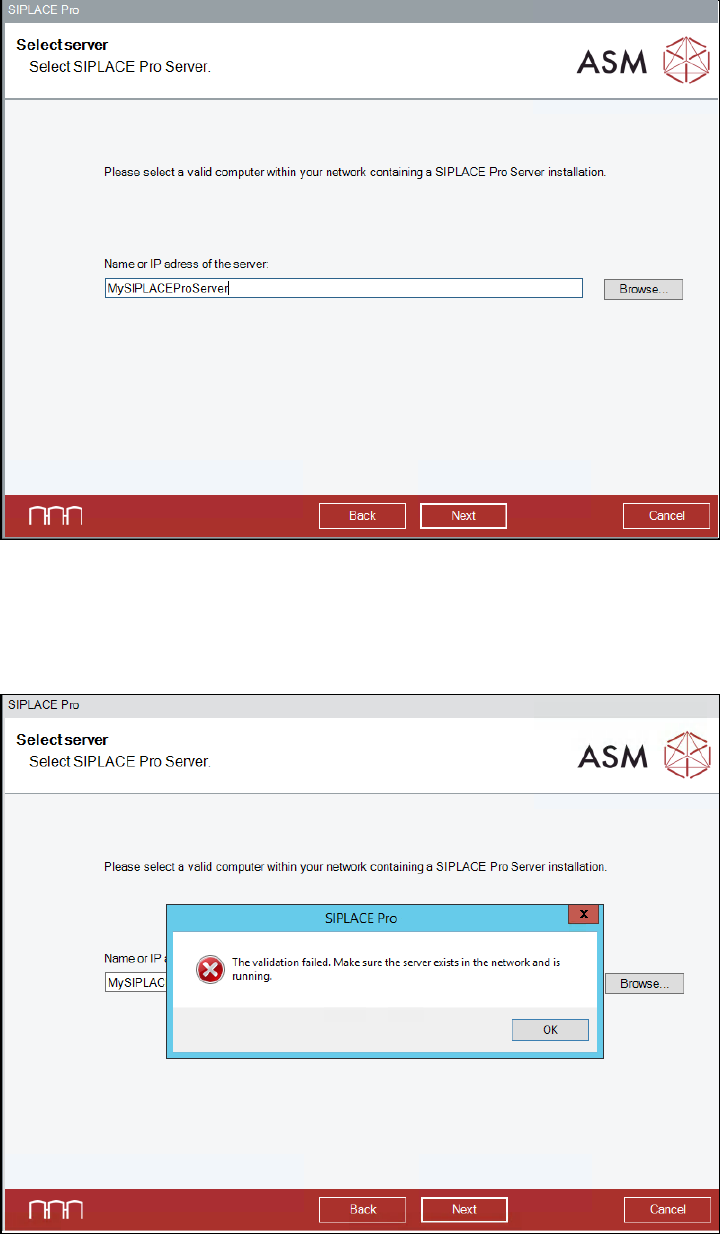

Figure 6-22: Selecting SIPLACE Pro Server
► Enter the server name of the remote computer on which SIPLACE Pro Server is installed.
► Click the Next button.
The following message is displayed if the remote computer is unavailable.
Figure 6-23: Validation failed
► In this case, click the OK button and solve the problem.
► Click the Next button.
