SIPLACE Pro 17.0 (R19-2) / Installation Manual 11/2019 Edition
56
Figure 8-4: Enabling / disabling SIPLACE Pro access rights
► If applicable, enable or disable the SIPLACE Pro access rights.
► Click the Next button.
SIPLACE Pro 17.0 (R19-2) / Installation Manual 11/2019 Edition
57
If you are installing a local database, the SQL Server dialog is displayed. This dialog contains the
information required to connect to the SQL Server and database.

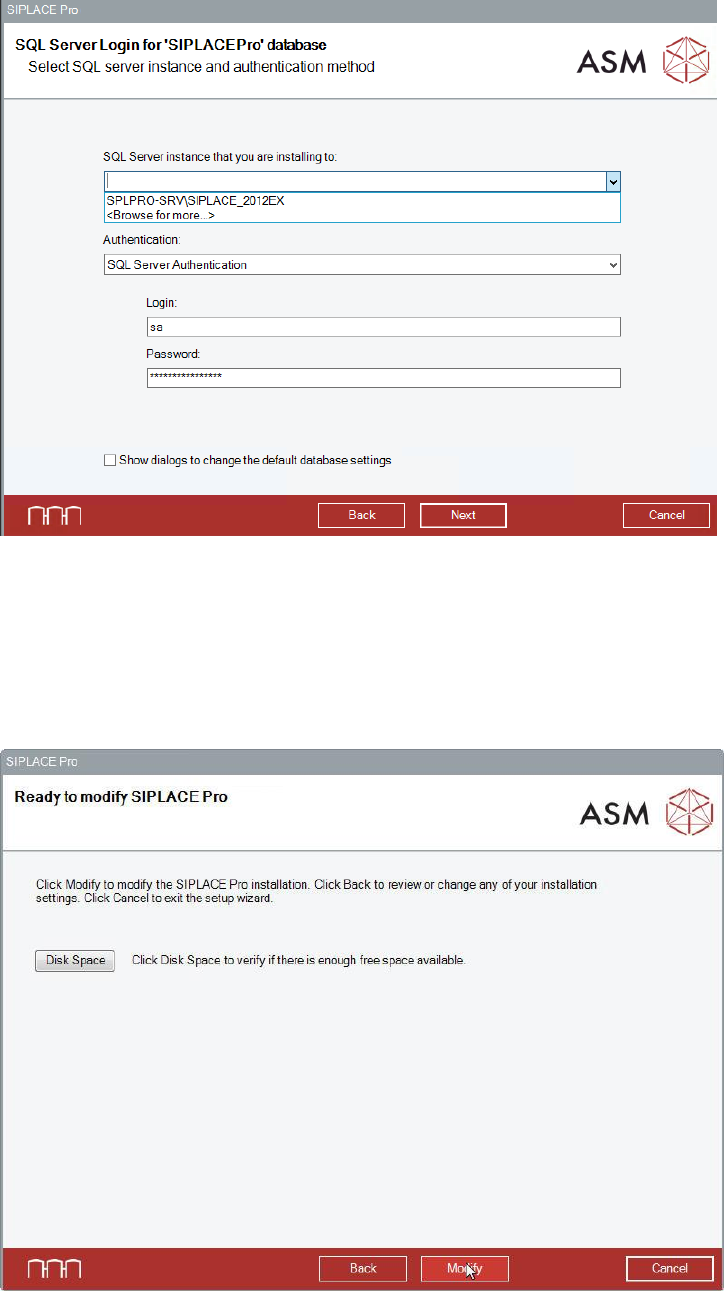

Figure 8-5: Selecting database server and authentication method
► If applicable, make the desired changes for the SQL server.
► If you want to change the default database settings, the Show dialogs to change the default
database settings option has to be enabled. Please refer to section 6.2.3 for more information.
► Click the Next button.
SIPLACE Pro is now ready to be modified. The following dialog is displayed.
Figure 8-6: Ready for modification
Before starting the modification, you can check the available, required and recommended disk
space (per drive) to perform the installation.
SIPLACE Pro 17.0 (R19-2) / Installation Manual 11/2019 Edition
58
► Click the Disk Space button. Please refer to Figure 6-11ff for more information.
► Click the Modify button to start modifying the installation.
If User Account Control is enabled on Windows 7 or newer, the following dialog is additionally
displayed before the installation starts.
Figure 8-7: User Account Control
► Click the Yes button to allow modifying the installation.
During modifying, the setup status is displayed.
► After completed modification, click the OK button to exit the setup wizard.
The line computer has to be restarted for the changes to take effect.
