Encapsulation is always used when a particularly

high level of protection is needed. Thanks to the

volumetric applicators, it is ensured that exactly the

same amount of material is always supplied in the

correct mixing ratio, independent of temperature and

pressure fluctuations.

Underlls increase the mechanical stability between

the chip and the circuit board and distribute locally

occurring voltages over a larger area, which signif-

icantly increases the service life. For this purpose,

a low-viscosity material is applied along the edge

region of the chip, which then independently lls the

gap between the chip and the circuit board using the

capillary effect.

Due to the constant miniaturisation in electronics, less

and less surface is available for heat dissipation. This

makes it all the more important to have an optimal

passage between the heat sink and the component.

Liquid heat-transfer media can be adapted to the

individual contours better than xed pads or foils and

ensure a safe heat dissipation, which signicantly

increases the service life of the components.

Are you looking for a partner who can offer you a

complete solution for your coating and dispens-

ing process? Then you‘ve come to the right place!

Thanks to versatile applicators and conveyor units,

we are standing ready to meet many requirements

with our standard applications. We are also prepared

to tackle new challenges and to implement them for

you in a series-production process.

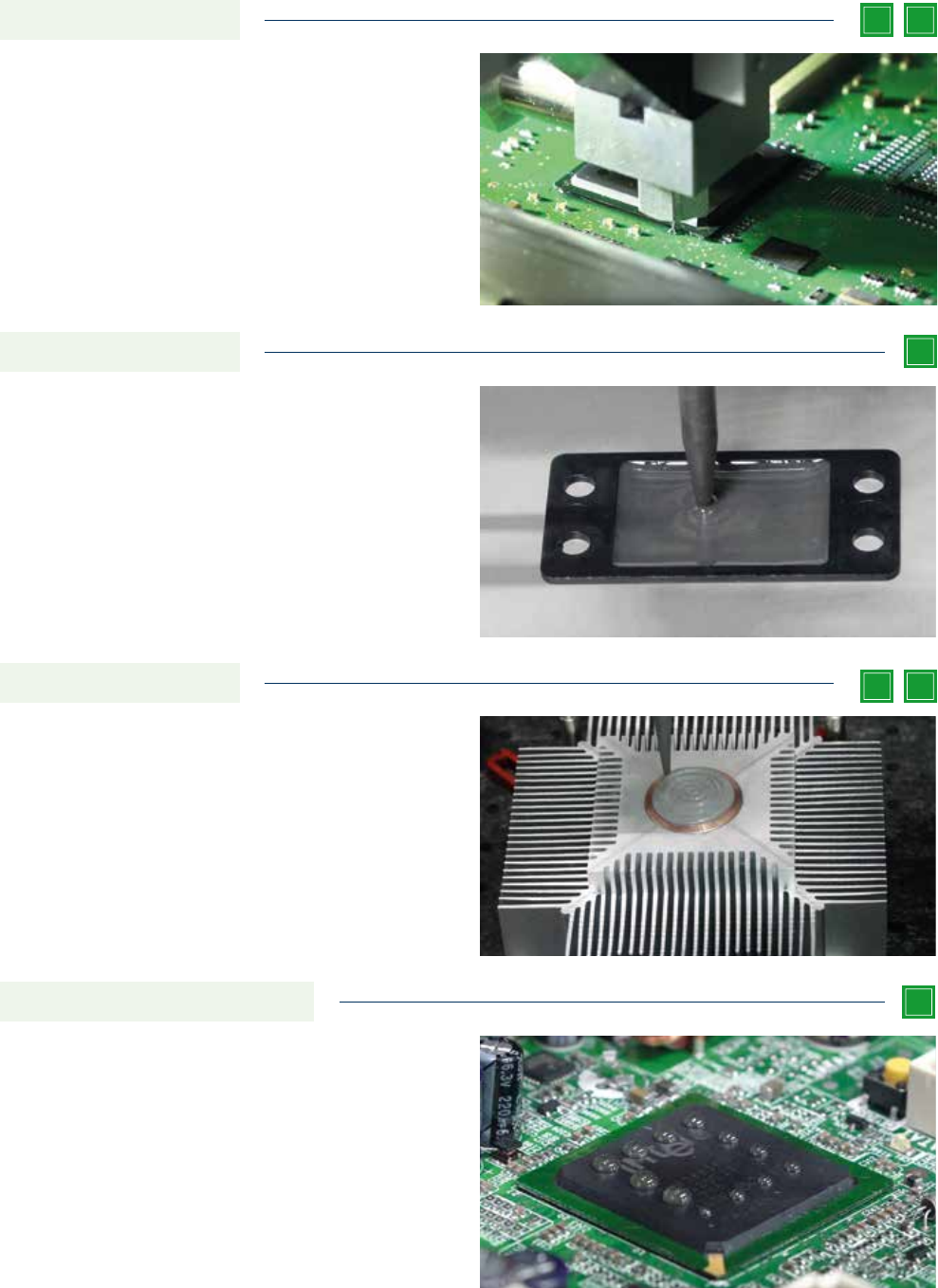

2K Encapsulation

Flip Chip Underll

Heat dissipation

Individual requirements

XP XC

Intuitive and easy-to-use controls make the VICON Protecto the ideal software solution.

Smart software for

efcient processes

With ViCON, Rehm offers the optimal software solution for its systems – ECAD data import

possible with ProtectoXP and ProtectoXC

A variety of analysis tools, more productivity, efciency, flexible working and the highest

quality: With ViCON, Rehm Thermal Systems has designed and created software that

meets all the requirements of modern, networked, and above all, future-orientated elec-

tronics manufacturing. Alongside the use of touch operating elements and gestures, the

new organisation of menu options and control panels, the core feature of ViCON software’s

development lies in the option of accessing the software from a variety of devices. The

ProtectoXP and ProtectoXC dispensing systems are equipped with the ViCON Protecto

system software and have numerous features for easy program creation for reproducible

coating results.

Following the successful introduction of ViCON for Rehm’s

reflow convection soldering systems, the software has

now been specially adapted to the requirements of the

ProtectoXP and ProtectoXC dispensing systems. The main

feature of ViCON Protecto is the option of importing ECAD

data and image les directly and optimising ECAD data for

the coating process by cutting. The integrated camera also

enables stitching: A complete image of the printed circuit

board can be created and further processed from several

individual images. While the program is being created, the

user is supported by a wizard that shows the user all current

progress by means of colour-coded pointers, and thus easily

facilitates usability.

After selecting an applicator, users can access a coating

database via ViCON Protecto that has been lled by the

application specialists of Rehm Thermal Systems and

contains all the important coatings with their parameters.

ViCON Protecto enables programs to be created offline,

which can be used simultaneously with the current produc-

tion process. With the camera integrated into the Protecto

coating systems, ViCON software can be used to read both

ducials as well as (data matrix) codes (DMC).

The objective of ViCON Protecto is to congure the system’s

current operating status clearly. The operator can react

quickly and intuitively to status and alarm messages. At the

same time, access rights, views and favourites are tailored

to each user. The specications of ViCON Protecto are

based on the basic elements of ViCON, which have already

performed impressively in the convection soldering systems

of the Vision series. Thanks to colour coding, the operator

can also easily identify and assign the status of the display

from a greater distance. ViCON software is also consistently

designed to accommodate multiple languages. The simplic-

ity with which you can switch “on the fly” to the preferred

language simplies worldwide remote access to other Rehm

systems and operating in an international environment.

Alarm messages can be clearly viewed, interpreted, edited

and processed at the top of the screen – the relevance of

the alarms is displayed in different colours. To control the

system individually, the operator can individually create a

favourites bar, that includes relevant and necessary param-

eters and control elements. These then appear on the main

screen and at a denite point on each page.

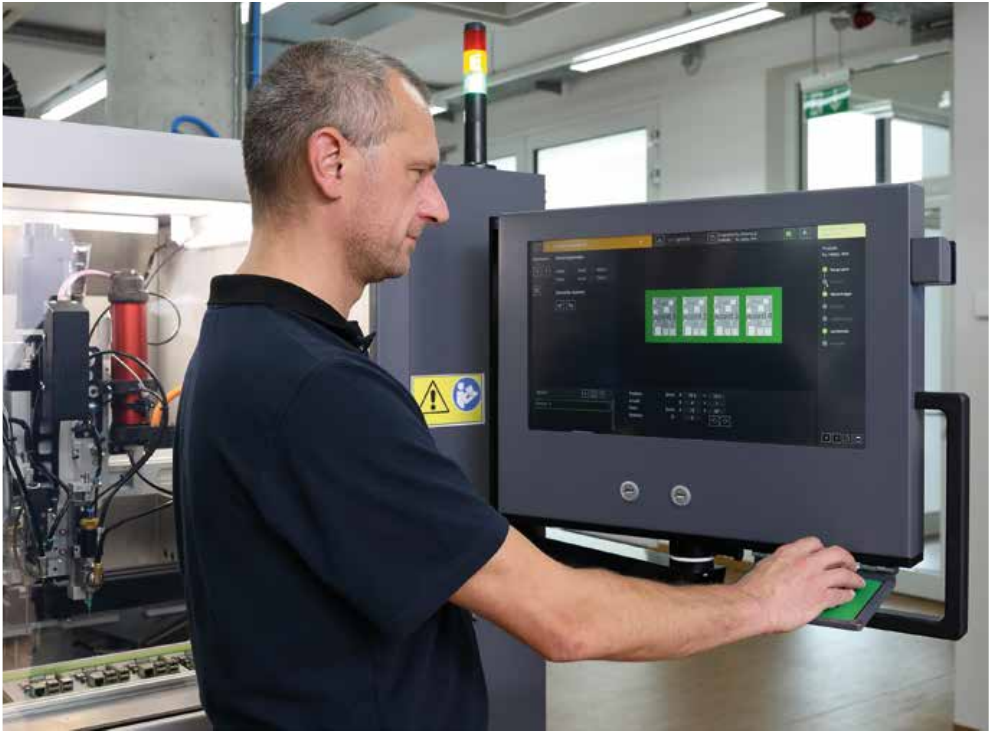

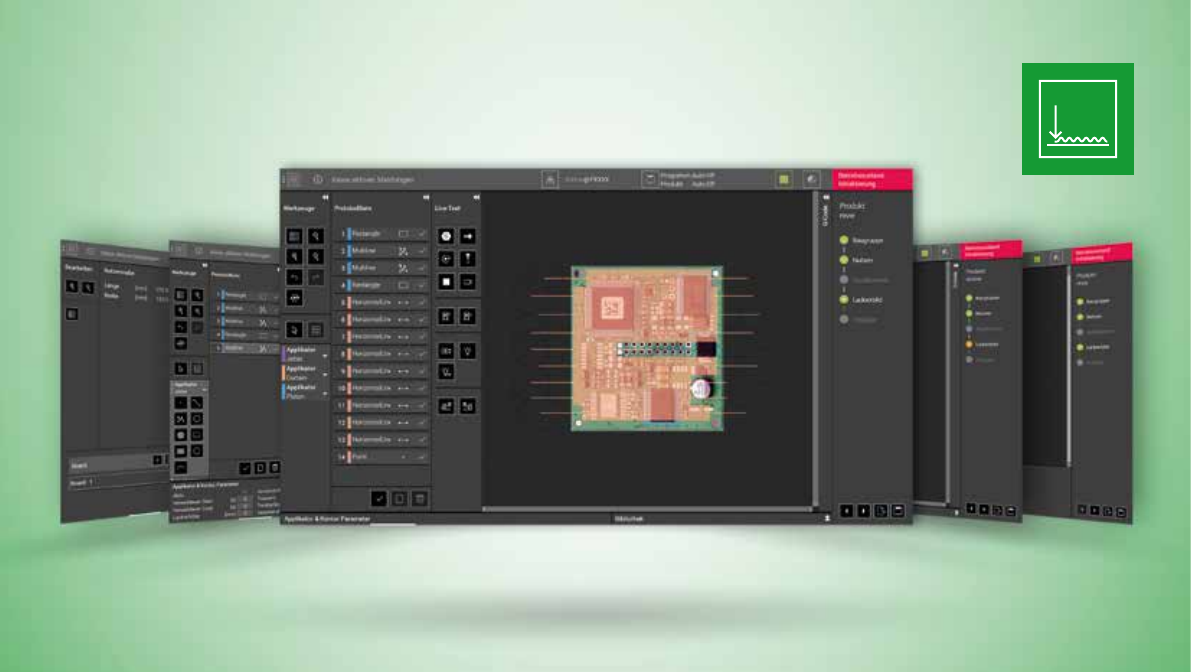

The ViCON Protecto enables guided coating program creation by using a wizard.
