Protective lacquer coating

with a focus on what matters most

The upper surface of a plant’s leaves is its outermost defence, not only protecting it against

pests and water loss, but also helping shake off dirt or increase resistance. This is a particu-

larly well-known characteristic of the lotus ower: Water just drips right off its leaves. This

was the biological inspiration behind innovative, self-cleaning surface coatings with what is

known as the “lotus effect”.

The protective lacquer coating on electronic units acts in a similar way. Our coating sys-

tems ProtectoXP and ProtectoXC protect sensitive components so that aggressive envi-

ronmental influences such as moisture, corrosion, chemicals, dust or vibration simply drip

off. High-selectivity conformal coating is the key to ensuring electronics work reliably and

is indispensable in modern manufacturing. The use of protective lacquer coatings makes

perfect sense for conserving the functionality of circuit boards over a long period. Fields

of application range from offshore wind farms through shipbuilding, military hardware,

telecommunications, medical technology, industrial control and automotive systems to

electronics in private households.

Conformal

Coating

Optimum coating processes

even for small batches

ProtectoXP

Lift station

Manual work station

Test station

Turning station

Removal conveyor

Lacquer prole inspection Lift station

RDS drying system

Underfloor return transport

ProtectoXP

Full power for your turnkey solution

› Greatest possible process reliability

› Flexible lacquering options thanks to a wide

range of options

› Highly selective coating

ProtectoXC

Perfect performance - even at

small lot sizes

› Reliable coating process

›

Compact unit for easy integration

› Optimum process documentation

The Protecto series at a glance

Strong in the process – the coating systems from Rehm

Would you like to combine optimal coating solutions and reliable drying methods in your manufacturing

process? Are you looking for a high-performance facility that can be smoothly integrated into small produc-

tion spaces, perfectly suited for coating small batches and requiring only manageable investment costs? The

coating systems from Rehm impress with their process reliability - for large and small lot sizes. Our conformal

coating concept consists of the Protecto coating unit and an RDS coating dryer, including handling based on

customer specication.

The ProtectoXC can also be integrated into an SMT line, but without underground return transport.

Safe and accurate to the result

material application

Protecto meets your requirements for the highest quality,

stability and productivity in automatic inline coating services.

With up to 4 coating applicators, you can synchronise sev-

eral modules simultaneously in master-slave mode to apply

the coating or directly apply with up to 4 different materials

without set-up time.

At the heart of the Protecto is coating management working

in tandem with nozzle technology. Up to two coating appli-

cators can be used – with a wide range of possibilities. The

same nozzle can be used to switch between dispensing,

spraying and jetting procedures “on the fly”. Parts which are

high up or close together are easy to reach thanks to the slim

nozzle design with only 2.4 mm and a length of up to 100

mm. If necessary, parts can be flushed from below due to the

patented Vario Coat nozzle, ensuring that hidden ports.

All-in-One lacquering

The patented Stream-Coat

nozzles are compatible with all

conventional coatings, from low-viscosity to high-viscosity.

With Protecto coating systems you can carry out the various

selective application procedures of dispensing, spraying,

jetting and curtain coating (only XP) “on the fly”. An implicit

air nozzle precisely dispenses the coating and distributes it

with little splatter or mist. The homogeneous lm of coating

can, with the aid of the adjustable airstream, even be applied

under or behind adjacent component pins and in shadow

zones without the need to tilt the applicator.

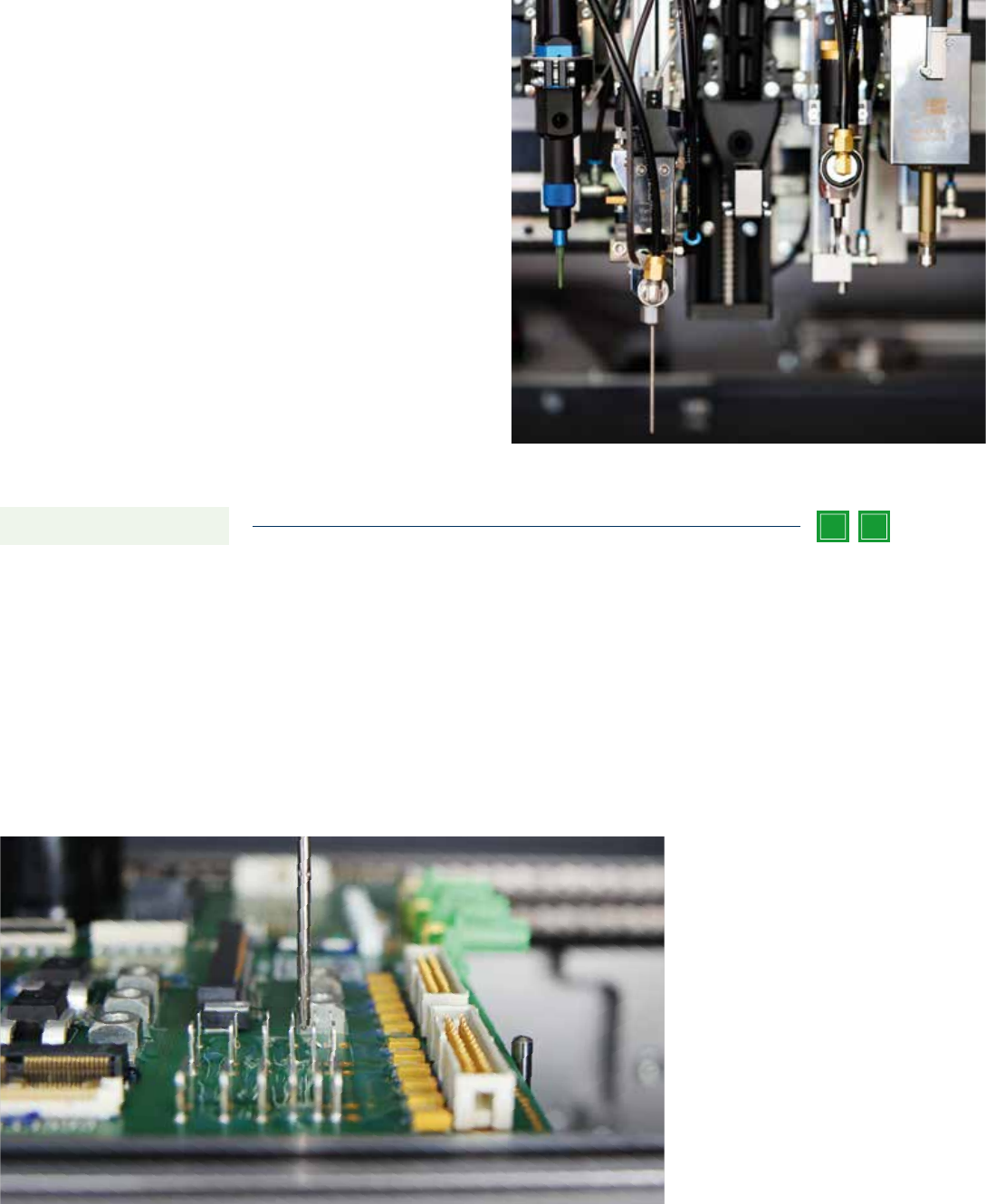

Precise coating of electronic

connections between tightly packed,

tall components

XP XC
