6 mm PCB thickness 2 Assembly instructio ns: 6 mm PCB thickness SIPLACE SX1 / SX2 06/2009 Edition 21 : Use a 10 mm hexagon socket sp anner to reduce the heig ht by approx. 2 mm. : Measure the height of the conveyor at at…
2 Assembly instructions: 6 mm PCB thickness SIPLACE SX1 / SX2 6 mm PCB thickness
06/2009 Edition
20
: Loosen the fixing bolts (hexagon socket spanner 6 mm).
2

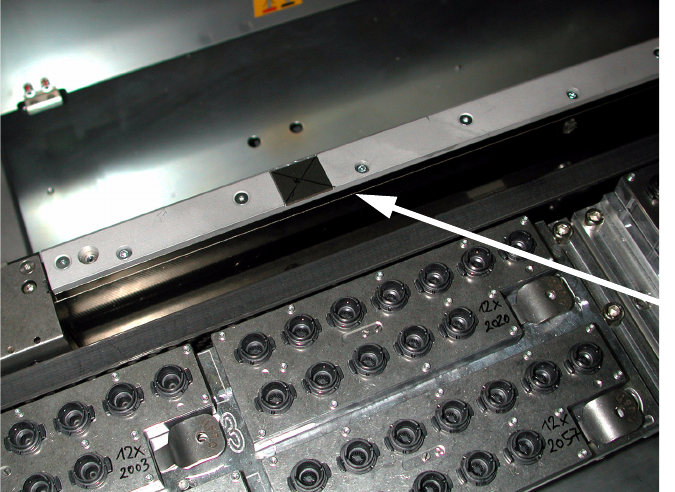

Fixing bolt
6 mm PCB thickness 2 Assembly instructions: 6 mm PCB thickness SIPLACE SX1 / SX2
06/2009 Edition
21
: Use a 10 mm hexagon socket spanner to reduce the height by approx. 2 mm.
: Measure the height of the conveyor at at least 4 points as shown in the picture on page 20. It
must now measure 178.8 +/-0.2 mm.
: Tighten the fixing bolt once more.
2
: Remove the clamping rail and stopper.
2
2
2
2
2
2
2
2

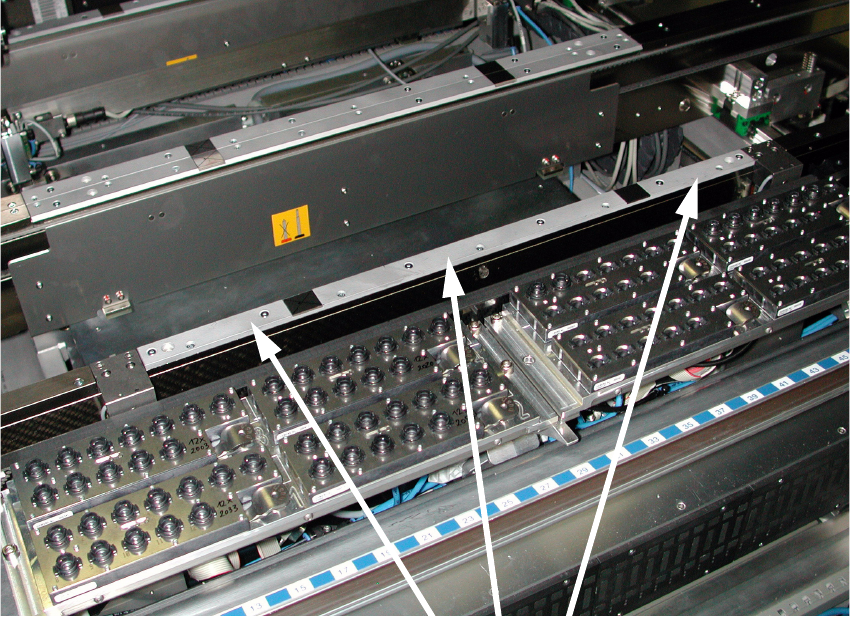

Clamping rails
2 Assembly instructions: 6 mm PCB thickness SIPLACE SX1 / SX2 6 mm PCB thickness
06/2009 Edition
22
: Remove the clamping rail in the placement area on all conveyor rails using a size 2 hexagon
socket spanner.
2
2
: Insert the 460 mm and 519 mm spacer bars between the relevant clamping and guide rails,
and tighten the bolts once more.
2
2
2
2
2
2
2
2
2
2
2
2
2
Separate the upper
clamping rail from
the lower clamping
rail 2
