Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer Nachrüstanleitung/Retrofitting Instructions Ausgabe/Edition 03/97 Seite/Page 34 von/of 44 1.5.1.3 Gantry 2 (Siplace 80S15) • Dismantle the control unit. • Push conn…
Nachrüstanleitung/Retrofitting Instructions Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer
Ausgabe/Edition 03/97
Seite/Page 33 von/of 44
1.5.1.1 Laying the cables and compressed air hoses

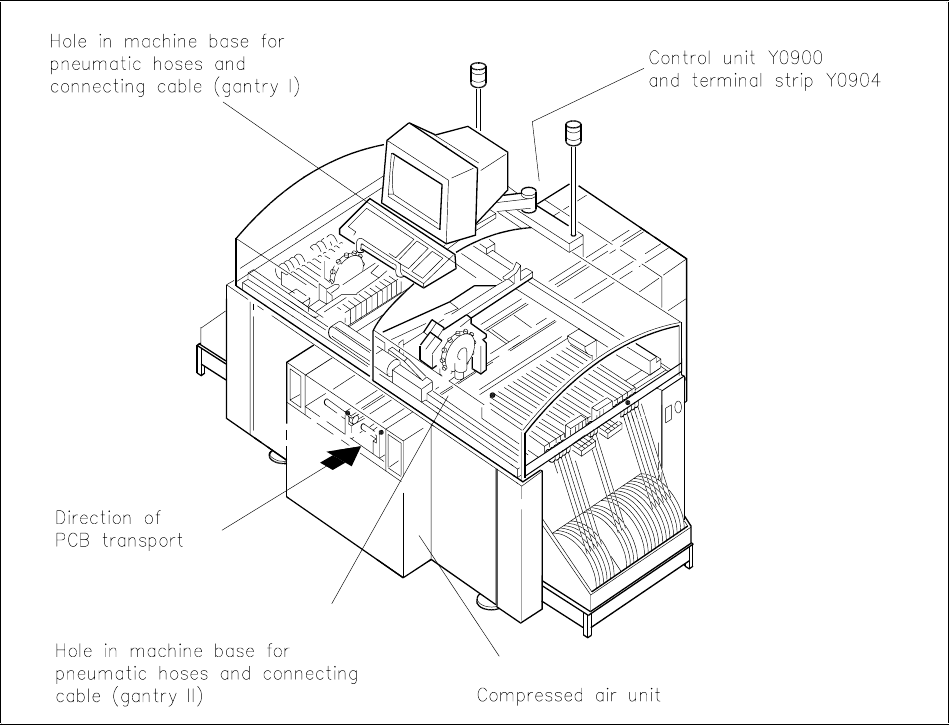

Figure 5: Creating the connections
1.5.1.2 Gantry 1 (Siplace 80S15/F3)
• Dismantle the control unit.
• Push the connecting cable Y0553-W1 through the hole in the machine frame to terminal panel Y0904
(see figure 5).
• Push the compressed air hose through the hole in the machine frame and into the machine.
• Using a suitable tool (e.g. a rod), pull the compressed air hose through the inside of the machine to the
compressed air unit.
• Tie the cable and compressed air hose together with cable lacing.
Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer Nachrüstanleitung/Retrofitting Instructions
Ausgabe/Edition 03/97
Seite/Page 34 von/of 44
1.5.1.3 Gantry 2 (Siplace 80S15)
• Dismantle the control unit.
• Push connecting cable Y0553-W2 through the hole in the machine frame to the compressed air unit
(see figure 5).
• Using a suitable tool (e.g. a rod), pull the connecting cable Y0553-W2 from the compressed air unit,
through the machine frame to the terminal panel Y0904.
• Push the compressed air hose through the hole in the machine frame to the compressed air unit.
• Tie the cable and compressed air hose together with cable lacing.
1.5.1.4 Electrical connections
• Guide the connecting cable Y0553-W1 or Y0553-W2 through the cable duct into the terminal panel
Y0904.
• Connect terminal Y0553-W1 or Y0553-W2 on the nozzle changer to the terminal panel Y0904 as
shown in the following terminal diagrams (figures 6 and 7).
• Please note that there are differences between the Siplace 80S15 and 80F3.

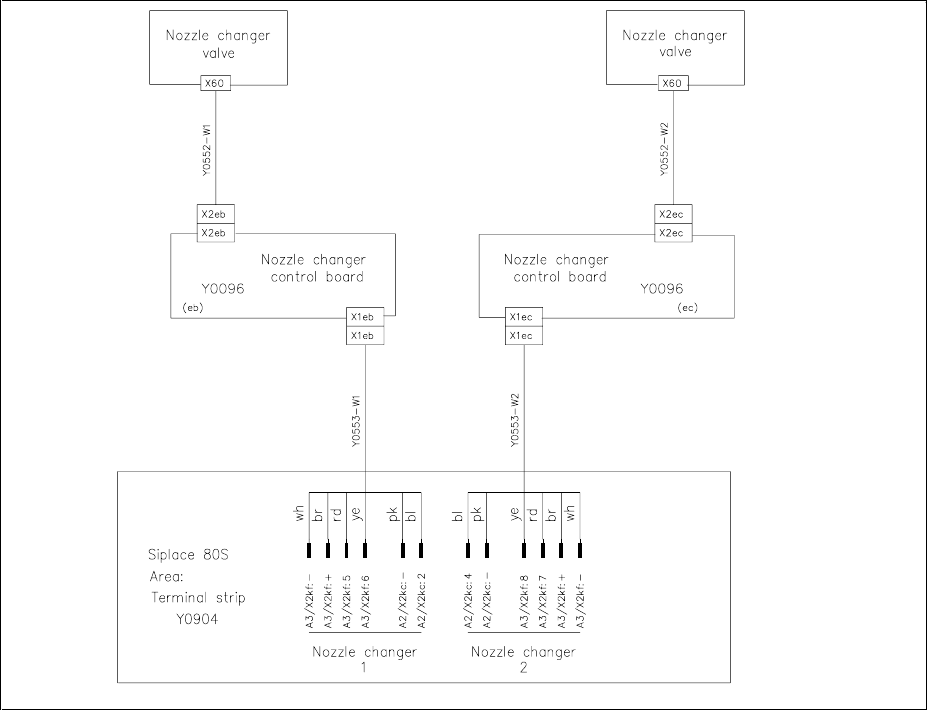

Figure 6: Connecting the power cable of the revolver head nozzle changer to the Siplace 80S15
Nachrüstanleitung/Retrofitting Instructions Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer
Ausgabe/Edition 03/97
Seite/Page 35 von/of 44

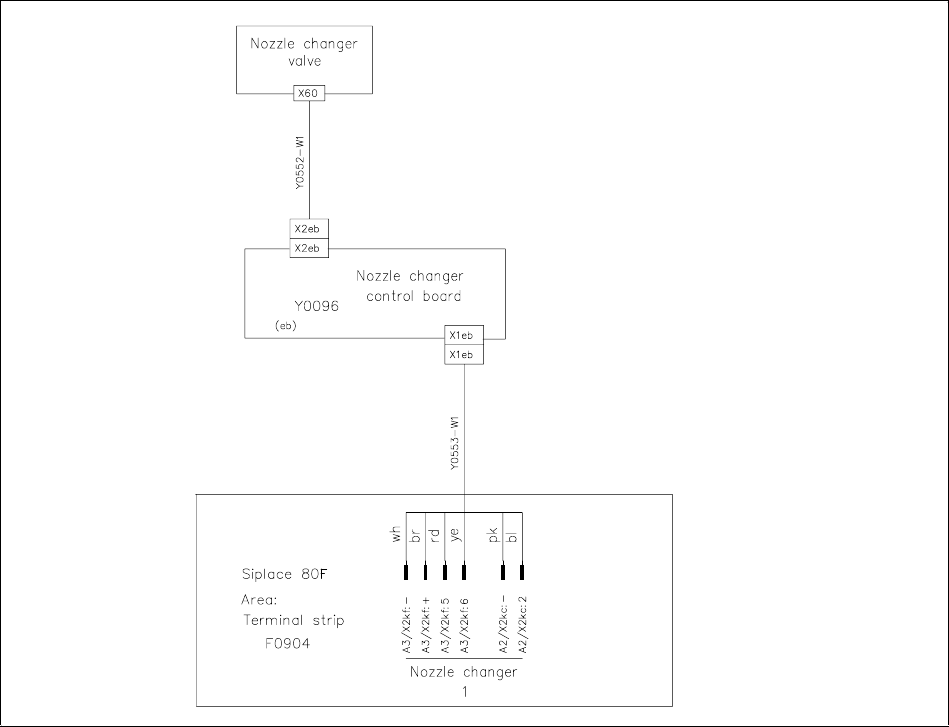

Figure 7: Connecting the power cable of the revolver head nozzle changer to the Siplace 80F3
