Nachrüstanleitung/Retrofitting Instructions Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer Ausgabe/Edition 03/97 Seite/Page 37 von/of 44 1.5.2 Fitting the Siplace 80S20/F4 Figure 9: Side view of the support hold…
Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer Nachrüstanleitung/Retrofitting Instructions
Ausgabe/Edition 03/97
Seite/Page 36 von/of 44
1.5.1.5 Connecting the compressed air supply
Figure 8: Connecting the revolver head nozzle changer to the compressed air unit
• Attach the connector PK-3 to the free compressed air connection on the back of the compressed air
unit (Siplace 80S15/F3 ⇒ 5.6 bar; Siplace 80S20/F4 ⇒ 5.1 bar).
• Attach the compressed air hose from the nozzle changer valve to this connector.
1.5.1.6 Commissioning
• The procedure for commissioning the nozzle changer is described in section 1.6.
Nachrüstanleitung/Retrofitting Instructions Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer
Ausgabe/Edition 03/97
Seite/Page 37 von/of 44
1.5.2 Fitting the Siplace 80S20/F4

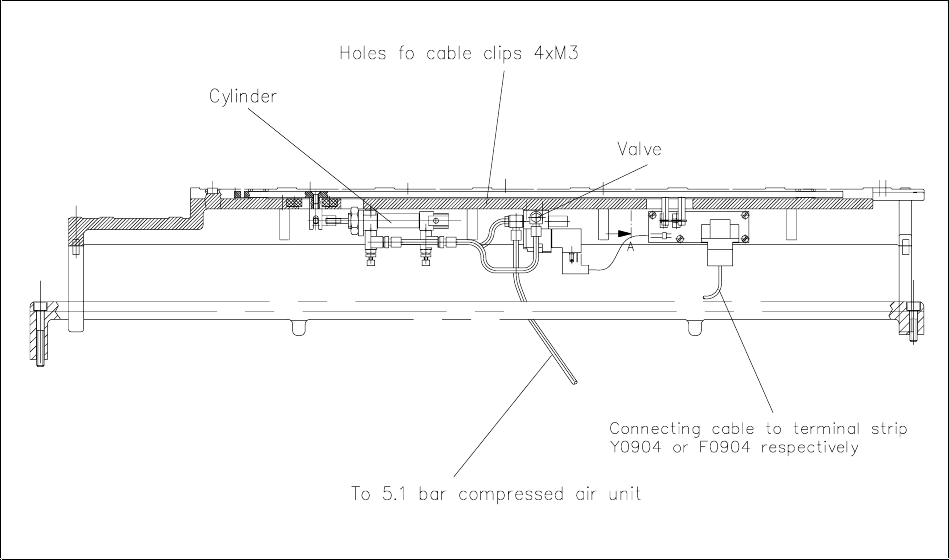

Figure 9: Side view of the support holder with nozzle changer
Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer Nachrüstanleitung/Retrofitting Instructions
Ausgabe/Edition 03/97
Seite/Page 38 von/of 44
Figure 10: Connections on the revolver head nozzle changer
• Remove the feeders from the components table on the relevant side of the machine.
• Attach the compressed air supply to the nozzle changer valve.
• Attach the connecting cable Y0553-W2 or Y0553-W1 to the nozzle changer control board
(see figure 10).
