Nachrüstanleitung/Retrofitting Instructions Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer
Ausgabe/Edition 03/97
Seite/Page 41 von/of 44

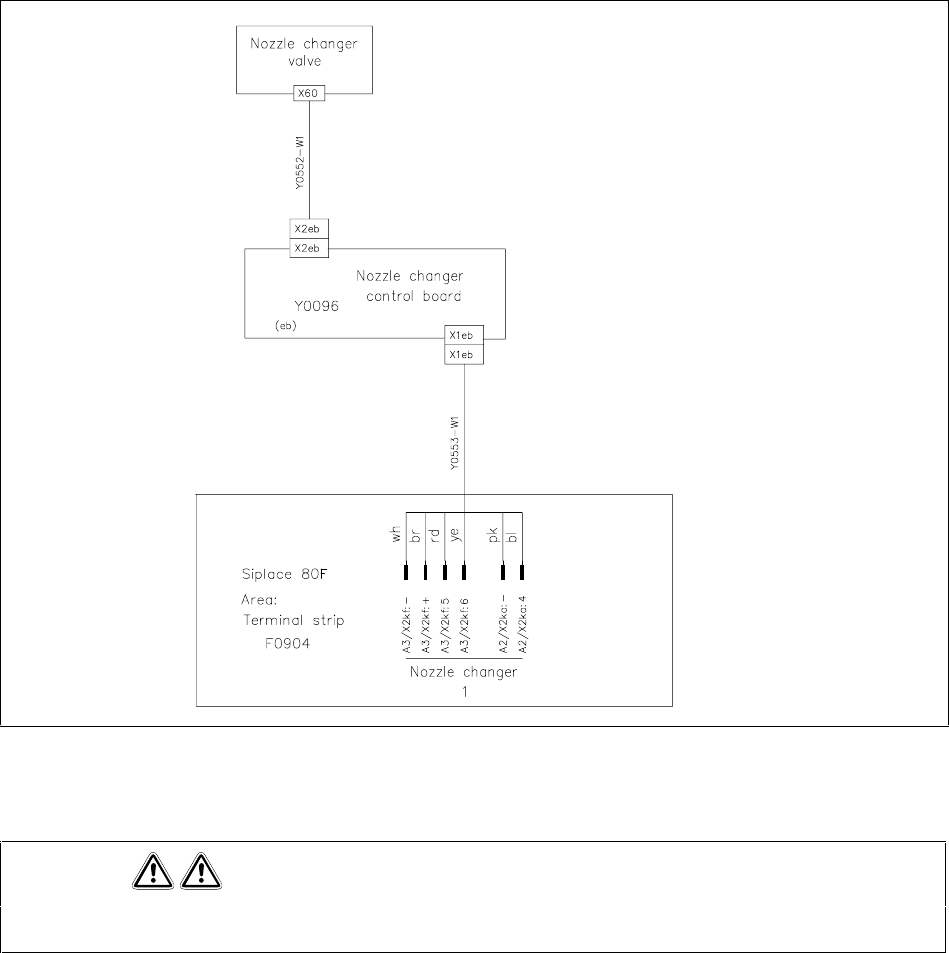

Figure 13: Connecting the power cable of the revolver head nozzle changer to the Siplace 80F4
Please note
The cable Y0552-W1/W2 is supplied pre-installed and connected up.
1.5.2.3 Connecting the compressed air supply
• The procedure is described in section 1.5.1.5.
Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer Nachrüstanleitung/Retrofitting Instructions
Ausgabe/Edition 03/97
Seite/Page 42 von/of 44
1.5.2.4 Commissioning
• Check your station and line software versions against the software requirements.
• If necessary, install the station and line software required.
• Use the station editor on the line computer to configure the nozzle changer.
• In the station editor, assign the nozzle types used to the individual magazines.
• Determine the size of the nozzle changer using the SITEST Siplace testing program, as described in
the SITEST operating instructions.
1.6 Notes on use
• Before filling a magazine with a certain type of nozzle for the first time, attach an adhesive label
designating the nozzle type concerned to the magazine.
Please note
Each magazine can only contain ONE type of nozzle.
Remove the magazines from the machine before filling and only replace full magazines.
• Open the key plate and insert the nozzles into the nozzle holders.
• Close the key plate so that the nozzles cannot fall out of the magazine.
• Do not fill the magazines until all the nozzles on the revolver head have been returned to the
magazine.
• The various functions of the nozzle changer are described in the “Single functions” chapter of the
User's manual.
• See the UNIX line computer operating instructions for information on programming the nozzle changer
on the line computer.
Please note
Do not allow components to fall onto the magazines since this could cause the key plate to jam.
Do not allow components to fall onto free magazine slots since this could prevent the magazines being
placed correctly in the slots.
Regularly remove any components from the magazines and free slots.
Nachrüstanleitung/Retrofitting Instructions Pipettenwechsler Siplace 80S15/F3/S20/F4 Nozzle Changer
Ausgabe/Edition 03/97
Seite/Page 43 von/of 44
1.7 Important notes on the nozzle changer
− There is no 2.5 bar compressed air connection on component placement systems from the Siplace
80S15/F3 generation, which are already equipped with a nozzle changer and now have the improved
version with function key 03. Consequently, a blanking plug must be fitted to the compressed air hose.
− Nozzle 617 must be replaced with the new nozzle 617, item no. 315267-02. The color code of the
new nozzle is now pink.
− During long stoppages, e.g. works holidays, ensure that all the nozzles have been stored in the
magazine. If this is not done, faults may occur during automatic nozzle changes when production
restarts. This is caused by the “flexing” of the O-ring, which requires a higher withdrawal force when
the nozzle is set down.
− The key plate is no longer available as a spare part. Only the complete magazine can be ordered.
1.7.1 Notes on the SITEST
− When calibrating the nozzle changer, ensure that you also measure the height of the reject position
and the height of the individual magazines.
