Foot Ass' y NO. PART NO. PART NAME Q'TY TYPE REMARK 1 J7051009B BOLT-FOOT 4 J7051009B 2 J7051010B HOUSING-FOOT 4 J7051010B 3 J2100018 NUT-FOOT 4 0131-611026 4 J1300026 C-RING (SHAFT) 4 DIA22 5 J2101561 CUSHION-…

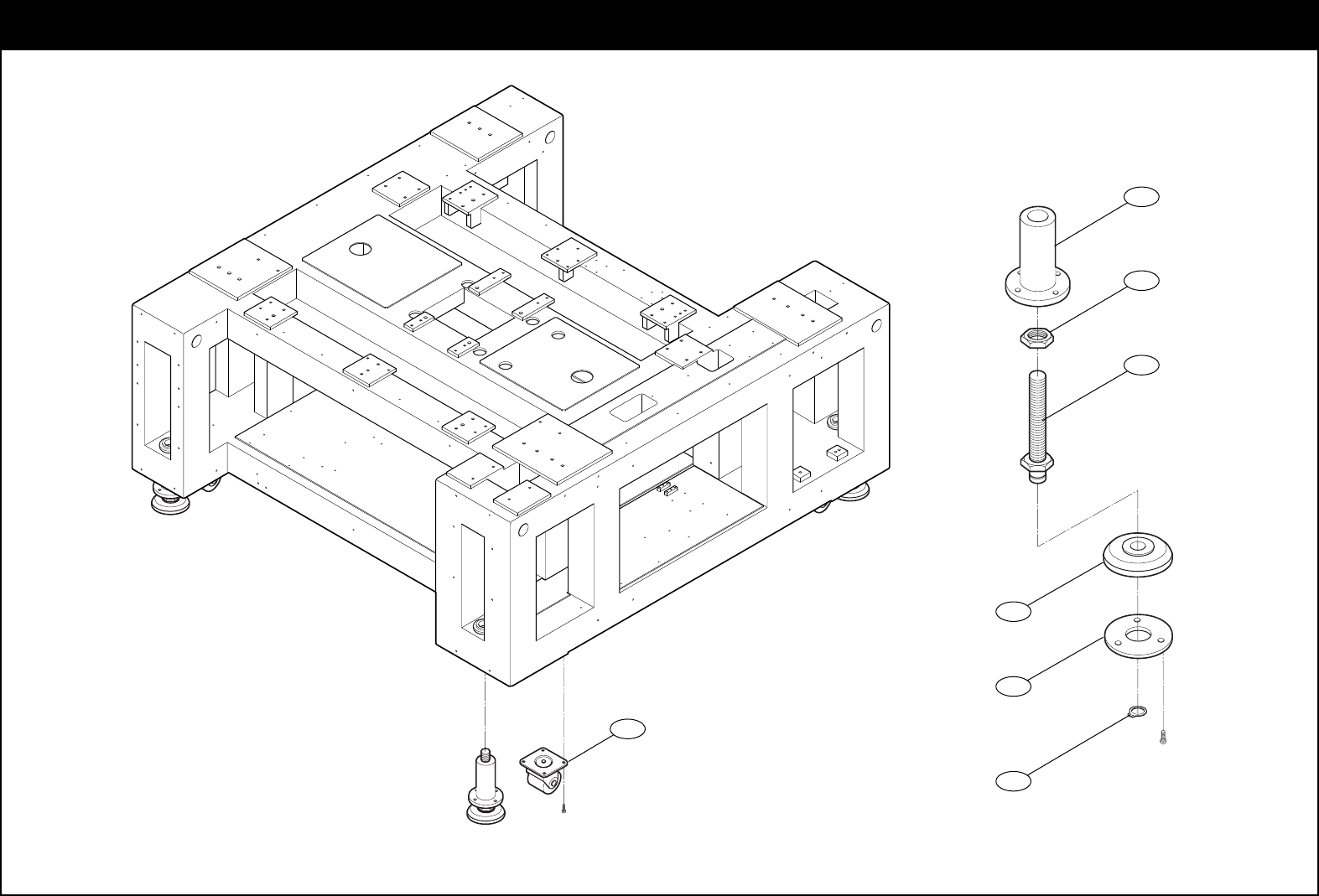

Foot Ass'y
- 19 -
7
2
3
1
6
5
4
Foot Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7051009B BOLT-FOOT
4
J7051009B
2
J7051010B HOUSING-FOOT
4
J7051010B
3 J2100018
NUT-FOOT
4
0131-611026
4 J1300026
C-RING (SHAFT)
4
DIA22
5 J2101561
CUSHION-FOOT
4
0131-611025-P1
6 J2101560
BASE-FOOT
4
0131-611022-P1
7 J6109001A
SWIVEL CASTER
4
HJ-65U-YN (MURATA)
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 20 -

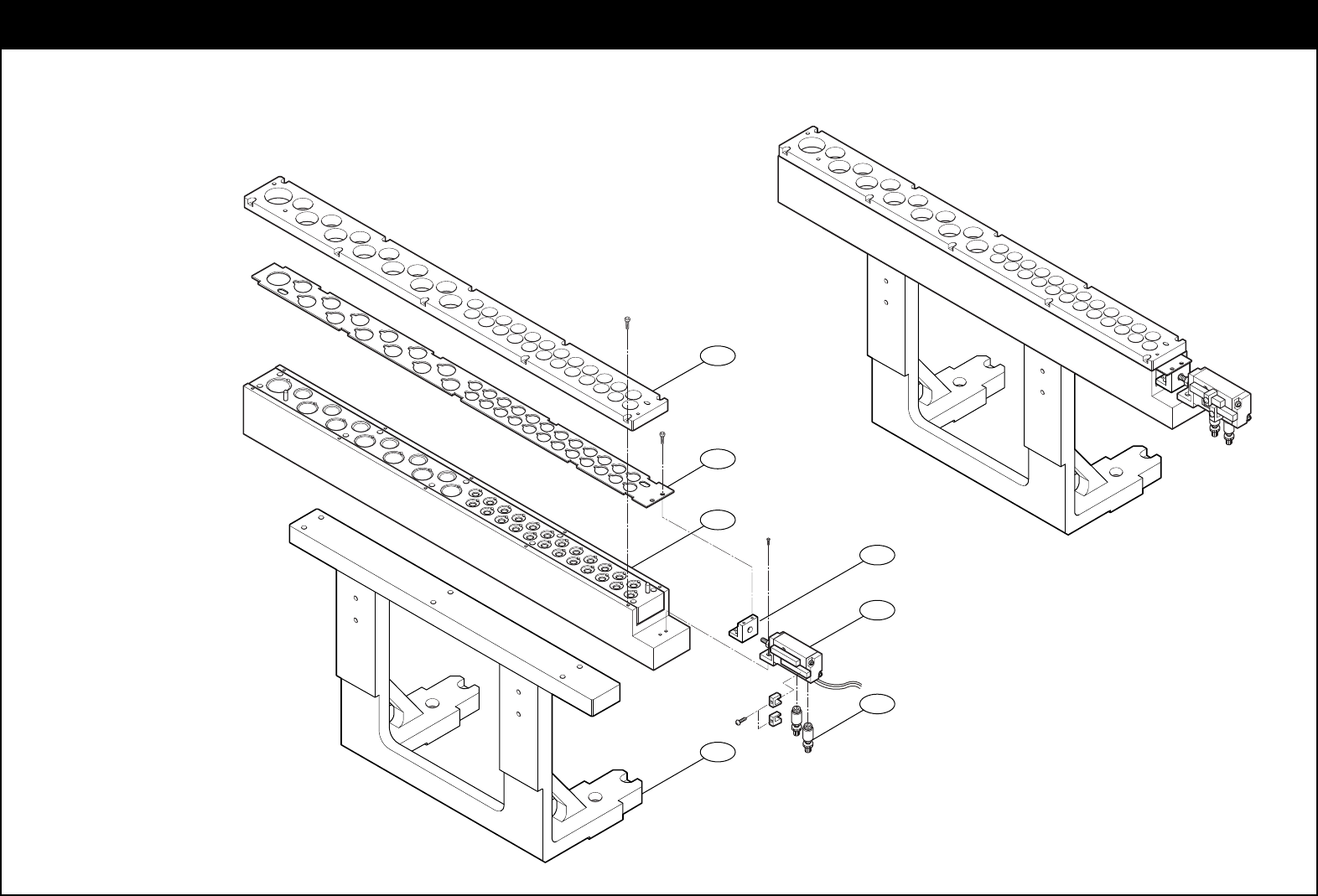

Fixed ANC Ass'y
