Bac kup T able Ass'y - 23 - 9 10 11 12 1 2 8 7 5 4 3 6
Fixed ANC Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1 J2101922
ANC SUPPORT 1
0140-671001-1M
2 J7156034D
MAIN BODY 1
J7156034D
3
4 J7156035B
NOZZLE SHUTTER 1
J7156035B
5 J7256015E
ANC PLATE 1
J7256015E
6 J7156043A
SHUTTER BRACKET 1
J7156043A
7
8
J6701029A CYLINDER 1 BDAS6*5-1A-ZC153A2
9
J6703028A SPEED CONTROLLER 2 SS4-M5MA
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
- 22 -

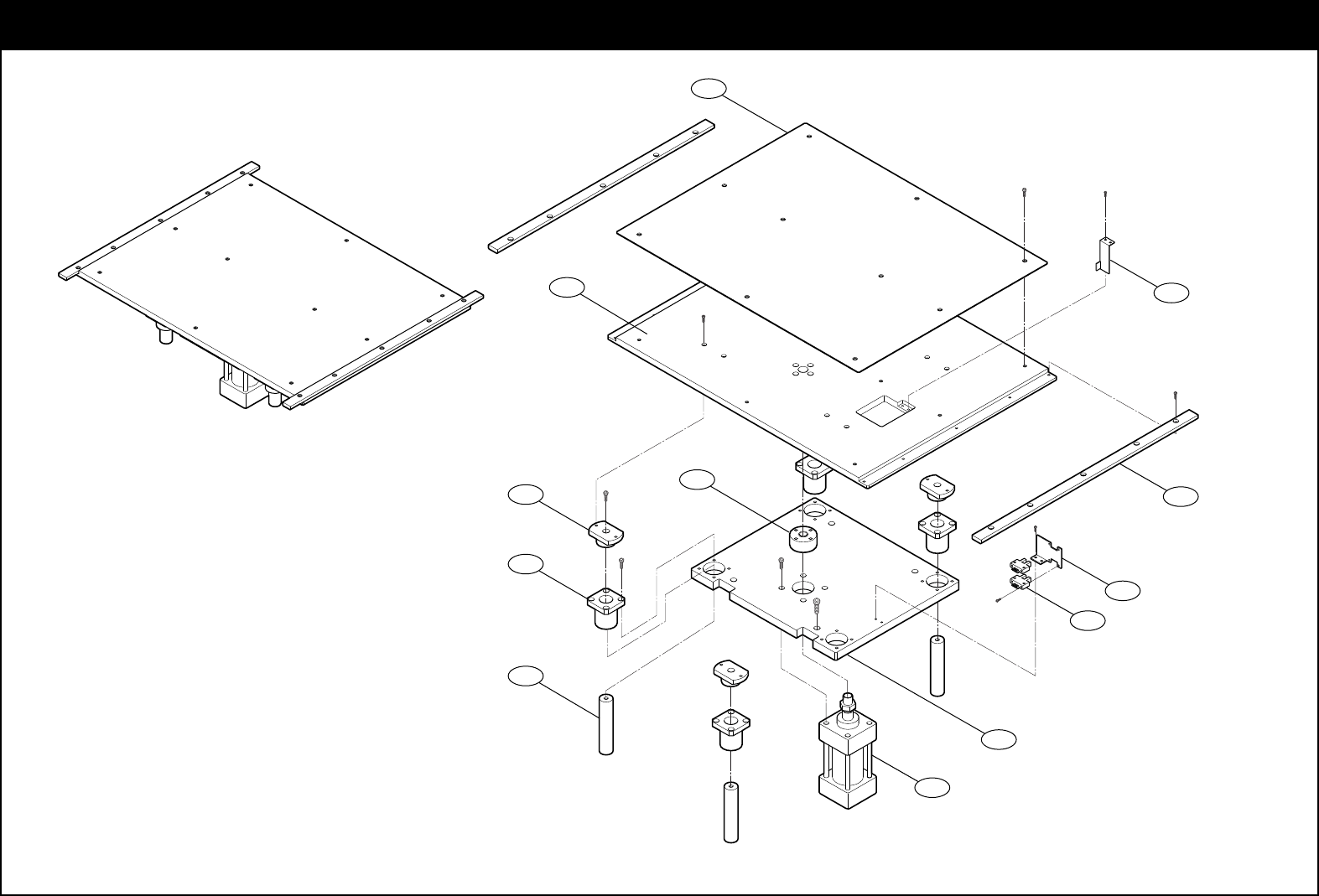

Backup Table Ass'y
- 23 -
9
10
11
12
1
2
8
7
5
4
3
6
Backup Table Ass'
y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J6701030A BUT CYLINDER 1 WDDA 40*30
2
J7053209A BACK UP BASE 1 0145-641027
For Front Side
J7053231A BACK UP BASE 1 J7053231A
For Rear Side
3
J7053235A GUIDE SHAFT 4 SF20g6+94L
4
J6601073A
BALL BUSH
4
LMK20UU
5
J7053131A SHAFT BRACKET 4 J7053131A
6
J7053211A ADJUST FLANGE 1 0145-641031
7
J7053274A BACK UP PLATE 1 J7053274A
For Front Side
J7053271B BACK UP PLATE
1
J7053271B For Rear Side
8
J7053273A TOP PLATE 1 J7053273A
For Front Side
J7053272A
TOP PLATE 1
J7053272A For Rear Side
9
J7053221B DOG-SENSOR 1 0145-641148
For Front Side
J7053221C DOG-SENSOR
1
J7053221C For Rear Side
10
J2101755 BACK UP BAR 2
0135-641029 For Front Side
J7053260B
BACK UP BAR 2
J7053260B For Rear Side
11
J7053220A BRACKET - SENSOR 1 0145-641147
12 J1301053
PHOTO SENSOR 2
EE-SX670A
13
14
15
16
17
18
19
20
21
22
