CP45FV Neo Electric Contr ol P ar t T able - 75 - CP45FV Neo Contr ol Rac k Block Dia gram .................................................................................................................................…
Stage Camera Ass'y
NO. PART NO. PART NAME Q'TY TYPE REMARK
1
J7159171C CAMERA STAND 20mm 1 J7159171C
2
J7159119A CAMERA HOLDER 1 J7159119A
3
J7159113A LIGHT GUIDE#2 2 J7159113A
4
J7159112A LIGHT GUIDE#1-1 1 J7159112A
5
J7159111A LIGHT GUIDE#1 1 J7159111A
6
J7159114B WIRE COVER 1 J7159114B
7
J7159115A LIGHT GUIDE BLOCK 1 J7159115A
8
J7159166D TUBE 20mm 1 J7159166D
9
J7159168C LED BLOCK 20mm 1 J7159168C
10
J7159121A LIGHT COVER 1 J7159121A
11
J7159123A SUPPORT COVER 1 J7159123A
12
J7159160C GLASS PRESS 1 J7159160C
13
J7259016A DIFFUSER 1 J7259016A
14
J7259017B REFLECTOR 4 J7259017B
15
J7259026A LED-PRESS 2 J7259026A
16
J6754004B COVER GLASS 1 J6754004B
17
J1300491 CCD CAMERA 1 SFA-410ED
18
J6739005A COSMICAR LENS 1 B2518
19
J1300965 CLOSE UP RING 1 T5
20
J1300983 CLOSE UP RING 1 T1 (PENTAX)
21
22
23
24
25
26
27
- 92 -

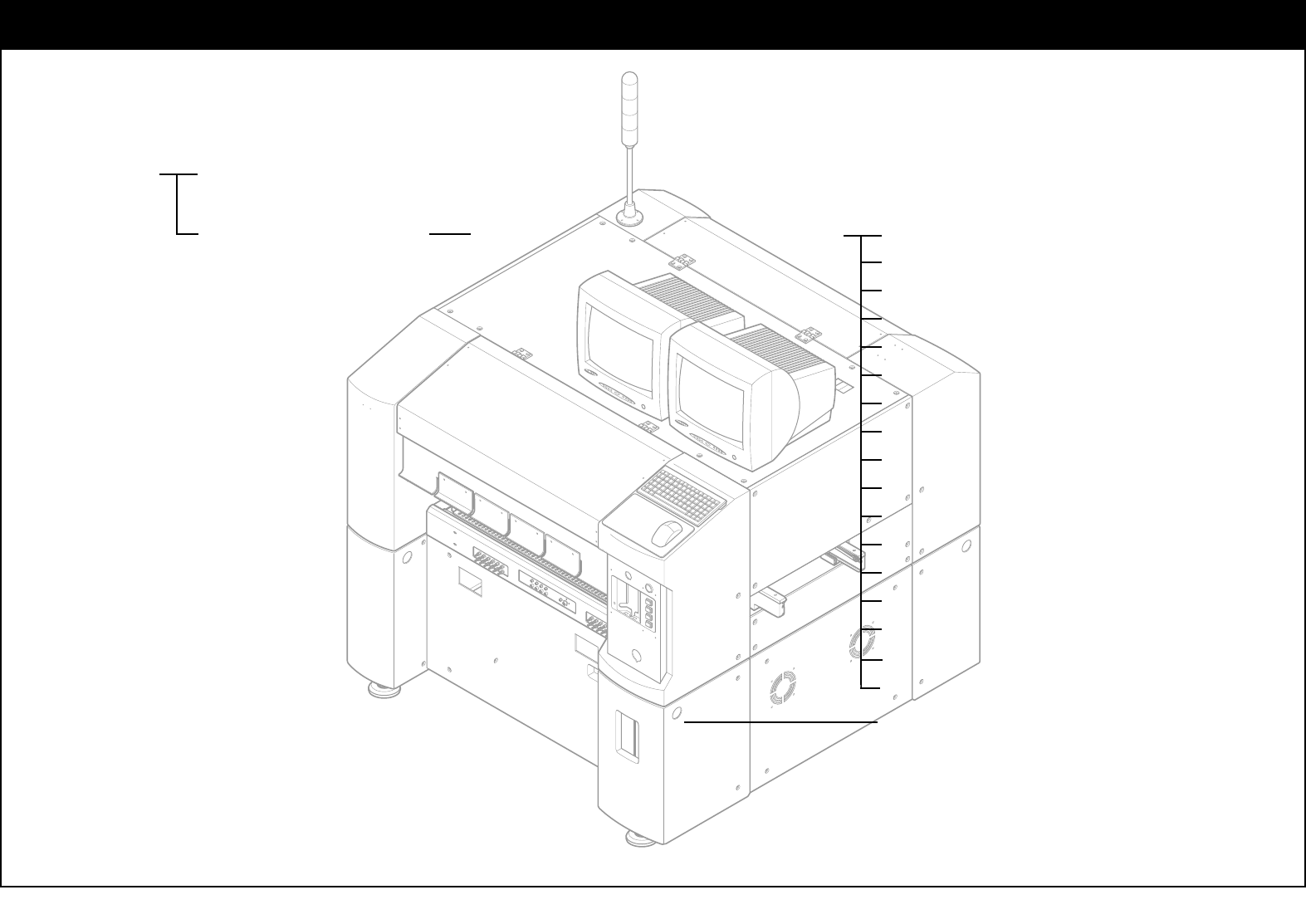

CP45FV Neo Electric Control Part Table
- 75 -
CP45FV Neo
Control Rack Block Diagram .......................................................................................................................................................93
Haness Assembly Part CAN Master And I/F Board Connection PC Mother Board Interface .................95
VME Console Interface ........................97
Feeder I/F Board Connection......99~102
Stage Illumination I/F Board..............104
Conveyor I/F Board......................106~110
Head Illumination Control Board ....113
Head I/F Board .............................115~117
Y-Sub I/F Board Interface ..................119
X-Sub I/F Board Interface ..................121
XY Motor Interface ..............................123
Swing/Width
Motor Interface ..............125
Z1/Z2 Motor Interface .........................127
Z3/Z4 Motor Interface .........................129
Z5/Z6 Motor Interface .........................131
R1/R2 Motor Interface ........................133
R3/R4 Motor Interface ........................135
R5/R6 Motor Interface ........................137
Power Block Diagram Electric Clrcult Interface ...................140
Page
( Page 94 )
( Page 139 )
- 93 -

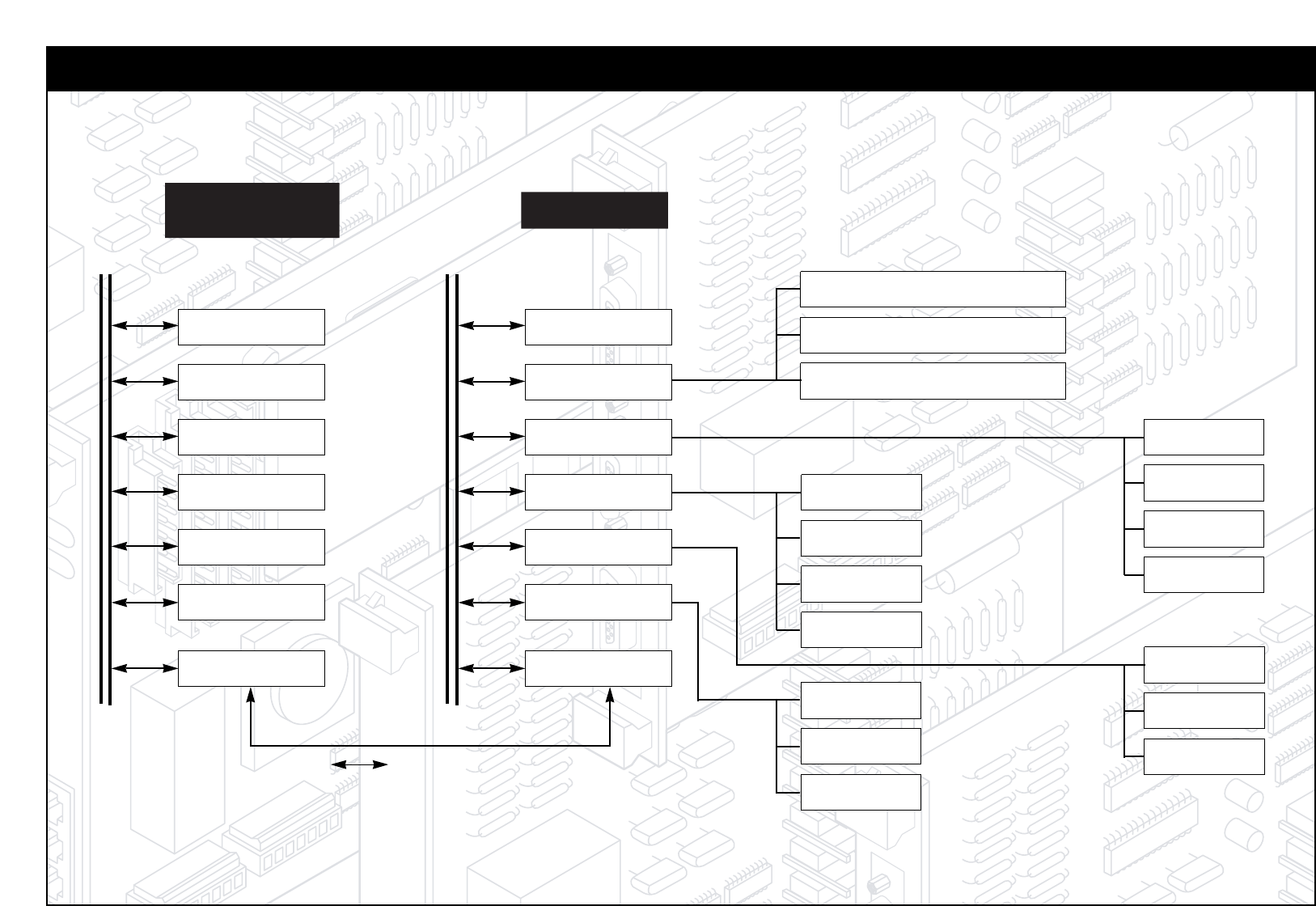

PC BUS
(MMI)
CPU(PENTIUM)
VGA I/F
HDD I/F
FDD I/F
COMM. PORT
PRINTER PORT
PC ISA I/F B/D
PC VME COMMUNICATION
VME BUS
CPU(68040)
FIDUCIAL CAMERA
STAGE CAMERA
FLYING CAMERA
X DRV
X DRV
X DRV
X DRV
Z1 DRV
Z2 DRV
R1/2 DRV
CV. DRV
Z3 DRV
Z4 DRV
R3/4 DRV
X DRV
X DRV
X DRV
VISION
XY AXIS
H1/2 AXIS
H3/4 AXIS
H5/6 AXIS
CAN MASTER
Electric Control Diagram
