4 Electrical Section
4-20
LED conditions
Board name
LED Color LED in operating status
D.POWER
CHARGING
Yello
w
Lights when the power is charged properly.
PHASE OK Green Lights when the power source is good.
TEMP OK Green
Lights when the temperature is normal.
(65 degrees Celsius or higher)
V.OVER Red Lights when motor control voltage is high.
V.LOW Red Lights when motor control voltage is low.
SERVO
GOOD Green Lights when the servo board is in good condition.
CHECK
Yello
w
Lights when the servo’s firmware works properly.
+24V
Yello
w
Lights when the power source of the mechanical brake is on.
IFC2
LED1 Green Lights when data is written properly.
LED2 Green Lights when the system works properly.
CDA2
COM0 Green Lights when the CN1 exchanges serial data properly.
COM1 Green Lights when the CN2 exchanges serial data properly.
COM2 Green Lights when the CN3 exchanges serial data properly.
COM3 Green Lights when the CN4 exchanges serial data properly.
COM4 Green Lights when the CN5 receives serial data properly.
COM5 Green Lights when the CN6 exchanges serial data properly.
COM6 Green Lights when the CN5 receives serial data properly.
COM7 Green Lights when the CN8 exchanges serial data properly.
PWR Green Lights when the mounter system works properly. (IC1)
PWR Green Lights when the mounter system works properly. (IC2)
VM8 LED1 Blue
Lights from the start of image capture to the end of data
transfer.
LED1 Red Lights when a fatal error such as hang-up occurs.
PWR Green Lights when the system works properly.
INT Red Lights when image processing process is interrupted.
PCI Green
Lights when exchanging data between the CPU and the
VM8.
CBP2 +5V Green
Lights when the power source +5V is in good condition.
( +4.5V to +5.6V)
+12V Green
Lights when the power source +12V is in good condition.
(+10.6V to +13.4V)
+24V Green
Lights when the power source +24V is in good condition.
(+21.5V to +26.7V)
These are visual check items when the mounter is turned on. To check the inside of the mounter,
be sure to turn off the mounter in advance.
Vacuum and dust the vent with a vacuum cleaner. (Do not use an air blower.)
4 Electrical Section
4-21
Control Board
Handling Control Board
Note the followings when handling PC boards.
Do not touch control boards by wet hands.
Do not handle control boards where there are metal chips around.

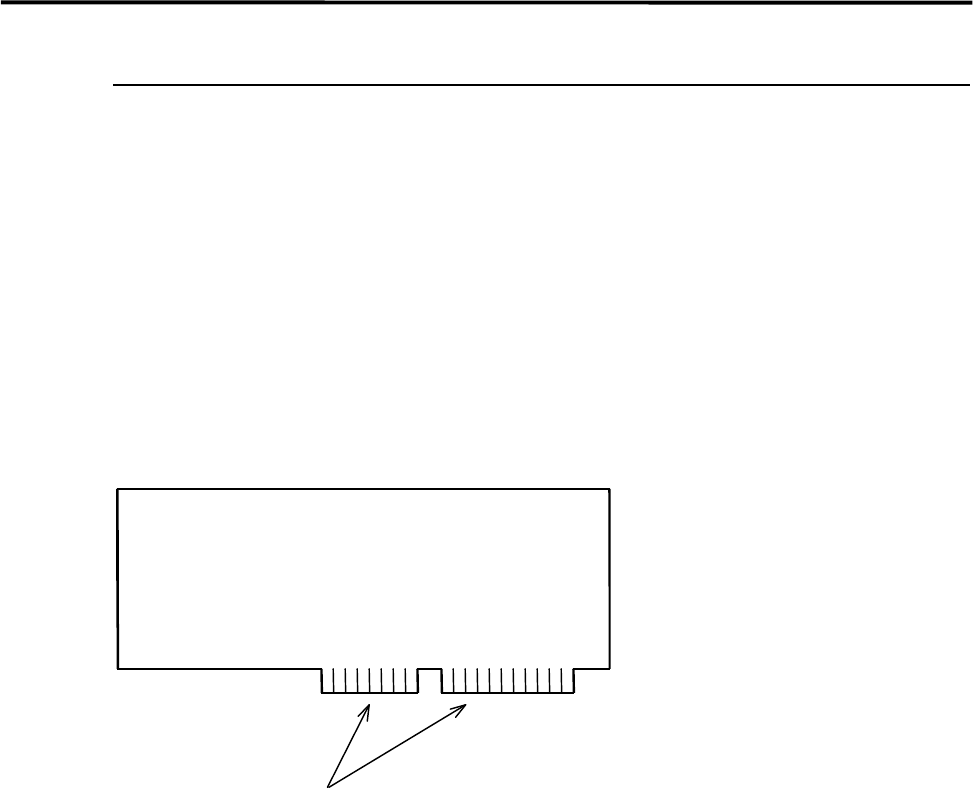

To handle control boards in the control rack, never touch the connecting portion where gold is plated. If
the connecting portion is covered with dust, the machine doesn't work properly. Clean with alcohol.
Gold Plating
4 Electrical Section
4-22
Floppy Disk and Disk Drive (Option)
Handling Floppy Disk
Floppy disks are used to store the operation data of the mounter. When handling floppy disks, the following
precautions must be taken.
■ Label
･ Check if a floppy disk is 2HD.
･ Keep floppy disks with a title on.
･ Check the contents before using floppy disks.
･ Write a title on a label before putting it on a floppy disk.
･ Don't write a title with a benzene pen.
･ Don't use a pencil, a ball point pen, and an eraser.
･ Use a felt tip pen which does not blur.
･ To put a new label, remove the existing one carefully.
■ Notes on Handling
･ Don't fold nor bend floppy disks.
･ No magnetic field is allowed around floppy disks.
･ Avoid dust.
･ Avoid direct sunlight, high temperature and high humidity.
･ Don't touch the magnetic surface of the floppy disk.
･ When the indicator is on, the disk drive is working.
･ Don't draw out the floppy disk when the indicator is on.
･ Keep floppy disks in a safekeeping box.
■ Write Protect
To prevent formatting or overwriting data by mistake, floppy disks can be write-protected. Data can be read
from write-protected floppy disks, but cannot be written on them. When you slide the plastic tab to open
the window, the floppy disk is write-protected. When the window is closed, data can be written on the
floppy disk.
Not protectedProtected
Cleaning of Disk Drive
The head of a floppy disk drive gets dirty from repetitive writing and loading. If you continue using it
without any cleaning, malfunctions may occur and it also shortens the life of the floppy disk. Clean monthly
the head of the floppy disk drive with a conventional head cleaner.
