3-38 AKFEDT -ID 0601-002 1.5 Placement Data 1.5.1 (D01) Placement Data Un (D01_01) Selection of Placement Data Unit Select one of the following tabs (placement data groups) in one pattern program. U01 : First Placement D…
3-37
AKFEDT-ID
(C01_06)
Feeder Alternate
Select "Enable" or "Disable" to determine whether or not the feeder
alternate function should be used.
Disable :
The feeder alternate function is not used.
Enable :
The feeder alternate function is used.
(C01_07)
Fdr No.
When "Enable" is selected for the feeder alternate function, set the
destination feeder No. (Fdr No.) of the feeder that will work in place of
the feeder where a component pickup error has occurred in succession.
(C01_08)
Component Library Comment
Shown are the comments that were entered in the component library
data.
(C01_09)
Dir [deg], Carrier Data Type, and Width [mm]
Shown are the values specifi ed in the component library data.
(C01_10)
Fd. Pitch [mm]
Shown are the feed pitches specifi ed in the component library data.
(C01_11)
Used Parts
Shown is the number of components to be used for one unit PCB.
0601-002
1.4 Placement Feeder Location Data
3-38
AKFEDT-ID
0601-002
1.5 Placement Data
1.5.1 (D01) Placement Data Un
(D01_01)
Selection of Placement Data Unit
Select one of the following tabs (placement data groups) in one pattern
program.
U01 : First Placement Data Group
U02 : Second Placement Data Group
↓
Un : Up to 99 placement data groups can be specifi ed.
U02
U01
Placement Coordinate
Reference
Fiducial Marks

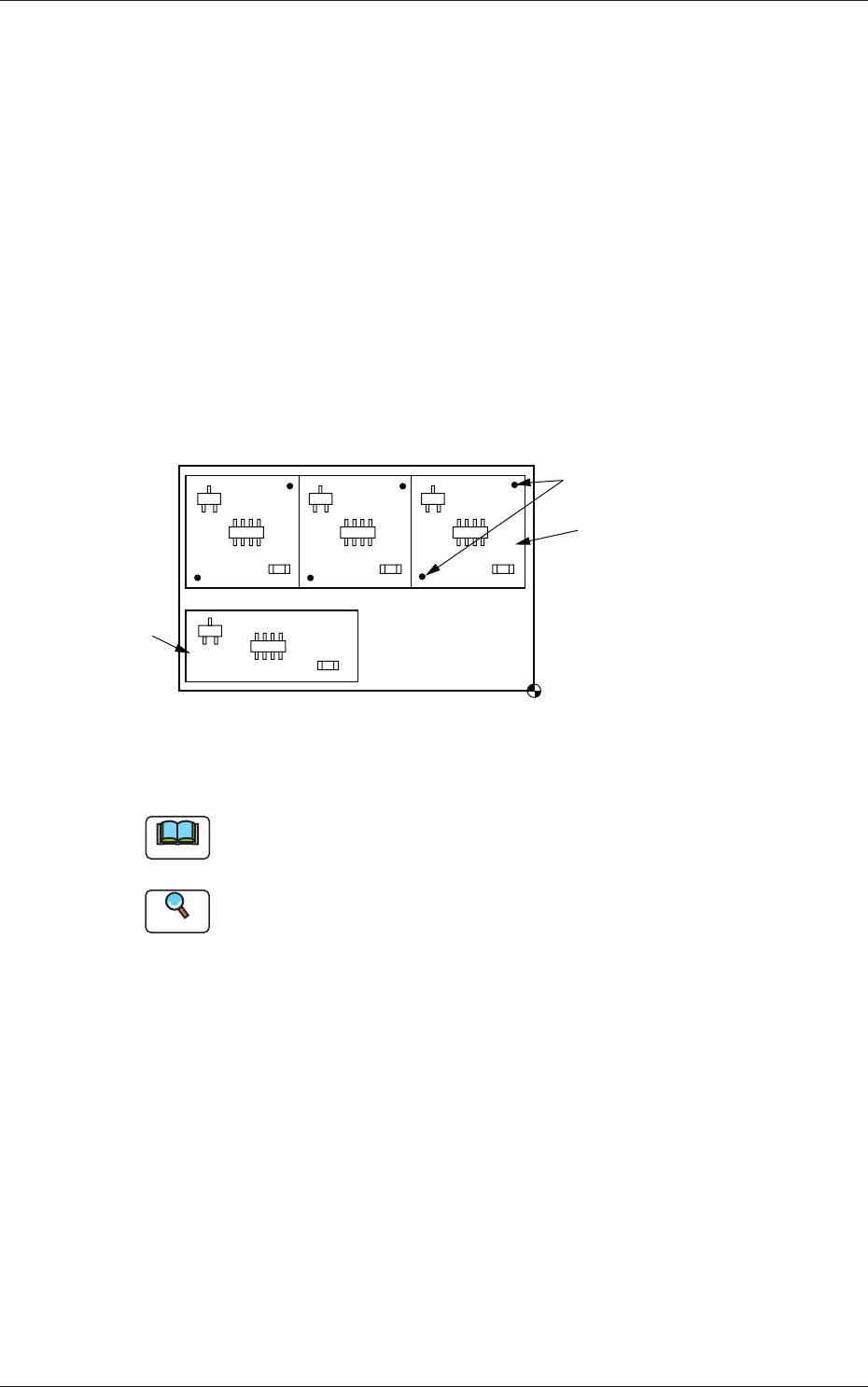

Fig. 3C28 Example of Placement Data
Note
(a) Use "U01" in normal cases.
(b) The operation and feeder location data are used commonly.
Reference
Refer to "3. Example of Pattern Program Creation" for details.
1.5 Placement Data
3-39
AKFEDT-ID
1.5.2 (D02) Placement Data (P-data)
(D02_01)
Unit Control
Select one of the following options to determine whether the selected
placement data (U01, U02, ..... Un) should be used.
In normal cases, select "Placement".
Placement :
The placement data of the selected unit (group)
becomes valid.
Bypass :
The placement data of the selected unit (group)
becomes invalid.
(D02_02)
Placement Offset
Offset X [mm] and Offset Y [mm]
Set the offset values for all placement coordinate X and Y in the
placement data (P-data) and the image and local PEC recognition
coordinates.
Note
(a) Use "+00.00" (zero) in normal cases.
(b) Note that these offsets are not refl ected on "X [mm]" and "Y [mm]" in
"A02_04 Fiducial mark".
Offset Z [deg]
Set the offset value for all placement angles (Z=Theta) in the placement
data (P-data).
Note
Use "000.000" in normal cases.
Offset H [mm]
Set the offset value for all placement height "H" in the placement data
(P-data).
Note
In normal cases, set "+0.000" in this text box.
0601-002
1.5 Placement Data
