3-42 AKFEDT -ID (D02_06) Z=theta [deg] Set angles for component placement. The placement angles must be determined according to the packaged posture of components on the tape feeder . Example: 0 o 45 o 90 o 135 o 180 o 2…
3-41
AKFEDT-ID
(D02_04)
P-No.
Shown are the step Nos. of the placement data (P).
Set coordinates and angles for component placement in the lines of the
step Nos. (P-Nos.).
(D02_05)
X [mm] and Y [mm]
Set Coordinates X and Y for component placement.
The coordinates must be based on the placement coordinate reference
(N
0
).
Y2
Y1
X1
X2
Y
X

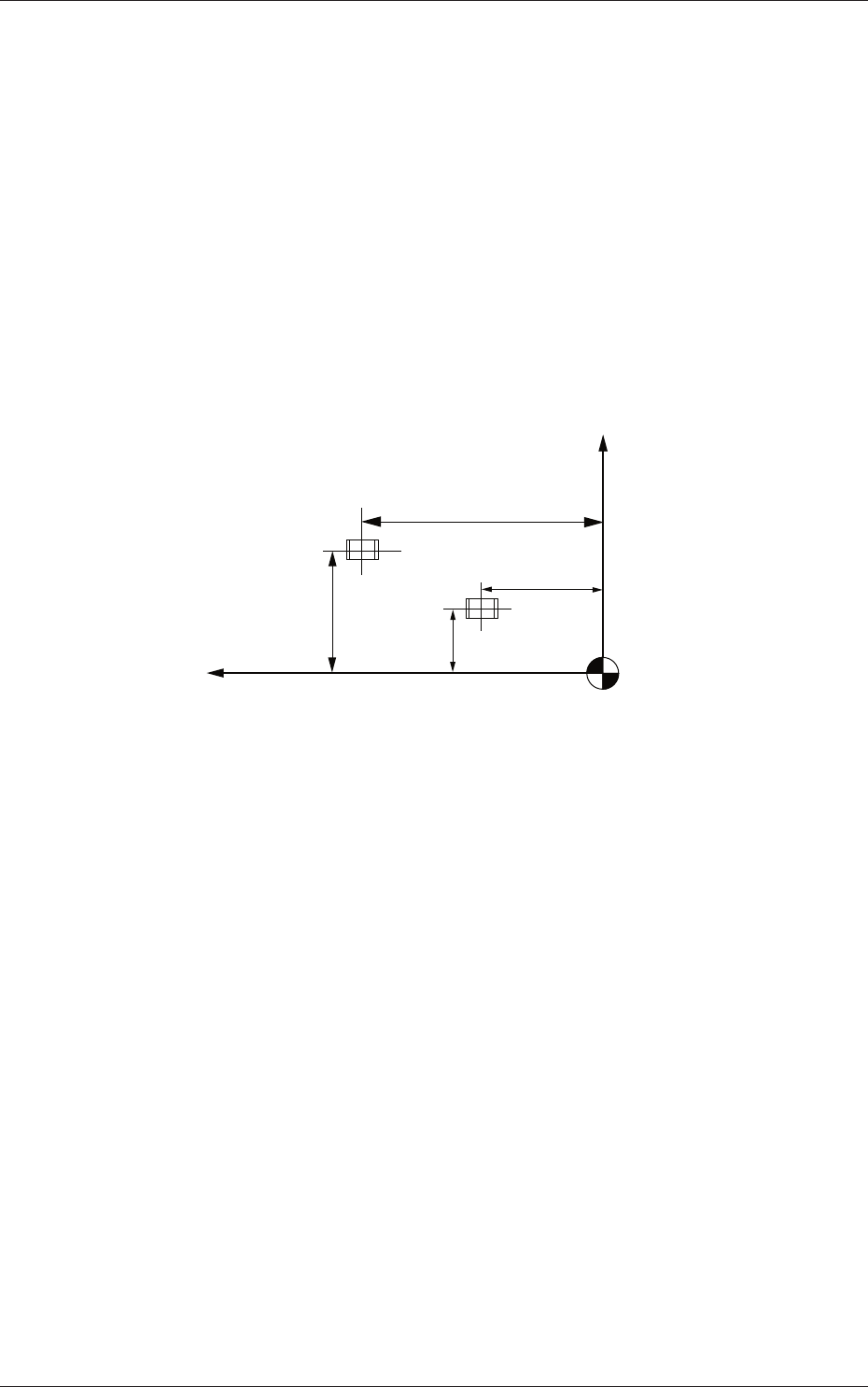

Placement Coordinate Reference (N
0)
Fig. 3C30
0601-002
1.5 Placement Data
3-42
AKFEDT-ID
(D02_06)
Z=theta [deg]
Set angles for component placement.
The placement angles must be determined according to the packaged
posture of components on the tape feeder.
Example:
0o 45o 90o 135o 180o 225o 270o 315o
Front Side of Machine
Z=Theta
(Angle)
Feeder Bases #1
and #3
Packaged
Posture
User Direction
of Tape Feed
Packaged
Posture
User Direction
of Tape Feed
Feeder Bases #2
and #4
Rear Side of Machine
Packaged Posture of
Component on Feeder
Tape Feeder
PCB
Tape Feeder
0o
90o
180o
270o
Fig. 3C31
0601-002
1.5 Placement Data
3-43
AKFEDT-ID
(D02_07)
H [mm]
The component placement height can be corrected.
H
Component
PCB
Reference Plane
Fig. 3C32
Note
When a parameter is set as "H" data in the last line (last step No.), it
becomes invalid because "E" is set in the "C (Control Command)" text
box.
(D02_08)
Fdr No.
Set the Nos. of the feeders loaded with components.
Note
The feeder Nos. (Fdr Nos.) to be set here must be specifi ed in the
placement feeder location data.
(D02_09)
V
Select one of the following options for the local recognition mode.
00 :
The local recognition is not performed.
01 :
The local recognition (1-point recognition) is performed.
02 :
The local recognition (2-point recognition) is performed.
Note
(a) The above-described option must be selected after "Enable" is set in
the "local" text box of the label "PEC recognition Mode" in the "PEC
Recognition Data" tab sheet ("A02_03" in Operation Data).
(b) Refer to "(D02_12), (D02_13), and (D02_14)" for how to specify the
coordinates and mark codes for "Local Recognition".
0601-002
