3-47
AKFEDT-ID
(D03_02)
X [mm] and Y [mm]
Set the coordinates of each pattern origin (O
01
through On) based on the
placement coordinate reference (N
0
).
A pattern origin refers to the reference coordinates of a repetitive
pattern.
The pattern origins (coordinate reference of repetitive patterns) must
be determined, regarding the "Z=theta [deg]" data as "0°" (described
in "D03_03") and located at corners on the same side as the placement
coordinate reference (N
0
).
N
0
:
The center of
is the placement coordinate reference.
O
01
:
Pattern Origin of Pattern 1
O
02
:
Pattern Origin of Pattern 2
O
03
:
Pattern Origin of Pattern 3
O
04
:
Pattern Origin of Pattern 4
O04
O03
O02
O01
X
Y
Placement Coordinate
Reference (N
0)
Component
Pattern 4 Pattern 3
Pattern 2 Pattern 1

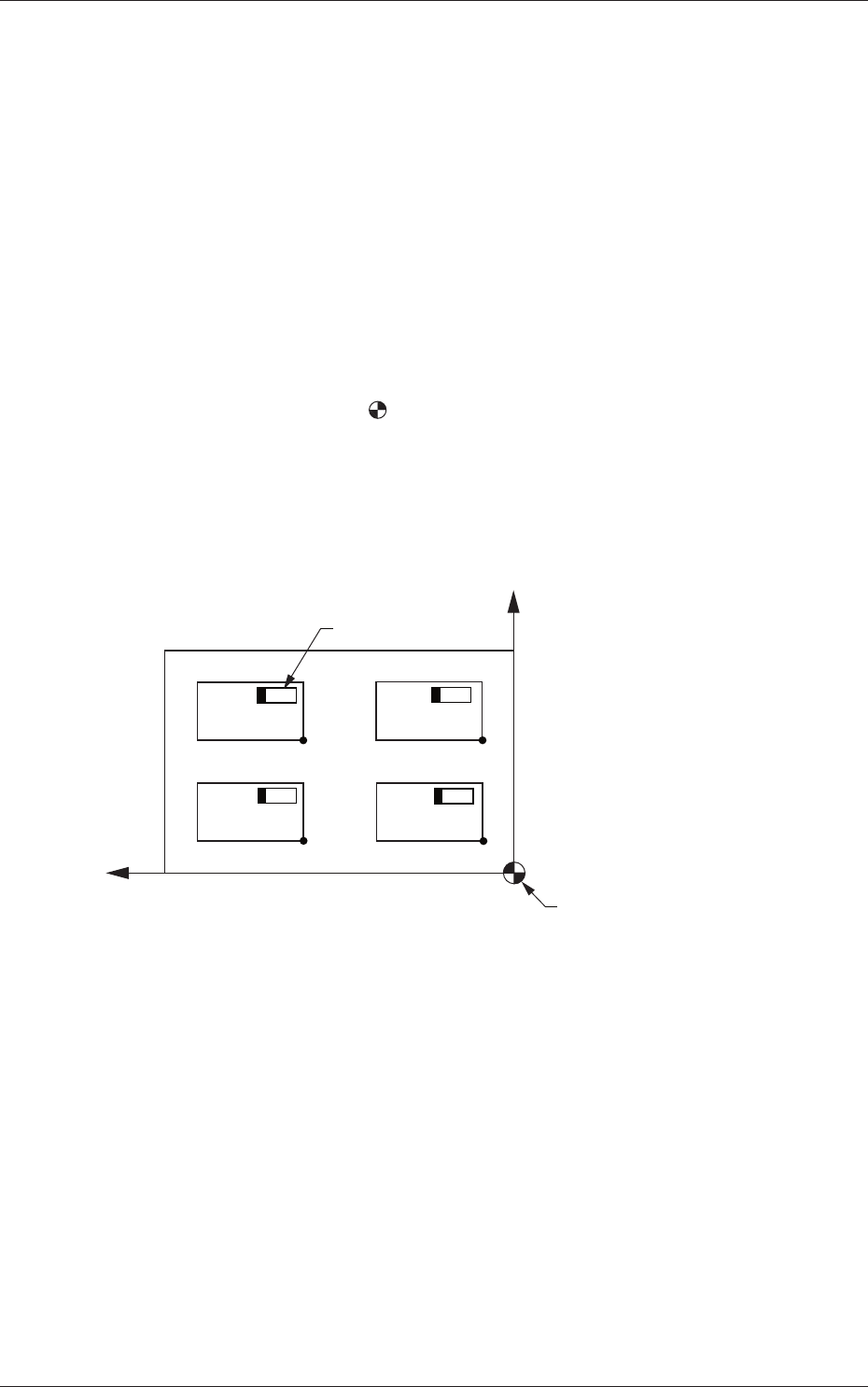

Fig. 3C34 Example of Repetitive Patterns
0601-002
1.5 Placement Data
3-48
AKFEDT-ID
(D03_03)
Z=theta [deg]
Set an angle of each pattern.
Keep the angle of the reference pattern as "000.00°".
In the fi gure below, "Pattern 1" is regarded as a reference one.
N
0
:
The center of
is the placement coordinate reference.
O
01
:
Pattern Origin of Pattern 1
O
02
:
Pattern Origin of Pattern 2
O
03
:
Pattern Origin of Pattern 3
O
04
:
Pattern Origin of Pattern 4
Pattern 1 :
0°
Pattern 2 :
90°
Pattern 3 :
180°
Pattern 4 :
270°
X
O
03
O02
O01
O04
Y
Placement Coordinate
Reference (N
0)
Component
Pattern 4
Pattern 3
Pattern 2
Pattern 1

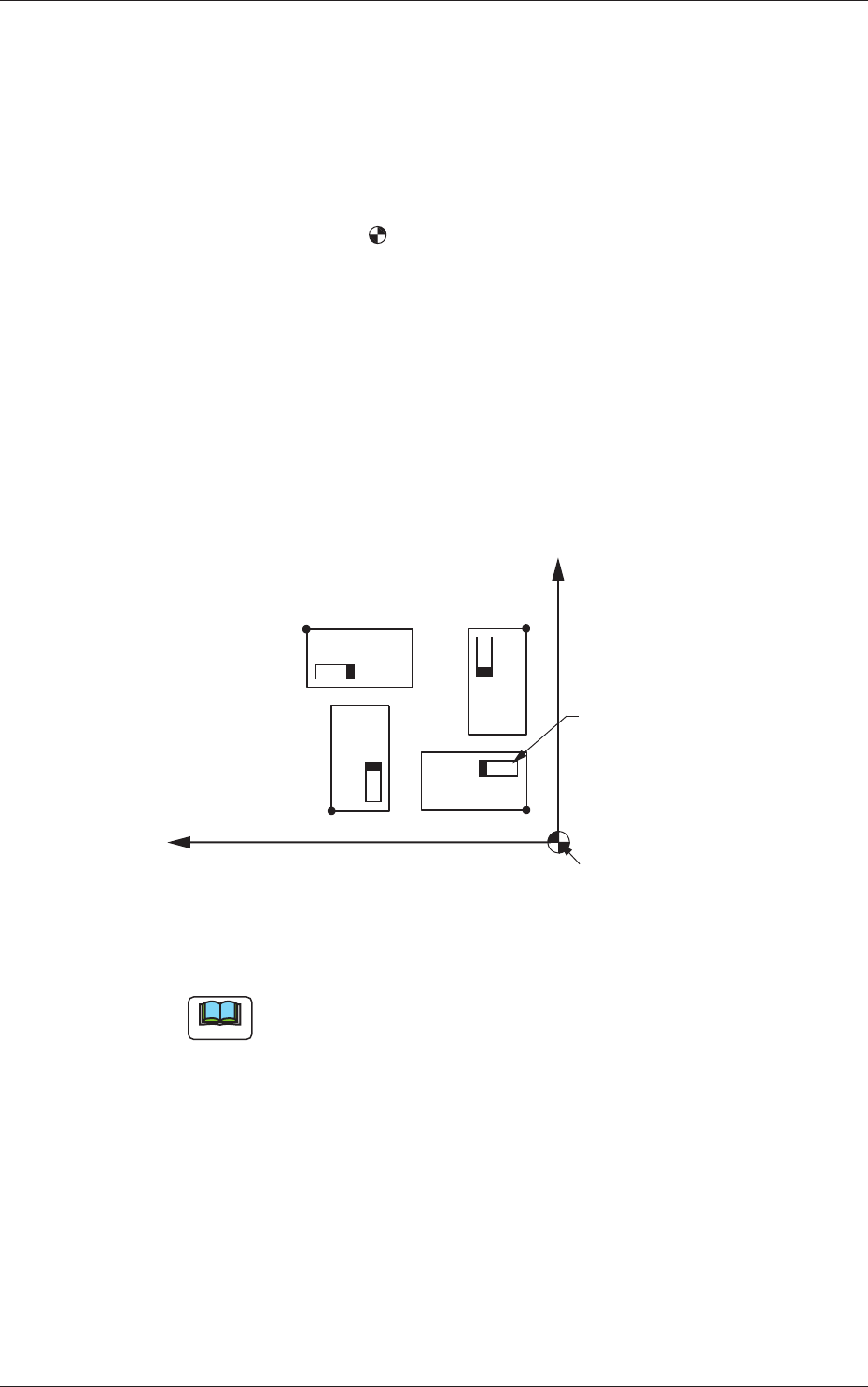

Fig. 3C35 Example of Repetitive Patterns
Note
A numerical value must be entered in increments of 90°. Otherwise, an error will
occur.
0601-002
1.5 Placement Data
3-49
AKFEDT-ID
(D03_04)
H
The height for each individual patterns (unit PCBs) can be corrected.
Note
When a parameter is set as "H" data in the last line (last step No.), it
becomes invalid because "E" is set in the "C (Control Command)" text
box.
(D03_05)
C
Enter some of the following control commands.
Notice
If a control command other than the following ones is used, the step
becomes invalid.
- (hyphen) :
This command handles the steps as those for component
placement.
S :
This command invalidates the steps specifi ed as those for
component placement.
C :
This command invalidates the steps specifi ed as those for
component placement.
Note:
As for dispensers, these steps become valid.
D :
This command handles the steps as those for component
placement.
Note:
As for dispensers, these steps become invalid.
E :
When placement data (O) is not created, this shows the
end of the steps in the placement data (P).
Note
Confi rm that "0" (zero) is set in the "X [mm]", "Y [mm]", and "Z=theta
[deg]" text boxes of the last line (last step No.) and set "E".
(D03_06)
Comment
Set a comment for each step No.
Alphanumeric characters and symbols can be used.
Up to 32 characters (alphanumerics and marks) can be used.
Note
The automatic operation is not affected by these comments.
