2.4 Allocation of Component IDs

2.4.1 "Component ID List" Window

When the "Component ID List Display" icon ( ) is selected in the

"Pattern Program" window, the "Component ID List" window opens.

[2]

[9]

[3] [4]

[5] [6] [7] [8] [1]

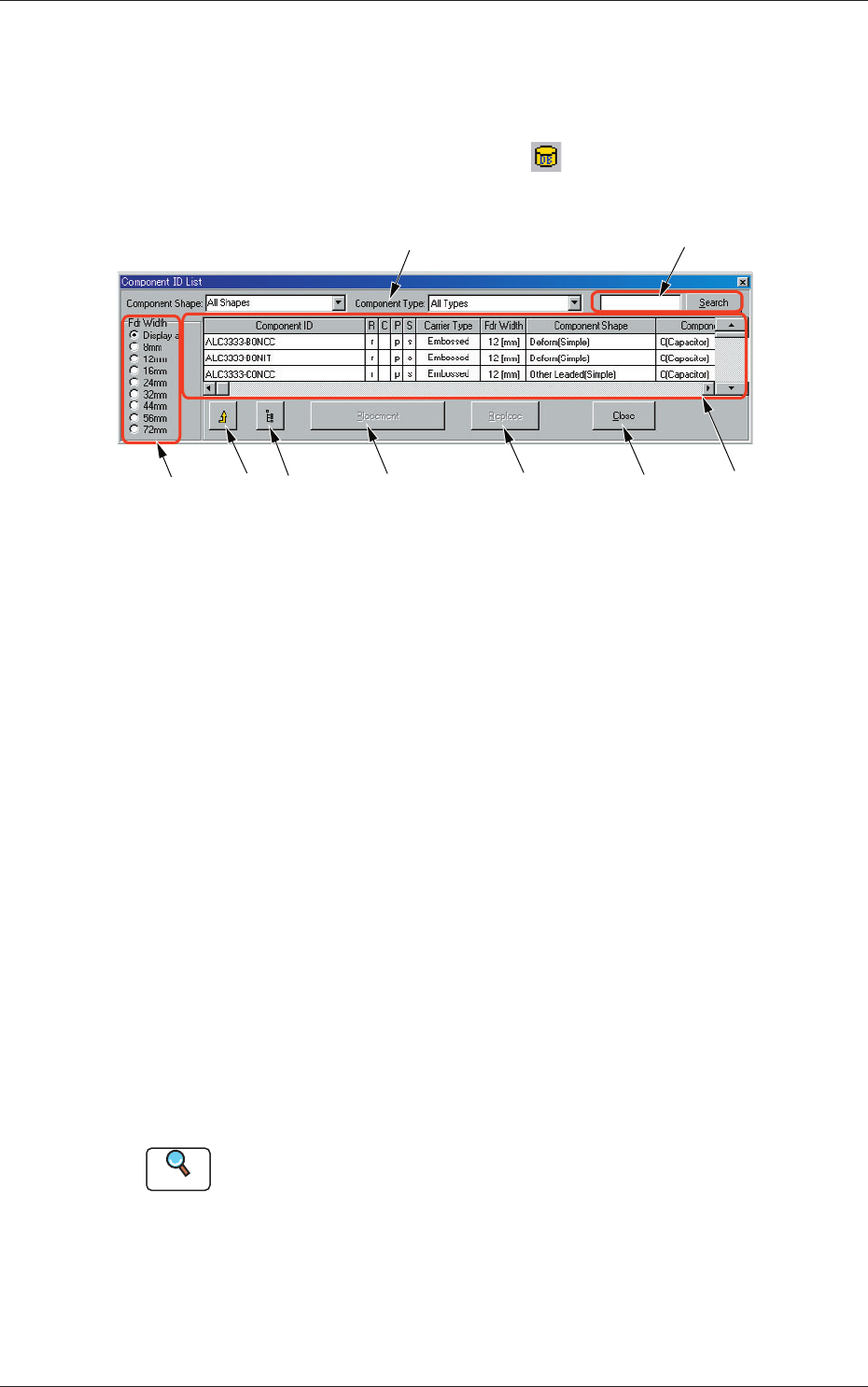

Fig. 3C45 "Component ID List" Window

Shown is the window of the component library for your reference.

This window is mainly used when the placement feeder location data must

be created.

[1] "List of Component IDs" Pane

A list of component IDs is displayed.

[2] Component Shape and Type

Select the desired component shape and type from the drop-down lists.

When the component types corresponding to the selected data are listed

in [1].

[3] "Fdr Width" Group Box

When an option button is selected, the component IDs corresponding to

the selected feeder width are listed in [1].

[4] "Component Library" Edit Button

When pressed, this button opens a "Component Library" edit window,

making it possible to edit the component library data.

Reference

Refer to "Chapter 4 Component Library" for how to edit the component

library data.

0601-002

2.4 Allocation of Component IDs

3-58

AKFEDT-ID

[5] [Link ID Tree Display] Button

When pressed, this button displays the link and root IDs that are

arranged side by side in the hierarchical (tree) ﬁ le system.

[6] [Placement] Button

When pressed, this sets the component selected from the list of

component IDs in the placement feeder location data.

[7] [Replace] Button

When pressed, this button replaces the placement feeder location data

with the component selected from the list of component IDs.

[8] [Close] Button

When pressed, this button closes the "Component ID List" window.

[9] [Search] Button

When pressed, this searches the required component ID.

(1) Enter the component ID to be searched, or using "*" (asterisk) and

"?" (question mark) as wild cards.

(1) (2)

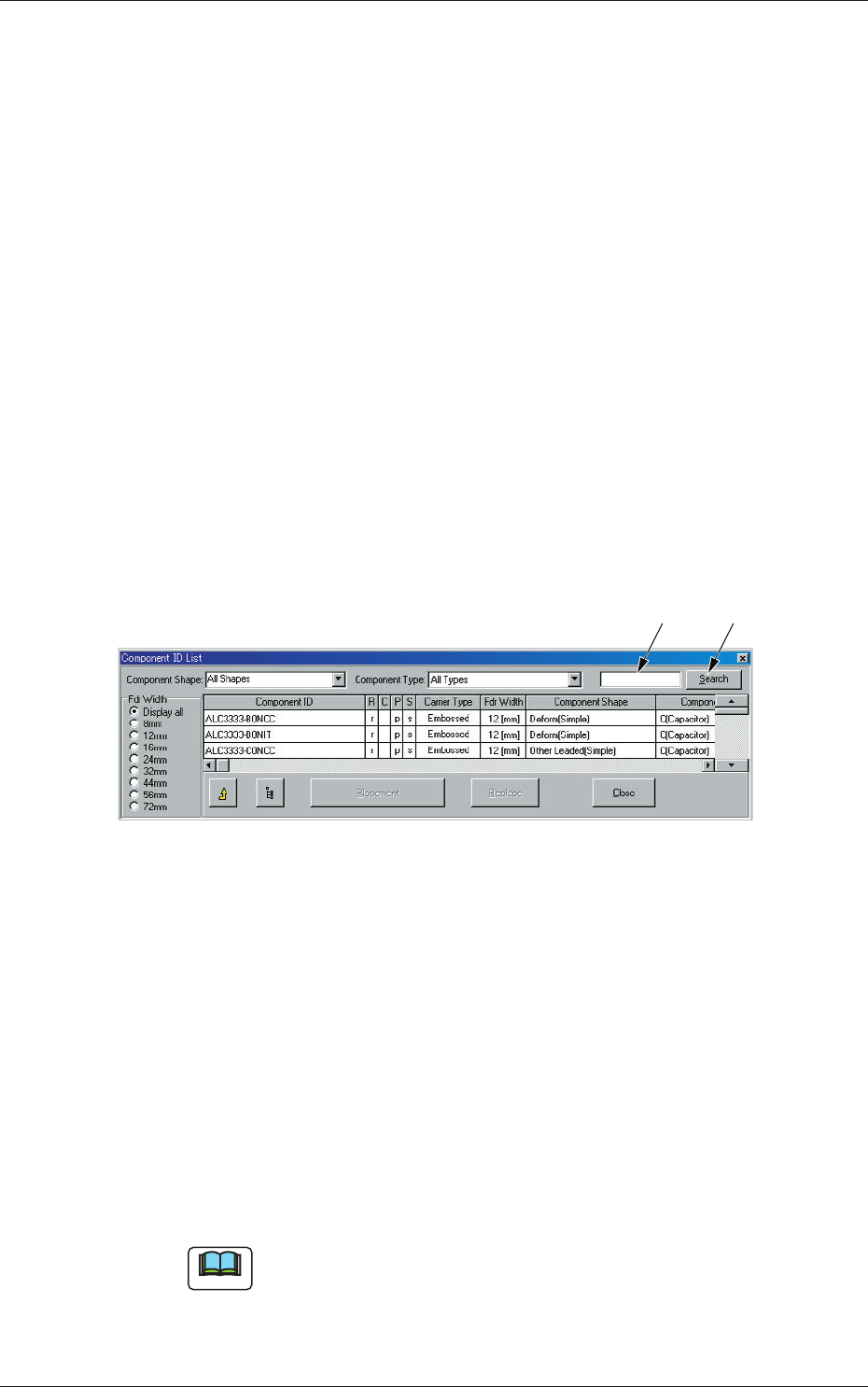

Fig. 3C46

Example :

(a) When "AB*" is entered in the text box, all

component ID names starting with "AB" can be

searched.

(b) When "*CD" is entered, all component IDs

ending with "CD" can be searched.

names containing any character(s) between "AB"

and "DE" can be searched.

(2) Press the [Search] button.

Only the component IDs that meet the requirements are displayed.

Note

To clear the results of the search operation

(1) Make blank the text box beside the [Search] button.

(2) Press the [Search] button.

The original condition resumes.

0601-002

2.4 Allocation of Component IDs

3-59

AKFEDT-ID

0601-002

2.4.2 Allocation of Component IDs

(1) Select the "Feeder Base #" tab where a component ID should be

allocated.

(2) Select the feeder No. (Fdr No.) where a component ID should be

allocated.

The selected line (Fdr No.) turns blue, indicating that it is selected.

Selected Fdr No.

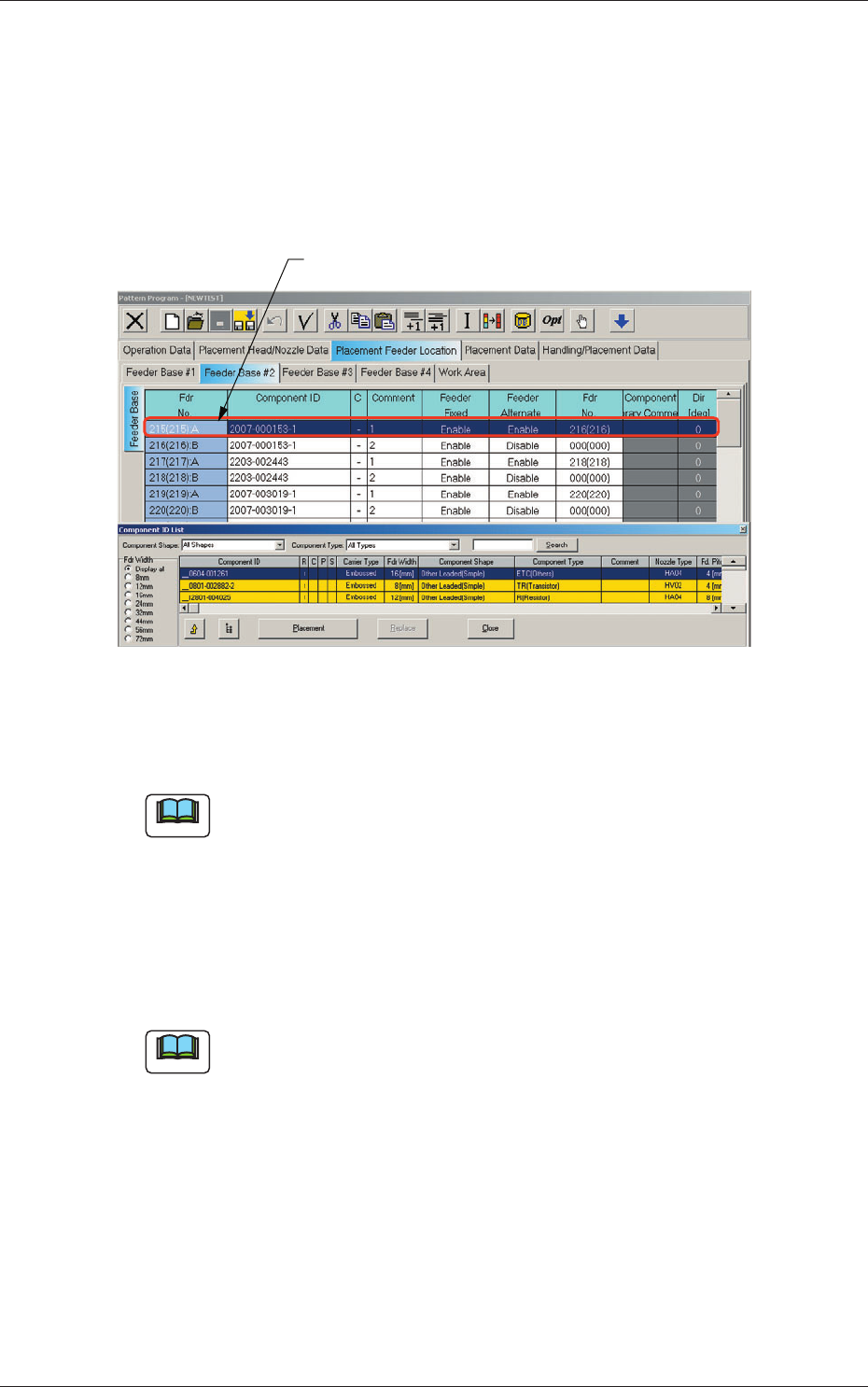

Fig. 3C47 Edit Window (Example)

(3) Select the desired component ID to be allocated in the "Component ID

List" window.

Note

When parameters are set in the "Component Shape" and "Component

Type" combo boxes and an option button in the "Fdr Width" group box is

selected, the component IDs based on the selections will be searched and

displayed quickly.

(4) Press the [Placement] button.

The selected component ID is allocated to the "Fdr No." line that has

turned blue.

Note

When the [Replace] button is pressed in place of the [Placement] button,

the component ID in the "Component ID" text box is replaced with the

component ID selected from the list of component IDs.
