4-1

AKFEDT-ID

0601-002

1. Selection of Component IDs

To edit the component library data, the ﬁ le corresponding to the selected

component ID must be edited in the "Component Library" edit window.

1.1 "Selection of component ID" Window

When the [CMPNT LBRY] button is pressed on the submenu bar of the

"EDIT" window, the "Selection of component ID" window appears.

[3] [2]

[7]

[6]

[10][4] [1]

[5]

[9]

[8]

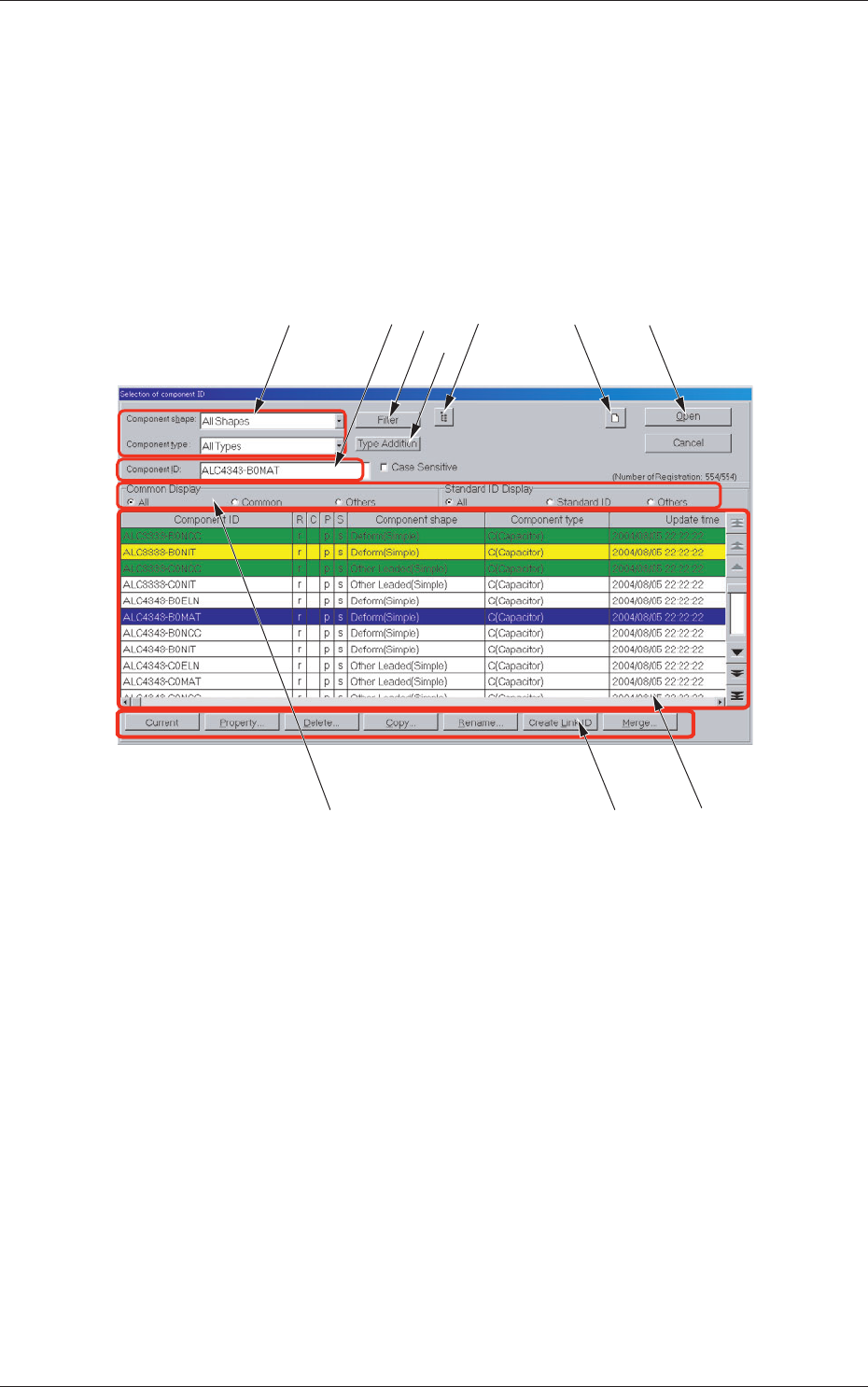

Fig. 3D1 "Selection of component ID" Window

4-2

AKFEDT-ID

[1] "List of Component IDs" Pane

A list of component IDs is displayed.

Select the component ID whose data should be displayed in the

"Component Library" edit window or the component ID to be deleted,

copied, or renamed.

Component ID :

Component IDs are displayed.

R :

When "r" is set, it indicates that the component

ID is a root one.

A root ID is an original component ID for

linking, copying, etc.

C :

When "c" is set, it indicates that the component

ID is registered as a common one.

P :

When "p" is set, it indicates that the component

ID is protected.

S :

When "s" is set, it indicates that the component

ID is a standard one.

Component shape :

Component shapes are displayed.

Component type :

Component types are displayed.

Update time :

Update time (date and time) is displayed.

Nozzle Type :

Nozzle types are displayed.

Note

By pressing one of the titles (the labels arranged on top of the list), the

step lines (parameters) are sorted by ID, update time, etc., and reorganized,

depending on which title is selected.

[2] Component ID

Displayed is the component ID selected in "[1] "List of Component

IDs" Pane".

[3] Component Shape and Type

Select the desired component shape and type.

The component IDs based on the selected shape and type are displayed

in "[1] "List of Component IDs" Pane".

[4] "Common Display" and "Standard ID Display" Group Boxes

Select the desired option buttons.

Depending on which option buttons are selected, a list of component

IDs having speciﬁ c attributes appears in "[1]".

[5] [Filter] Button

When pressed, this button opens the "Filter" window, enabling you to

select a component shape, a component type, a common display, and a

standard ID display for ﬁ ltering.

0601-002

1.1 "Selection of component ID" Window

4-3

AKFEDT-ID

[6] [Link ID Tree Display] Button

When pressed, this button displays the link and root IDs that are

arranged side by side in the hierarchical (tree) ﬁ le system.

[7] [New] Button

When pressed, this button opens a new "Component Library" edit

window with default values.

[8] [Open] and [Cancel] Buttons

[Open] Button

When pressed, this button opens the "Component Library" edit window

that corresponds to the selected component ID.

[Cancel] Button

When pressed, this button closes the "Selection of component ID"

window.

[9] [Type Addition] Button

When pressed, the "Type Addition" dialog box opens, enabling the

operator to add a component type.

Reference

Refer to "1.2.1 Type Addition" for the "Type Addition" dialog box.

0601-002

1.1 "Selection of component ID" Window
