5-5

AKFEDT-ID

[4] [CrntPP] Button

When pressed, this button displays the current pattern program

(production model).

[5] [All] Button

When pressed, this button displays the names of all registered programs

in the "List of Model Names" pane.

[6] [Search] Button

When pressed, this button helps you ﬁ nd a model from the "List of

Model Names" pane.

When this button is pressed, the "Search" window opens.

Fig. 3E3 "Search" Window

When the desired model name is entered in the entry box and the [Set]

button is pressed, the search function starts working and the result

appears in the "List of Model Names" pane.

"*" (asterisk) and "?" (question mark) can be used as wild cards.

abc* : The search function retrieves the program names which start

with "abc".

a?c : The search function retrieves the program names which start

with "a" and contain "c" as the third character.

0601-002

1.2 Outline of Pattern Program Management Data

5-6

AKFEDT-ID

0607-003

1.3 Outline of Bypass & Rate Data

The corresponding tab sheet enables the operator to check the pickup rate

calculated for each feeder or nozzle and based on each pickup rate speciﬁ ed

in the auto operation setup data.

When the [Bypass & Rate Dt] button is pressed in the "MANAGEMENT

DATA" window, the following window opens.

[1] [2] [3]

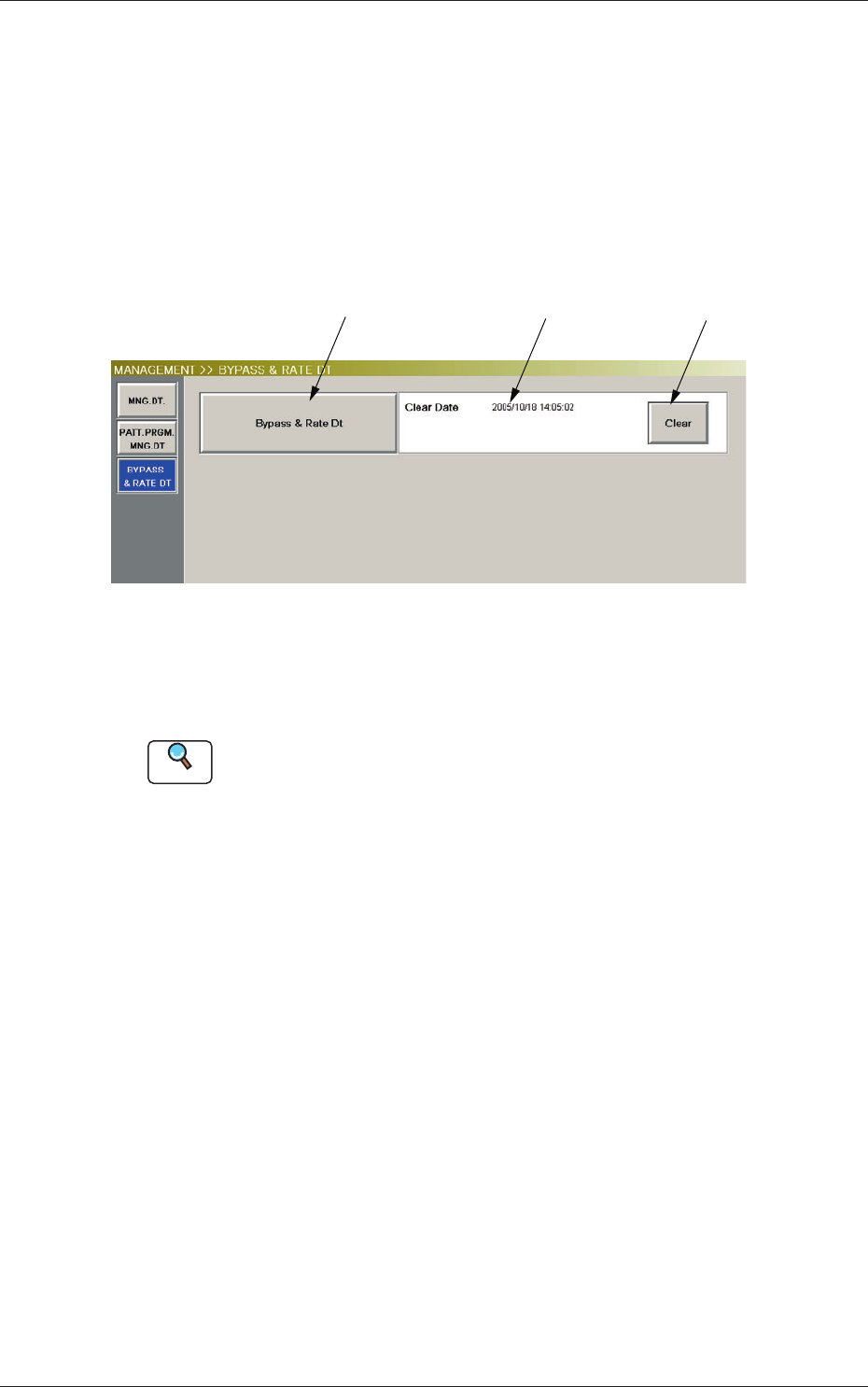

Fig. 3E4 "Bypass & Rate Dt" Window

[1] [Bypass & Rate Dt] Button

When pressed, this button opens the "Bypass & Rate Data" window.

Reference

Refer to "4. Bypass & Rate Data" for the details of the "Bypass & Rate

Data" window.

[2] Clear Date and Comment

Displayed are the clear date and comment of the bypass & rate data.

[3] [Clear] Button

When this button is pressed, the all bypass & rate data is deleted and the

clear date is updated.

1.3 Outline of Bypass & Rate Data

5-7

AKFEDT-ID

2. Management Data

The corresponding window enables the operator to conﬁ rm the production

performance data covering the whole machine performance.

Note

The contents of "Type #1" are almost the same as "Type #2".

To use the required items, the management spans must be distinguished.

When the [Manage Dt.] button is pressed in the "MANAGEMENT DATA"

window, the "Management Data - [manage (Type1)]" window opens.

[4]

[1]

[5]

[2] [3]

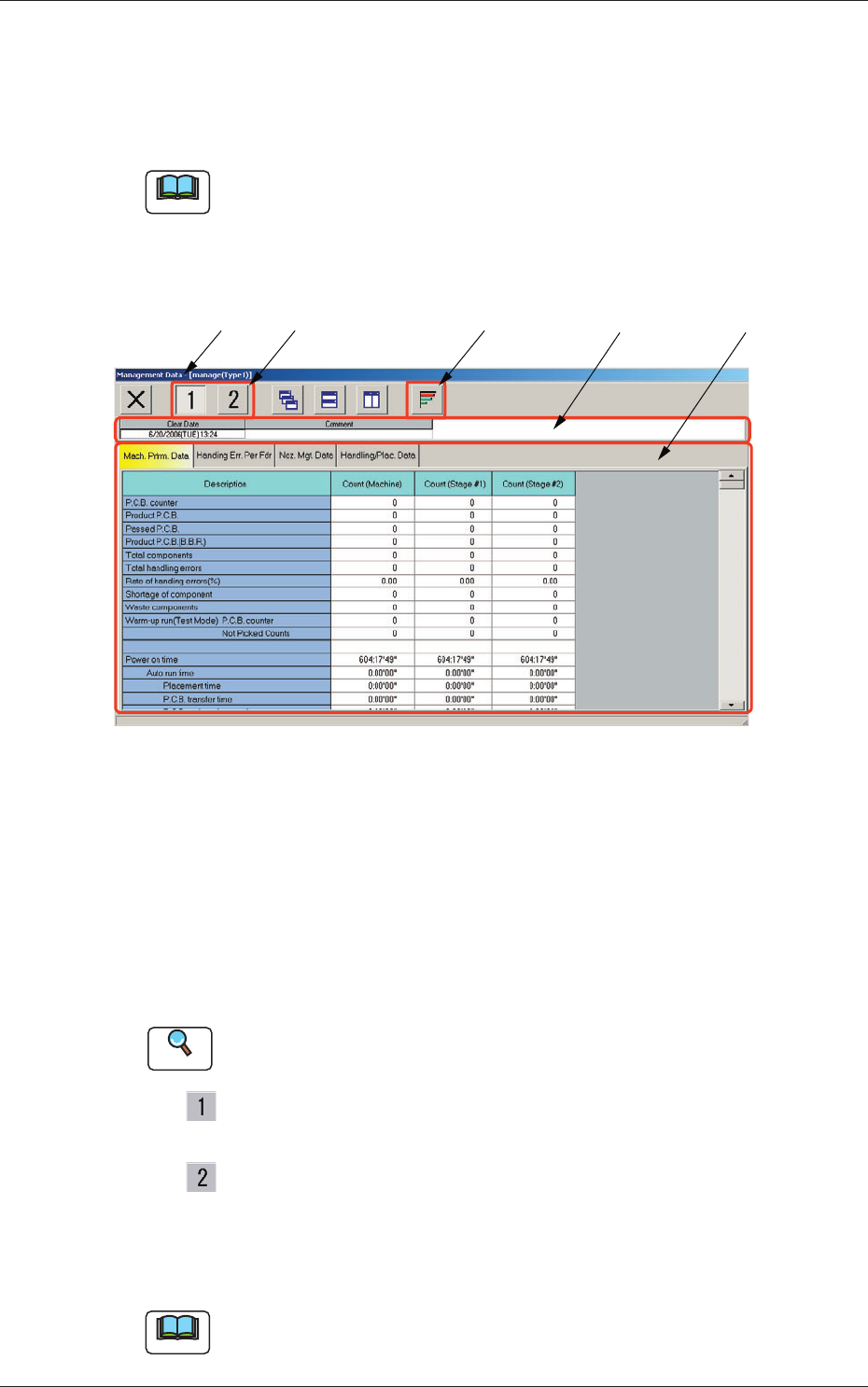

Fig. 3E5 "Management Data" Window

[1] Title Bar

The active window is titled "Management Data - [manage (Type1 or

Type2)]" on this bar, making it clear which data (Type #1 or #2) is

selected.

[2] Icons

Described below is the meaning of each icon that will be used only in

the "Management Data" window.

Reference

Refer to "1.2 Basic Icons" in "Chapter 2" for the meaning of the basic

icons.

: When pressed, this opens the "Management Data -

[manage(Type1)]" window.

: When pressed, this opens the "Management Data -

[manage(Type2)]" window.

[3] [Graph Display] Button

When selected, this button graphically displays the status of each item.

Note

The handling placement data cannot be displayed graphically.

2. Management Data
