5-7

AKFEDT-ID

2. Management Data

The corresponding window enables the operator to conﬁ rm the production

performance data covering the whole machine performance.

Note

The contents of "Type #1" are almost the same as "Type #2".

To use the required items, the management spans must be distinguished.

When the [Manage Dt.] button is pressed in the "MANAGEMENT DATA"

window, the "Management Data - [manage (Type1)]" window opens.

[4]

[1]

[5]

[2] [3]

Fig. 3E5 "Management Data" Window

[1] Title Bar

The active window is titled "Management Data - [manage (Type1 or

Type2)]" on this bar, making it clear which data (Type #1 or #2) is

selected.

[2] Icons

Described below is the meaning of each icon that will be used only in

the "Management Data" window.

Reference

Refer to "1.2 Basic Icons" in "Chapter 2" for the meaning of the basic

icons.

: When pressed, this opens the "Management Data -

[manage(Type1)]" window.

: When pressed, this opens the "Management Data -

[manage(Type2)]" window.

[3] [Graph Display] Button

When selected, this button graphically displays the status of each item.

Note

The handling placement data cannot be displayed graphically.

2. Management Data

0607-003

5-8

AKFEDT-ID

2. Management Data

0607-003

[4] Information on Active File

This ﬁ eld displays "Clear Date" and "Comment".

[5] T

abs and Tab Sheets

The "Management Data" window is provided with the following four

tabs. When each tab is pressed, the corresponding tab sheet appears

inside the window.

Table 3E2

Tabs Description

Machine Performance Data

The corresponding tab sheet enables the operator to view various

counts (results of accumulated data) as machine performance data.

Handling Errors Per Feeder

The corresponding tab sheet enables the operator to view the pickup

data of each individual feeders.

Nozzle Management Data

The corresponding tab sheet enables the operator to view various

counts (results of accumulated performance data) of each individual

nozzles.

Handling/Placement Data

The corresponding tab sheet enables the operator to view the

component pickup and placement data.

[6] [7]

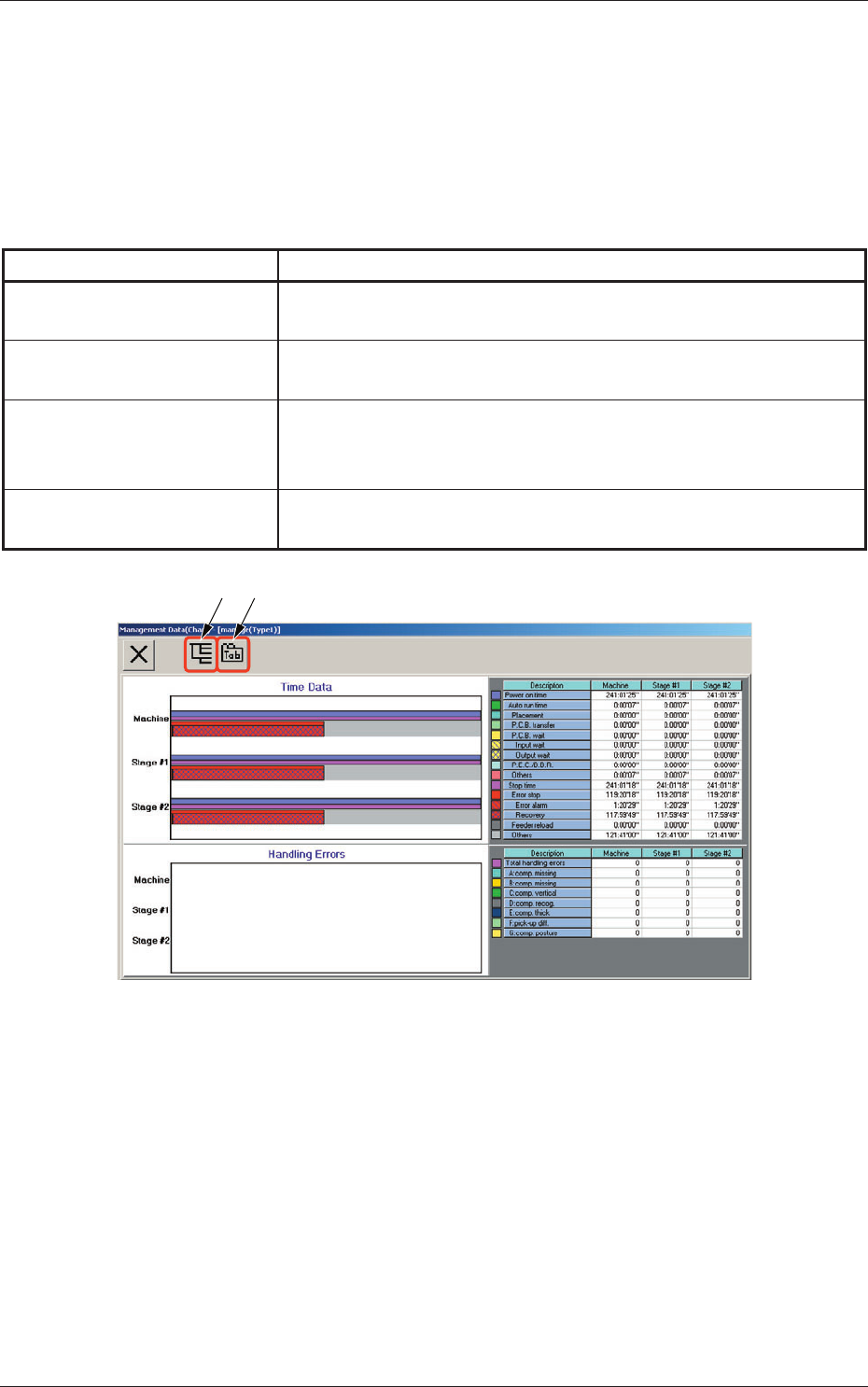

Fig. 3E4-1 "Management Data (Chart)" Window

[6] "Tree Display" Icon

When selected, this button displays the hierarchical arrangement of data

names, enabling you to select the desired data.

[7] "Tab Display" Icon

When selected, this button displays submenu sheets with extensions

called "tab", enabling you to select the desired tab sheet.

5-9

AKFEDT-ID

2.1 Machine Performance Data

When the "Mach. Prfrm. Data" tab is pressed in the "Management Data"

window, the following tab sheet appears inside the window.

Fig. 3E6 "Mach. Prfrm. Data" Tab Sheet

Fig. 3E6-1 "Management Data (Chart)" Window

Displayed is the list of counted numbers (total counts included) for each

individual data items related to "Stage #1" and "Stage #2".

(1) PCB counter

Shown is the number of produced PCBs.

Counting is implemented when the X/Y table is zeroed after component

placement operation (when a PCB is ﬁnished).

Note

When a particular pattern program is set several times as current one, the

sum total is computed.

0611-004

2.1 Machine Performance Data
