2.3 Nozzle Management Data
2.3 Nozzle Management Data
The corresponding tab sheet enables the operator to view the nozzle
management data.
When the "Noz. Mgt. Data" tab is pressed in the "Management Data"
window, the following tab sheet appears inside the window.

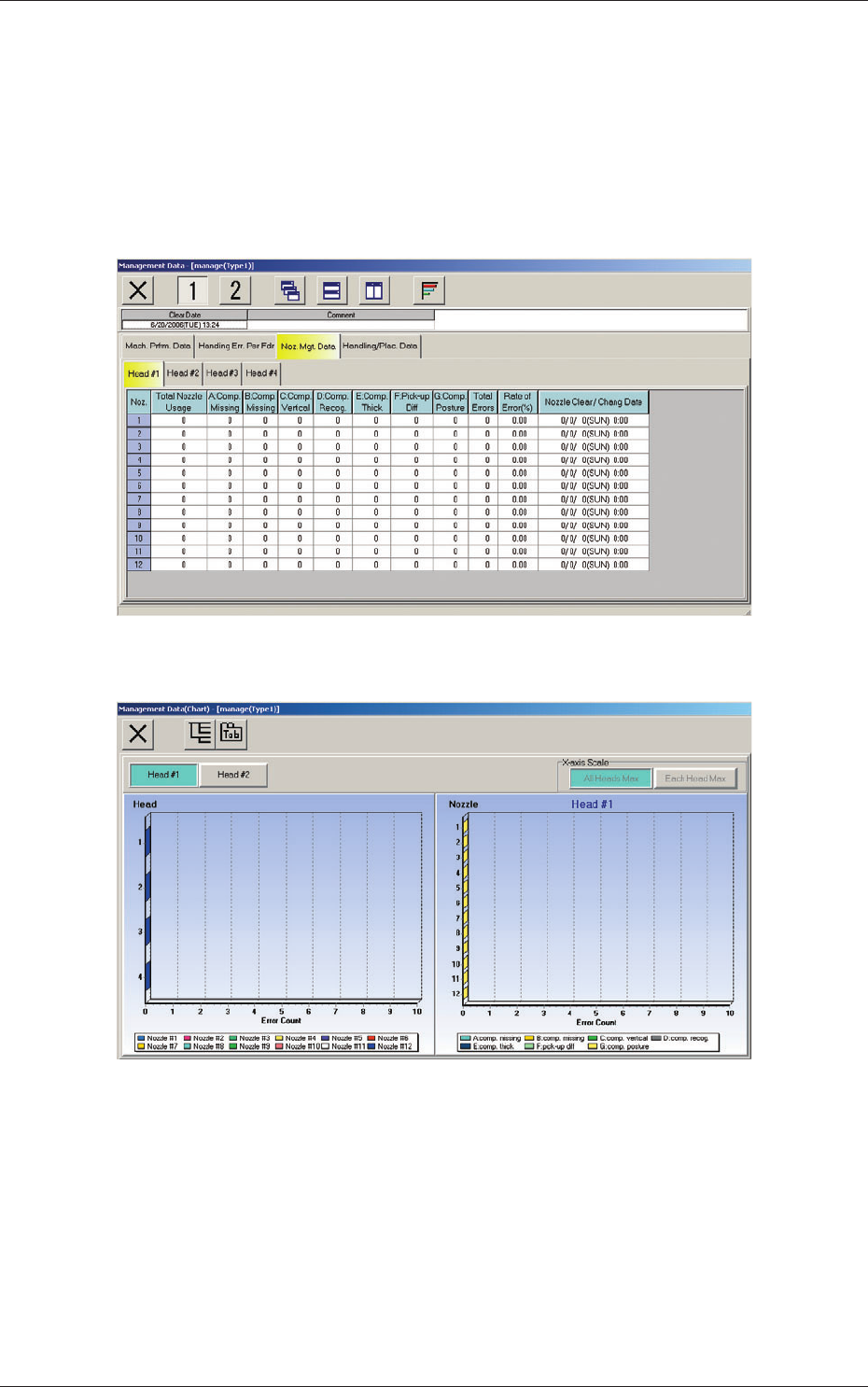

Fig. 3E10 "Noz. Mgt. Data" Tab Sheet
Fig. 3E10-1 "Bypass & Rate (Chart)" Window ("Handling Errors per Nozzle" Window)
The "Noz. Mgt. Data" tab sheet is divided further into four subtab sheets and
each subtab sheet shows the nozzle management data for each individual
head #.
When a subtab is pressed, the corresponding subtab sheet appears.
5-19
AKFEDT-ID
(1) Noz.
Shown are the nozzle Nos.
(2) Total Nozzle Usage
Each text box shows the number of pickup actions for each individual
nozzles.
(3) A: Comp. Missing
Each text box shows the number of missing components detected by the
linear measure detection sensor for each individual nozzles.
(4) B: Comp. Missing
Each text box shows the number of missing components detected
through recognition operation for each individual nozzles.
(5) C: Comp. Vertical
Each text box shows the number of vertical component errors detected
by the linear measure detection sensor for each individual nozzles.
(6) D: Comp. Recog
Each text box shows the number of errors detected through recognition
operation for each individual nozzles.
(7) E: Comp. Thick
Each text box shows the number of errors in component thickness
detected by the linear measure detection sensor for each individual
nozzles.
(8) F: Pick-up Diff
Each text box shows the number of pickup difference errors detected in
the recognition process for each individual nozzles.
(9) G: Comp. Posture
Each text box shows the number of reversed component and polarity
judgment errors detected in the recognition process for each individual
nozzles.
(10) Total Errors
Each text box shows the total number of errors detected in (3) through
(9).
0607-003
2.3 Nozzle Management Data
5-20
AKFEDT-ID
(11) Rate of Error (%)
Each text box shows the percentage of the total number of errors per the
number of picked components.
(12) Nozzle Clear/Change Date
Each text box shows the clear date for each individual nozzles.
Note
When one of the above buttons is pressed, the nozzle No. with the biggest
parameter under the selected button is displayed in the fi rst line and nozzle
Nos. having the subsequent (second, third, fourth, ...) biggest parameters
follow.
That is, parameters are re-arranged in order of error counts, making it easy
to analyze and improve production rate.
When the [Noz.] button is pressed, the Nos. are re-arranged in their initial
order (Nozzle Nos.).
