5-36 AKFEDT -ID [3] T abs and T ab Sheets The "Bypass & Rate Data - [Bypass]" window is provided with the following tabs. When each tab is pressed, the corresponding tab sheet appears inside the window . T …
5-35
AKFEDT-ID
4. Bypass & Rate Data
The corresponding window enables the operator to check the pickup rate and
nozzle bypass condition (managed for each individual feeders or nozzles)
based on each pickup rate and nozzle bypassing specifi ed in the auto
operation setup data.
When the [Bypass & Rate Dt] button is pressed in the "Bypass & Rate Dt"
window, the "Bypass & Rate Data - [Bypass]" window appears.
[1] [2][4] [3]
Fig. 3E16 "Bypass & Rate Data - [Bypass]" Window
[1] Toolbar
The following buttons are provided.
[Saved Data] Button
When pressed, this button displays the data saved as bypass & rate data.
[Current Data] Button
When pressed, this button displays the current bypass & rate data.
[2] Recording Date & Time
Displayed are the recording date & time and the machine name related
to the bypass & rate data.
0607-003
4. Bypass & Rate Data
5-36
AKFEDT-ID
[3] Tabs and Tab Sheets
The "Bypass & Rate Data - [Bypass]" window is provided with the
following tabs. When each tab is pressed, the corresponding tab sheet
appears inside the window.
Table 3E5
Tabs Description
Head Nozzle Bypass Data
The corresponding tab sheet enables the operator to check the pickup
rate and nozzle bypass condition (managed for each individual feeders
or nozzles) base on each pickup rate and nozzle bypassing specified in
the auto operation setup data.
Feeder Message Rate
The corresponding tab sheet enables the operator to check the pickup
rate, the feeder message rate, and the component ID classifi
ed by each
warning factor on individual feeder Nos. (actual feeder Nos.).
Nozzle Message Rate
The corresponding tab sheet enables the operator to check the pickup
rate and the nozzle message rate classifi
ed by each warning factor of
the nozzles on the individual heads (Head-Noz.).
[4] [Graph Display] Button
When selected, this button graphically displays the status of each item.
Note
The head nozzle bypass data cannot be displayed graphically.
0611-004
4. Bypass & Rate Data
5-37
AKFEDT-ID
0607-003

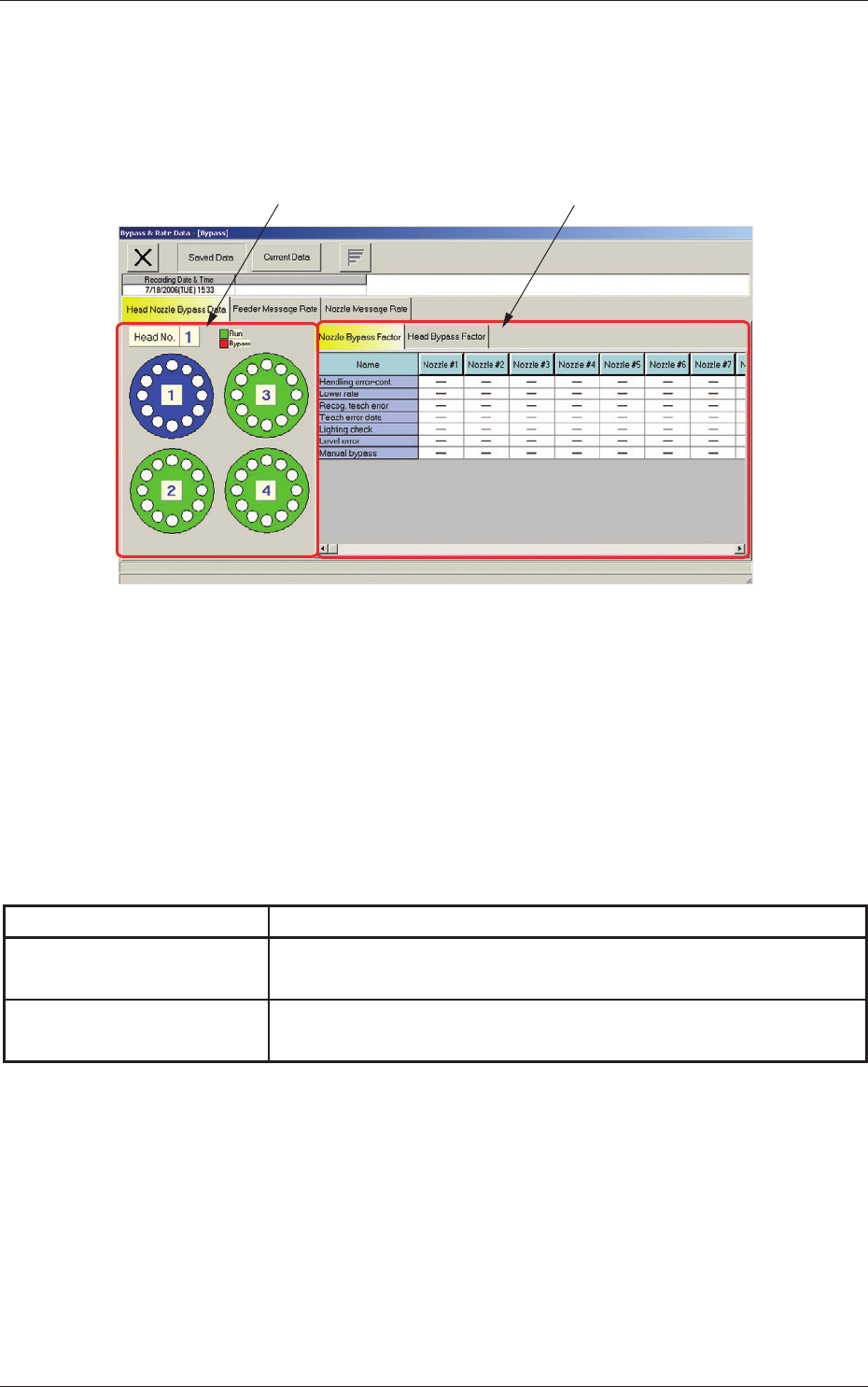

4.1 Head Nozzle Bypass Data
When the "Head Nozzle Bypass Data" tab is pressed in the "Bypass & Rate
Data - [Bypass]" window, the following tab sheet appears.
[1]
[2]
Fig. 3E17 "Head Nozzle Bypass Data" Tab Sheet
[1] Graphical Expression of Head and Nozzles
When a head (nozzles) is selected on the graphical rotary turret, the
nozzle or the head bypass factors are displayed on the right tab sheet.
[2] Subtabs and Subtab Sheets
The "Head Nozzle Bypass Data" tab sheet is provided with the
following subtab sheets.
Table 3E6
Subtabs Description
Nozzle Bypass Factor
The corresponding subtab sheet enables the operator to check the
bypass factors of the nozzles selected on the left graphical nozzles.
Head Bypass Factor
The corresponding subtab sheet enables the operator to check the
bypass factors of the heads selected on the left graphical heads.
4.1 Head Nozzle Bypass Data
