6-9 AKFEDT -ID 0607-003 [3] PCB T ransfer Positioning Stage #1 and Stage #2 L->R1, R->L1 [mm] Each parameters are used to correct the positional deviations in PCB transfer positioning in comparison with "Suppo…
6-8
AKFEDT-ID
[1] Support pin up/down
NA and NC
B1 [mm]
This is the offset data for the origin position of the support pin up/down
axis which ascends or descends during PCB positioning.
A plus (+) value decreases the ascending stroke during PCB positioning.

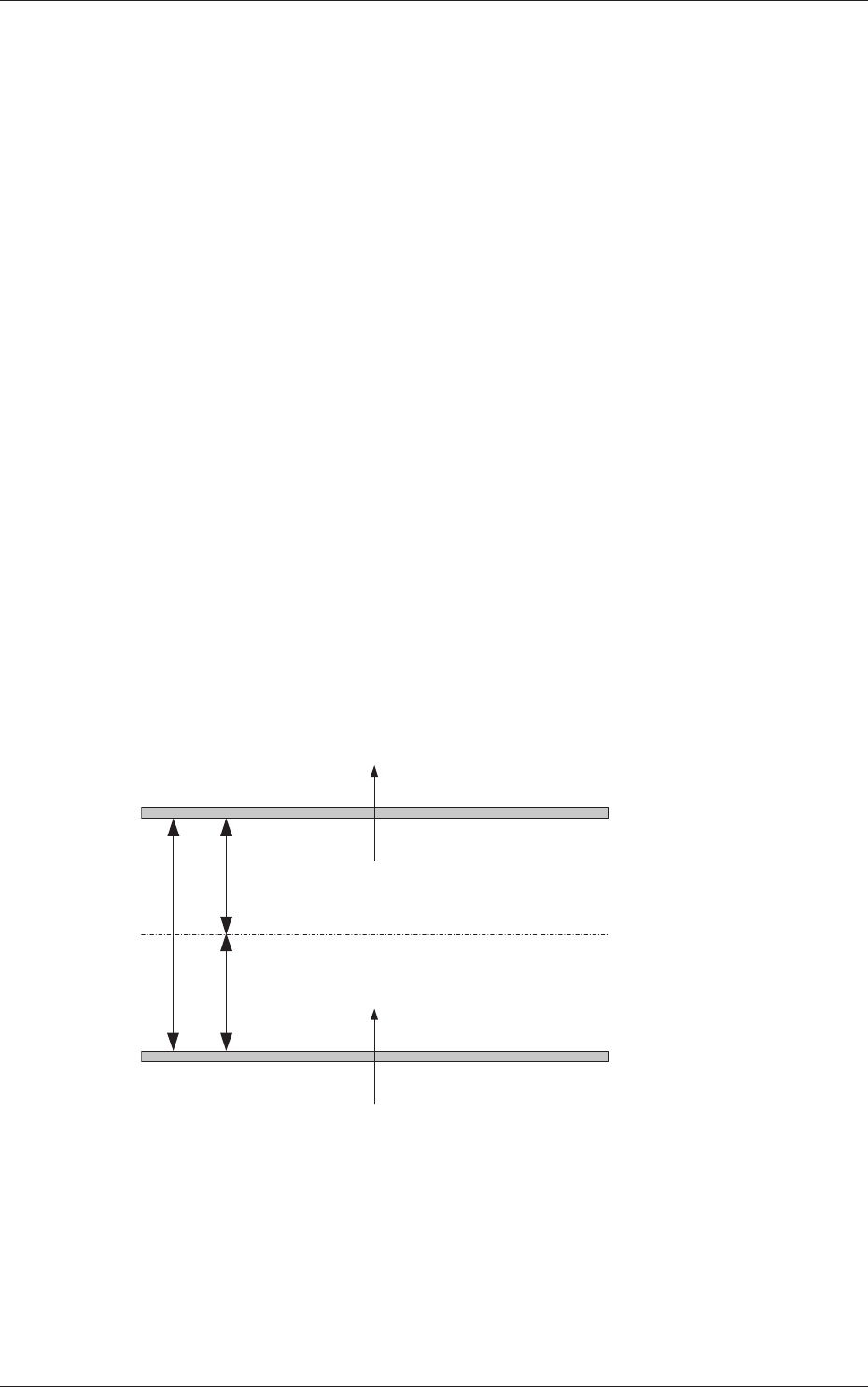

[2] Conveyor Width
NL, NB and NR
W1 and W2 [mm]
This offset is used to adjust the conveyor width to the absolute values.
When the conveyor width is set up to the specifi ed one based on
the positioning center, a difference will be caused in the dimension
between the actually measured value (the distance between the machine
positioning center and each chute) and the half of the specifi ed width. In
this case, enter the difference in each text box.
W1 Offset :
A plus value must be entered when the actually
measured width is narrower than the half of the
specifi ed one.
W2 Offset :
A minus value must be entered when the actually
measured width is narrower than the half of the
specifi ed one.
A
A/2
A/2
NL-W1
NR-W1
NB-W1
NL-W2
NR-W2
NB-W2
(+)
(-)
(+)
(-)
Fig. 3F9
0607-003
2.1 Device Offset Data
6-9
AKFEDT-ID
0607-003
[3] PCB Transfer Positioning
Stage #1 and Stage #2
L->R1, R->L1 [mm]
Each parameters are used to correct the positional deviations in PCB
transfer positioning in comparison with "Support pin up/down".

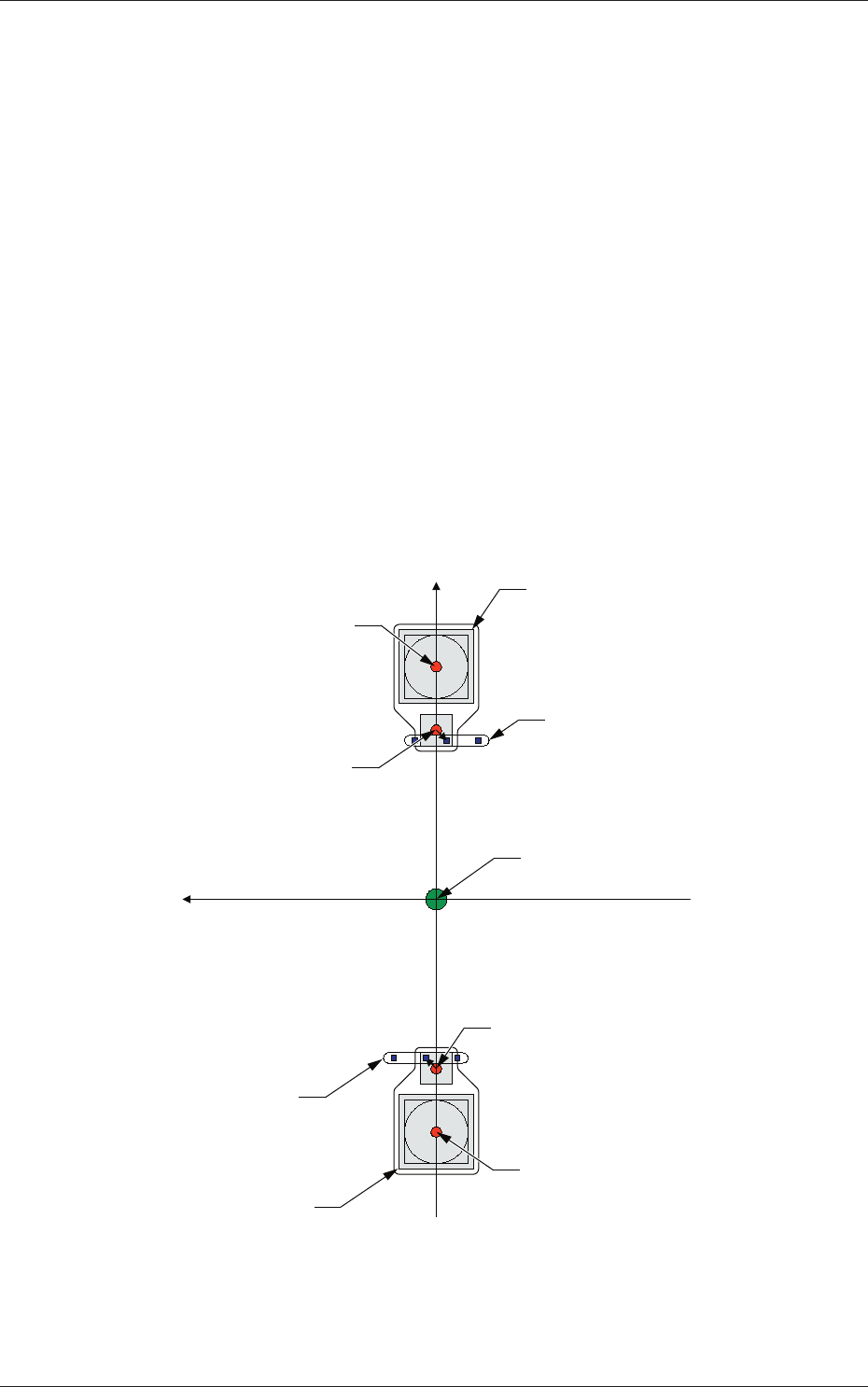

[4] Standard
Mark
Head #1, Head #2, Head #3, and Head #4
Mark(L), Mark(M), Mark(R)
X(Horizontal) and Y(V
ertical) [mm]
"Mark (M)" represents the standard mark position captured by the PEC
recognition camera when the rotational center of the head is moved to
the area above the component recognition camera.
"Mark (R)" and "Mark (L)" are the standard mark positions captured by
the PEC recognition camera when the pertinent nozzle is moved to the
center of the component recognition camera with the head being rotated
90
°
or 270
°
.
Xm (+)
Ym (+)
Component Recognition Camera
Component Recognition
Camera
Head Rotational Center
Head Rotational Center
Standard Mark
Standard Mark
Center of PEC Recognition Camera
Center of PEC Recognition
Camera
Pm. Machine Reference
Coordinate Origin
Fig. 3F10
2.1 Device Offset Data
6-10
AKFEDT-ID
[5] Standard mark adjustment (A)
The set parameters are used to adjust the deviations from the design
position of the standard mark acquired during the teaching operation of
the component recognition camera offsets.
Note
These parameters are used as reference values for the head rotational
center offset teaching.
[6] Standard mark adjustment (B)
The set parameters are used to adjust the deviations from the design
position of the standard mark acquired during the teaching operation of
the head rotational center offsets.
Note
The differences between "Standard mark adjustment (A)" and "Standard
mark adjustment (B)" are regarded as correction values for the head
rotational center offsets.
[7] Cutter
Block #1, Block #2, Block #3, and Block #4
Enter the parameters required to adjust the deviations in the cutter
adjustment position.
[8] Teaching Plate
Head #1, Head #2, Head #3, and Head #4
X (Horizontal), Y (Vertical), and L (Height) [mm]
Enter the parameters required to adjust the deviations based on the
design position of the jig depot.
[9] Linear-Measure Sampling Size
Head #1, Head #2, Head #3, and Head #4
Set the number of dirt detection scanning times to be conducted by the
linear measure sensor of each head.
[10] Component Storage Box
Block #1, Block #2, Block #3, and Block #4
X (Horizontal), Y (Vertical), and L (Height) [mm]
The set parameters are used to correct the deviations from the design
position of the component storage box.
0601-002
2.1 Device Offset Data
