2.1.8 Head Rotational Center Offset
When the "Head" tab is pressed in the "Device Offset" tab sheet and the "Hd
Center" tab is selected, the following tab sheet appears.

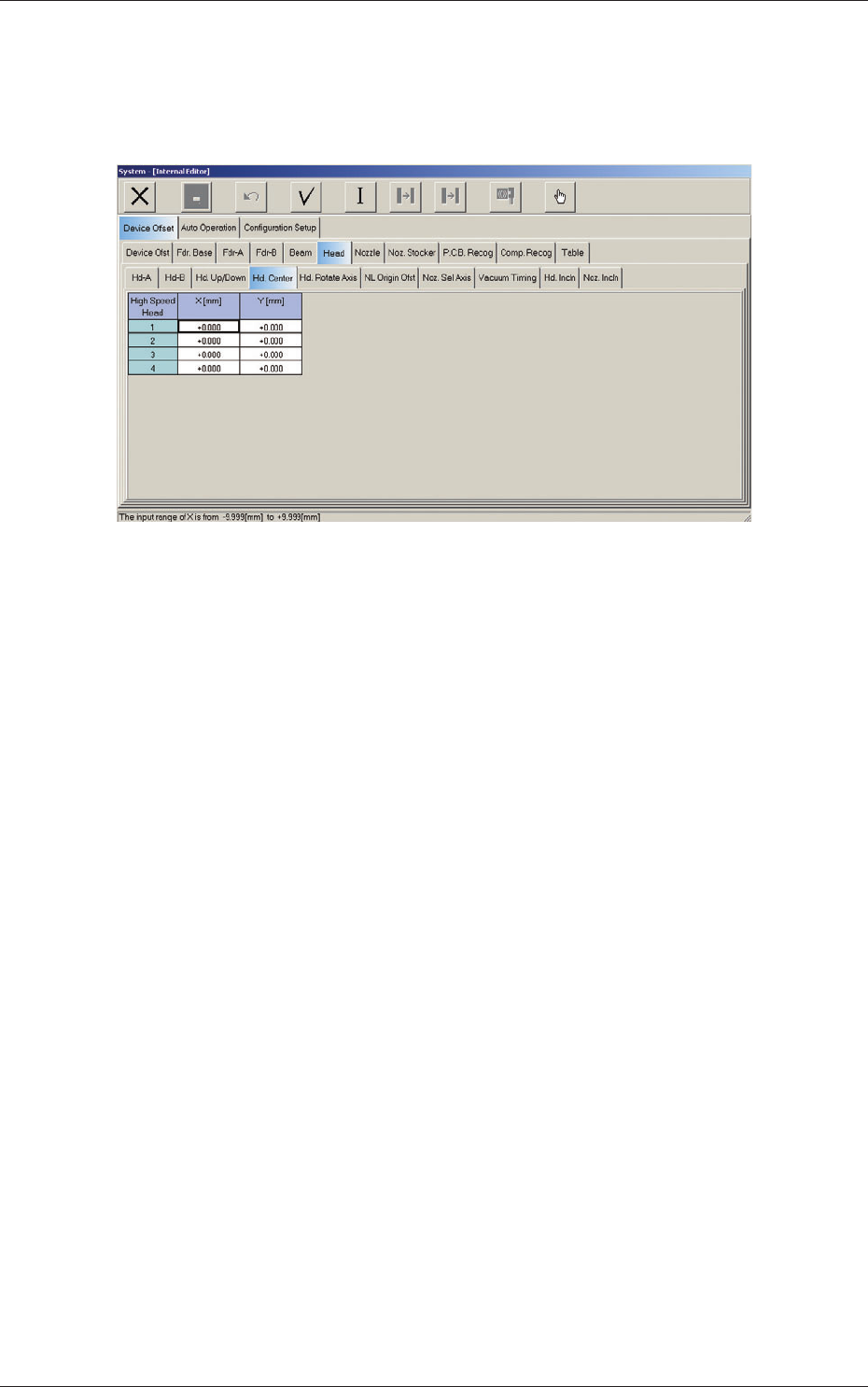

Fig. 3F22 "Head Center" Tab Sheet
0607-003
2.1 Device Offset Data
6-24
AKFEDT-ID
Head 1, Head 2, Head 3, and Head 4
X (Horizontal), Y (Vertical) [mm]
The set parameters are used to adjust the deviations in the design value
between the head rotational center and the center of the PEC recognition
camera.
Xm (+)
Ym (+)
Xm-Ym : Machine Reference
Coordinate System
Center of PEC Recognition Camera
Center of PEC Recognition Camera
Head Rotational Center
Head Rotational Center
Pm. Machine Reference
Coordinate Origin

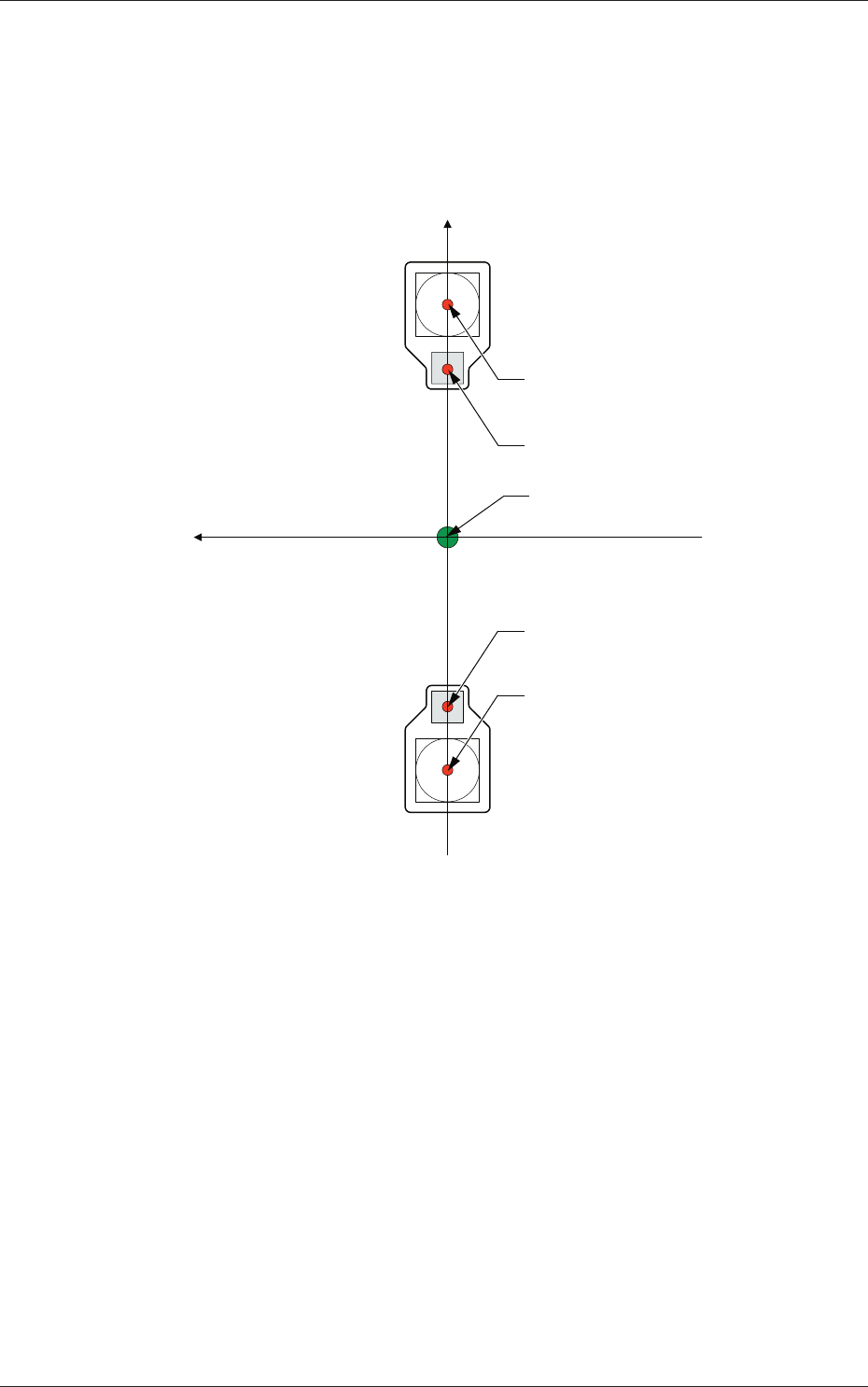

Fig. 3F23
0601-002
2.1 Device Offset Data
6-25
AKFEDT-ID
2.1.9 Head Rotational Angle Axis Offset
When the "Head" tab is pressed in the "Device Offset" tab sheet and the "Hd
Rotate Axis" tab is selected, the following tab sheet appears.

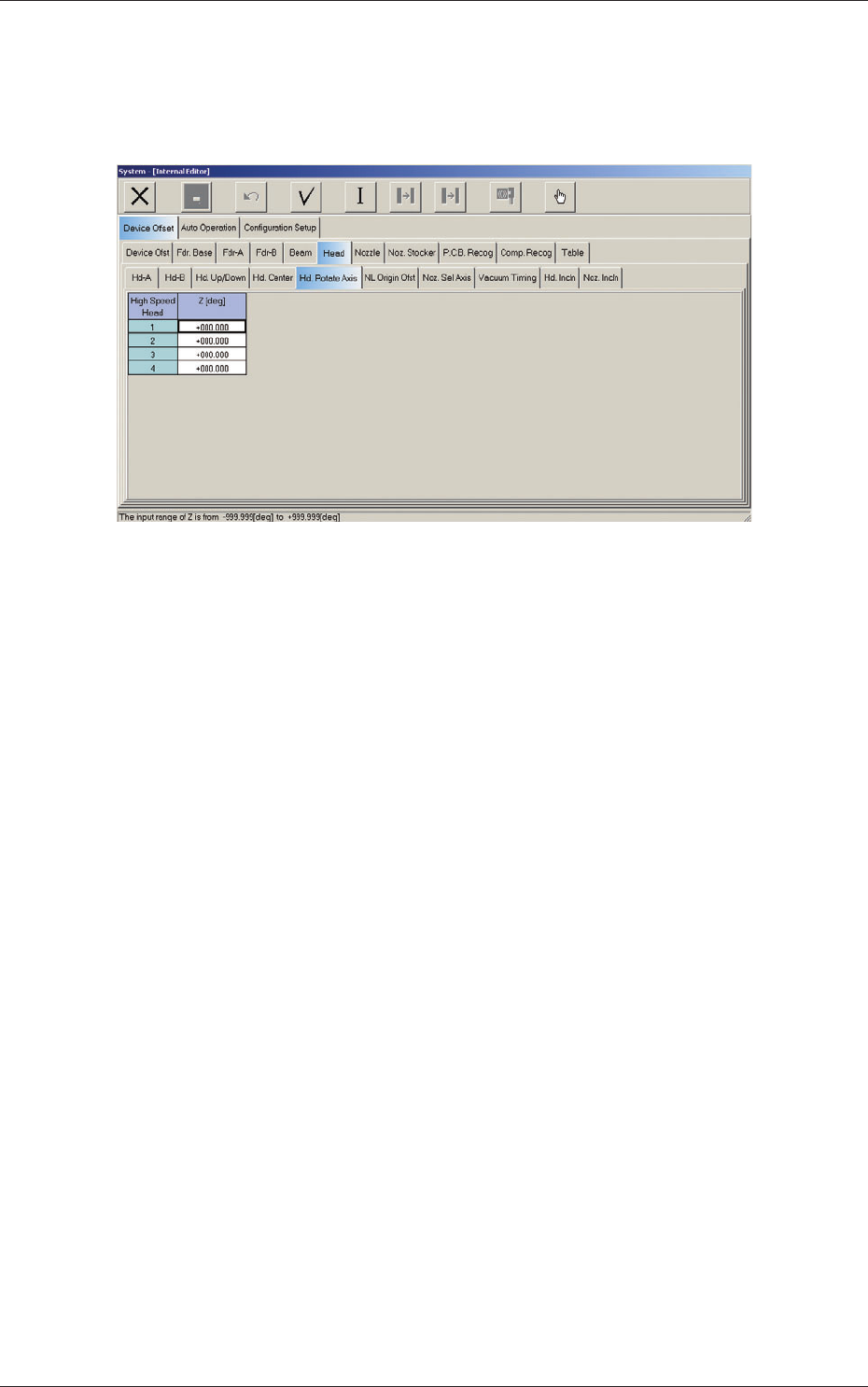

Fig. 3F24 "Head Rotate Axis" Tab Sheet
0607-003
