6-61

AKFEDT-ID

2.2.2 PCB Transfer Mode Setup

When the "PCB Transfer Mode Setup" tab is pressed in the "Auto Operation"

tab sheet, the following tab sheet appears.

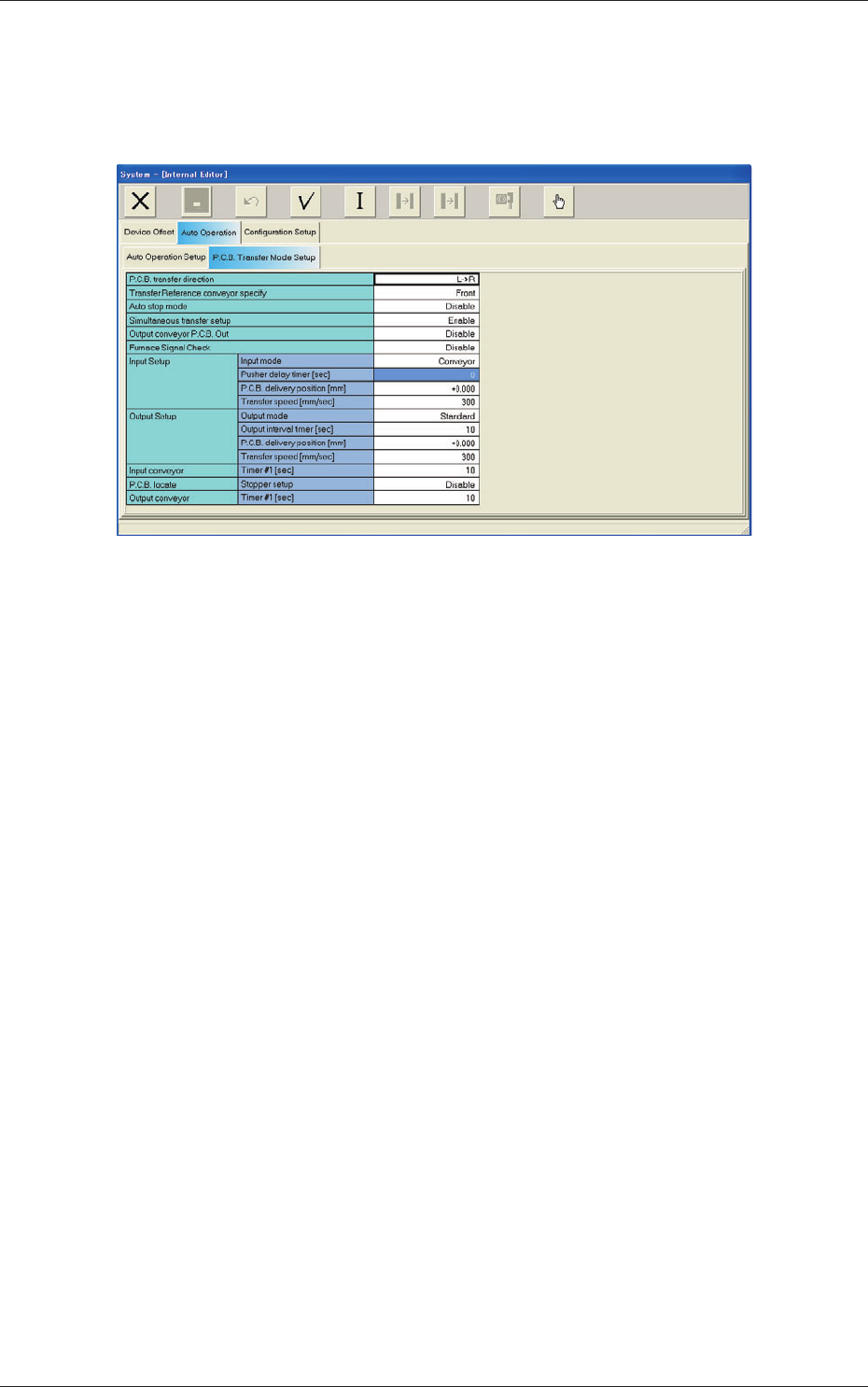

Fig. 3F55 "PCB Transfer Mode Setup" Tab Sheet 1

0604-003

2.2 Auto Operation

6-62

AKFEDT-ID

[1] PCB transfer direction

Select one of the following options to determine the PCB transfer

direction.

→

R :

The PCB ﬂ ows from the left to the right.

→

L :

The PCB ﬂ ows from the right to the left.

Note

When the setting is changed, it is required to perform the zeroing operation

again.

[2] Transfer Reference conveyor specify

Select one of the following options to determine the transfer reference

side for the PCB transfer.

Rear :

The rear side is speciﬁ ed as a transfer reference.

Front :

The front side is speciﬁ ed as a transfer reference.

[3] Auto stop mode

"Enable" or "Disable" can be set in this text box to determine whether

or not the automatic stop function should be used.

"Enable" in "Auto stop mode" Text Box (Standard Setting)

The machine stops when the automatic operation is started by pressing

the [START] button with the machine in the initialized mode (no PCB

on the machine, the machine is waiting for a PCB to be sent from the

input machine and detects that "RUN" signal has stopped coming

from the input machine, and the machine is kept in the condition for 2

seconds.

This function is based on the concept that it will be necessary to

continue automatic operation of the machine when there is no PCB on

the machine and the input machine is not running automatically because

it is apparent that no PCB can be transferred to the machine anymore.

The machine stops automatically when a PCB on the machine is

processed without unprocessed PCB left on the machine and the input

machine is stopped after the last processed PCB on the machine has

been transferred to the output machine.

Note

(a) When the machine is connected to another machine manufactured by

another company, this function may not be activated.

(b) When "SMEMA" is set in the "Input mode" text box of the label

"Input Setup" or in the "Output mode" text box of the label "Output

Setup", this function cannot be used.

2.2 Auto Operation

0607-003

6-63

AKFEDT-ID

[4] Simultaneous transfer setup

Set "Enable" or "Disable" to determine whether or not the PCB transfer

should be made simultaneously between the input and positioning

conveyors and between the positioning and output conveyors.

Enable :

The simultaneous transfer setup function is

used.

Disable (Independent) :

The simultaneous transfer setup function is

not used.

Disable (Asynchronous) :

When a PCB to be discharged passes

through the input sensor on the output

conveyor, the machine starts to take in the

subsequent PCB.

[5] Output conveyor PCB Out

Set "Disable" or "Enable" to determine whether or not a disengaged

PCB should be detected in the output conveyor section.

[6] Furnace Signal Check

Set "Disable" or Enable" to determine whether or not the furnace signal

check function should be activated.

Note

When "SMEMA" is set in the "Input mode" text box of the label "Input

Setup" or in the "Output mode" text box of the label "Output Setup", this

function cannot be used.

2.2 Auto Operation

0607-004
