2.3 Conﬁ guration Setup Data

2.3.1 Light Tower Setup

The corresponding tab sheet enables the operator to allocate the lamp colors

for the light tower and the buzzer sounds.

When the "Light Tower Setup" tab is pressed in the "Conﬁ guration Setup"

tab sheet, the following tab sheet appears.

[4]

[2] [3]

[1]

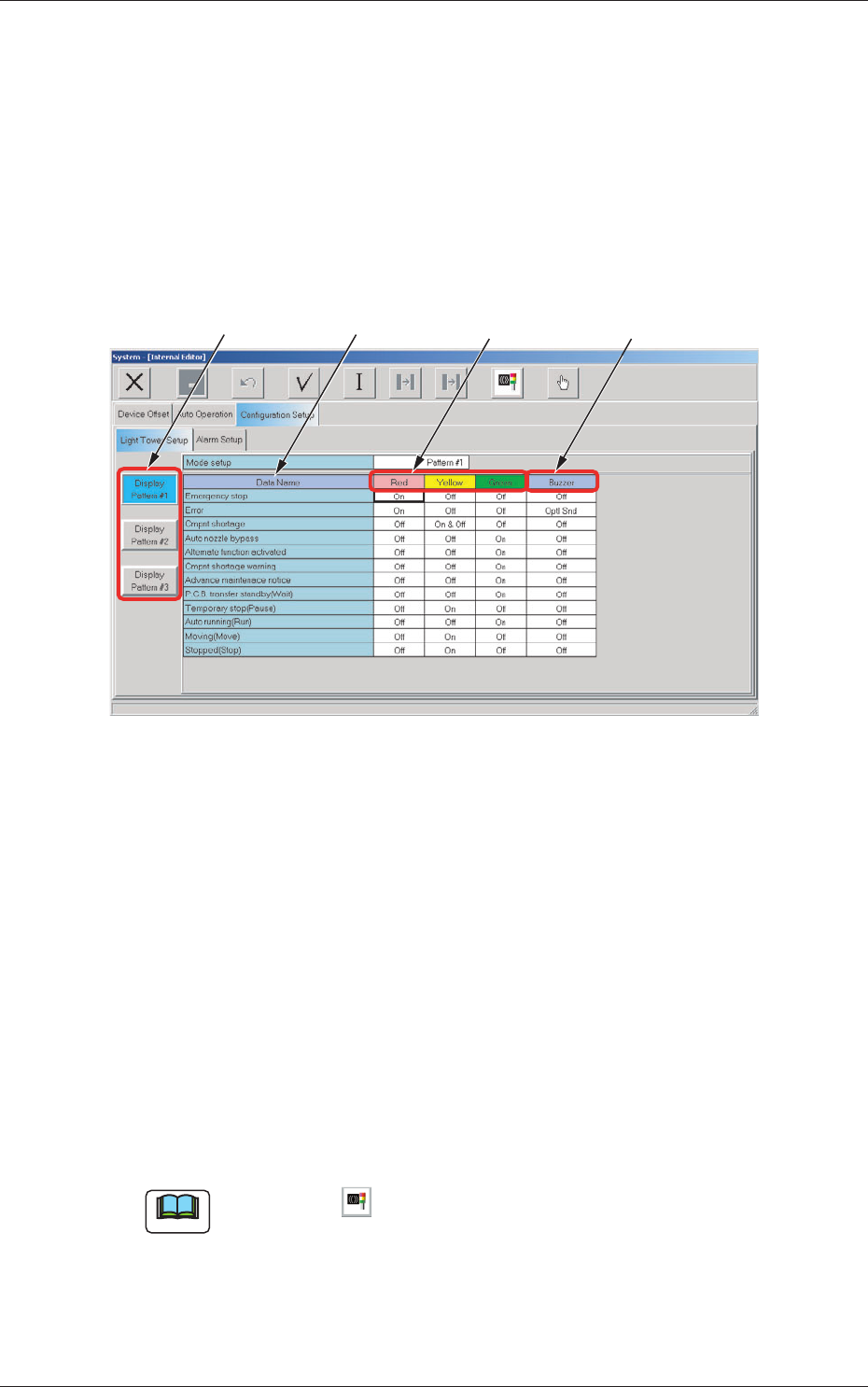

Fig. 3F57 "Light Tower Setup" Tab Sheet

[1] Data Name

Displayed are the items for which the colors (red, yellow, and green) of

the tower lights and the types of alarm sounds should be speciﬁ ed.

[2] Red, Yellow, Green

Set "ON", "ON AND OFF", or "OFF" for the tower lights (red, yellow,

and green).

[3] Buzzer

Set "Off", "Intmt Snd", "Cont Snd", or "Optl Snd" in each text box to

specify the types of alarm sounds.

The desired sound patterns can be made, using the "Alarm Setup" tab

sheet.

Note

When the icon ( ) is pressed, the standard settings (defaults) resume.

2.3 Conﬁ guration Setup Data

6-68

AKFEDT-ID

[4] Tower Light ON/OFF Selection Buttons

[Display Pattern #1], [Display Pattern #2], and [Display Pattern

#3] Buttons

These buttons can be used to change the setting of each tower light.

When one of these buttons is selected, the corresponding lighting

pattern appears, enabling you to change the settings.

0604-003

2.3 Conﬁ guration Setup Data

6-69

AKFEDT-ID

2.3.2 Alarm Setup

The corresponding tab sheet enables the operator to specify a pattern of the

buzzer sounds when "Optl Snd" is selected in a buzzer text box of the "Light

Tower Setup" tab sheet.

When the "Alarm Setup" tab is pressed in the "Conﬁ guration Setup" tab

sheet, the following tab sheet appears.

[1]

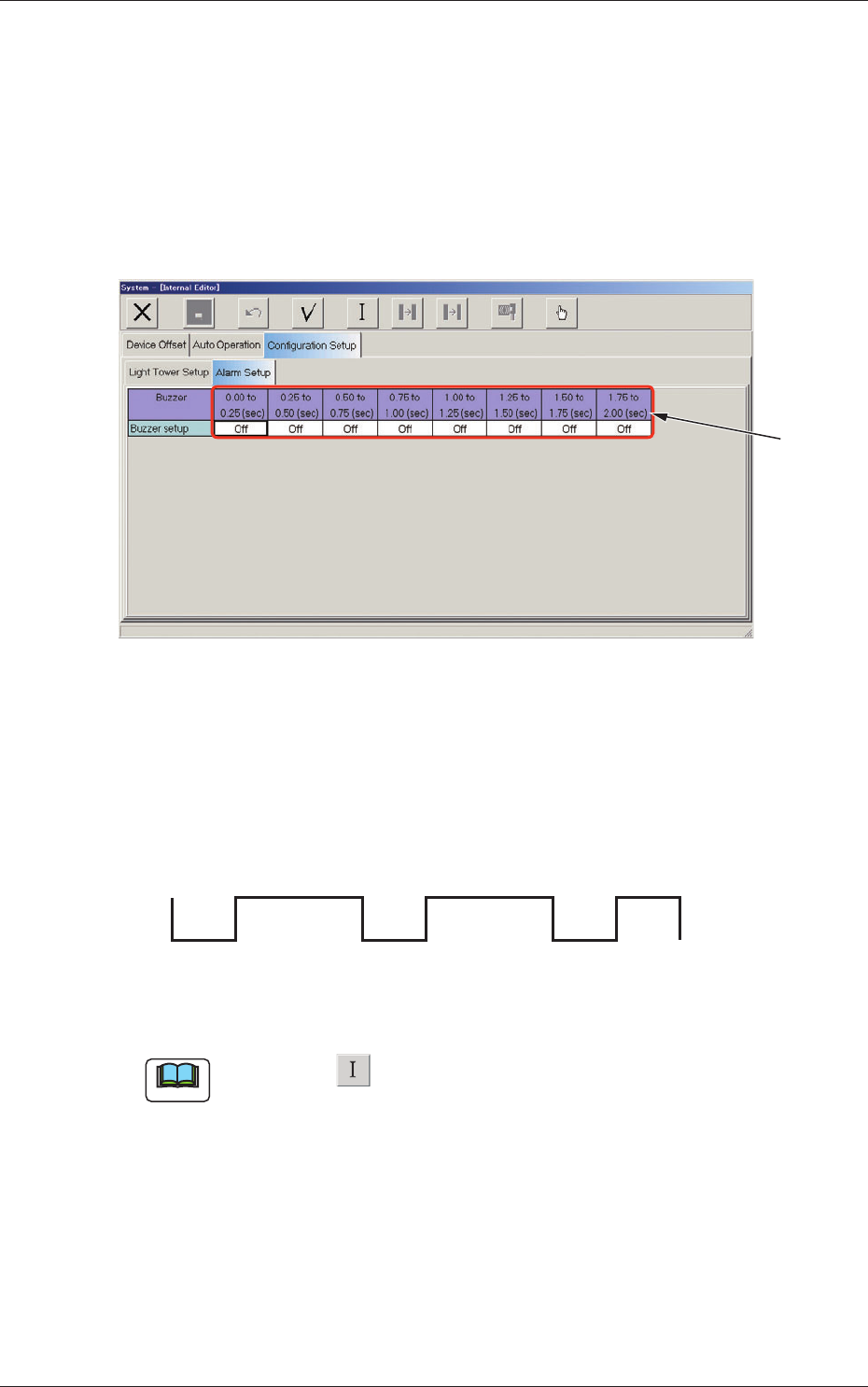

Fig. 3F58 "Alarm Setup" Tab Sheet

[1] Time Parameters

An optional alarm sounds in a cycle of two seconds. The two seconds is

divided into 8 intervals and each interval is assigned as "ON" or "OFF"

to make a sound of your own.

OFF OFF

ON ON ON ON ON

OFF

Fig. 3F59 Example of Buzzer Sound Setting

Note

When the icon ( ) is pressed, the parameter speciﬁ ed in the selected

text box is initialized to the default.

0601-002

2.3 Conﬁ guration Setup Data
