2-5
AKFEDT-ID
2. Method of Data Entry
The following describes how to enter a numerical value and select an option
in a data edit tab sheet.
2.1 How to enter numerical values
Follow the procedure below to enter numerical values in the text boxes that
require numerical values.
Fig. 3B2 Keyboard and Track ball
Parameters can be entered through keyboard navigation.
(1) To enter a parameter, press the text box quickly twice. Or, double-click
the text box with a track ball.
Fig. 3B3
The text box is set ready for data entry.
Fig. 3B4
(2) When a parameter is entered through keyboard navigation and the [Enter]
key is pressed, it is set in the text box.
Fig. 3B5
0601-002
2. Method of Data Entry
2-6
AKFEDT-ID
2.2 How to enter a string of characters
A string of characters can be entered by selecting an item from the drop-
down list, through keyboard navigation.

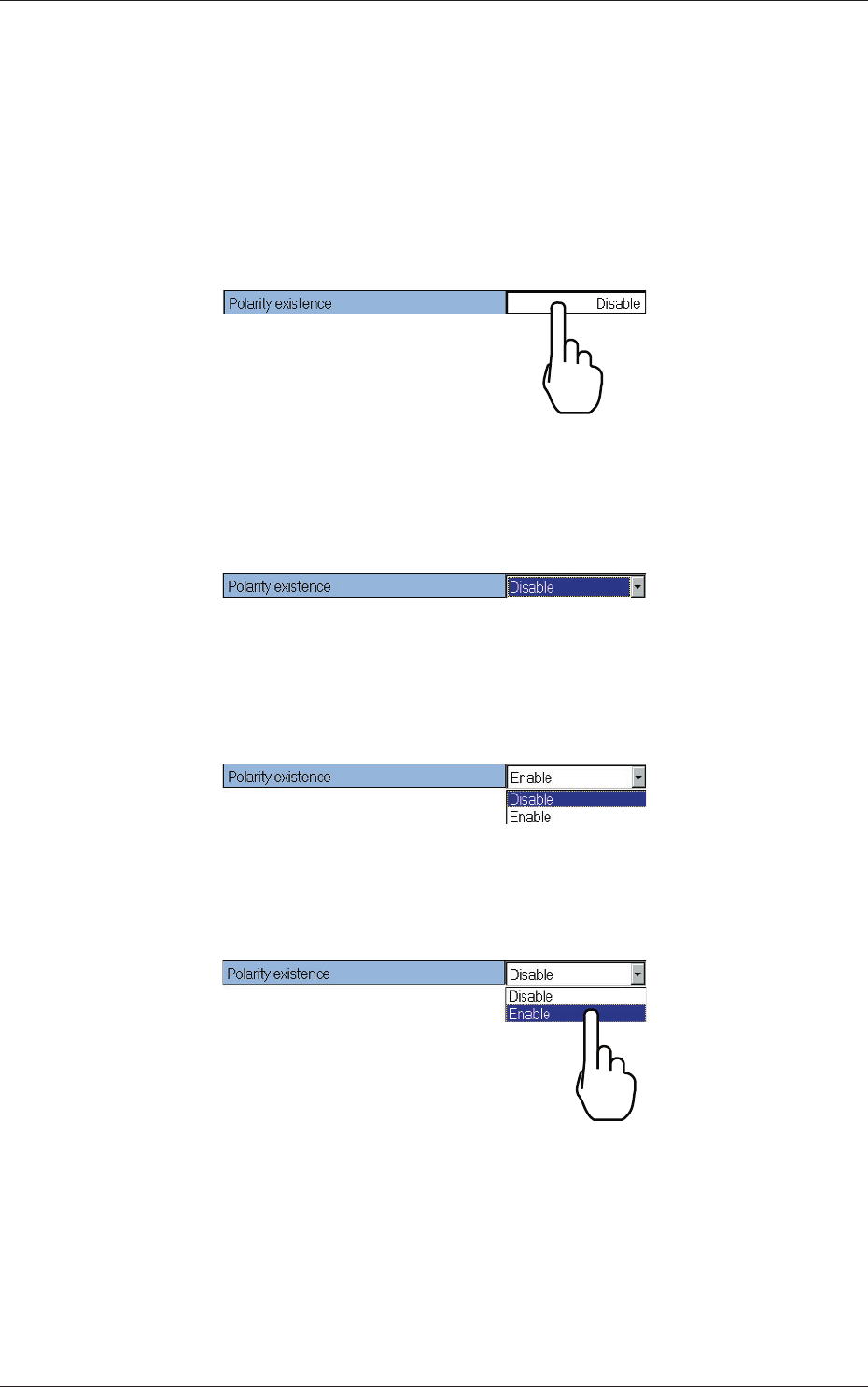

Selection of Option in Drop-Down List
(1) To enter a string of characters, press the text box quickly twice. Or,
double-click the text box with a track ball.
Fig. 3B6
A text box is changed to a combo box that has a down arrow on the
right side.
Fig. 3B7
(2) Press the down arrow. Or, click the downward arrow with a track ball.
The drop-down list box opens.
Fig. 3B8
(3) When the desired option in the list is pressed, it is set in the text box.
Fig. 3B9
0601-002
2.2 How to enter a string of characters
2-7
AKFEDT-ID
Note
When there are may options, a scrollbar appears beside the list. To make
more options visible, scroll down the list and select the desired option.
Fig. 3B10
To enter a comment through keyboard navigation
(1) Press the
"
Comment
"
text box quickly twice.
Or, double-click the text box with a track ball. The text box is set ready
for data entry.
Fig. 3B11
(2) When data is entered through keyboard navigation and the [Enter] key
is pressed, the data is set in the text box.
