MODEL CU-G 300L 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 205 6301099491 BEARING,RADIAL 2 862DC-100-205 222D0376 206 6301354279 BEARING,THRUST 1 862DC-100-206 222E0017 207 6301369440 BEARING,RADI…
MODEL CU-G300L
0712-002
See Fig.DC-1
Key No.16
233
236
252
.
273
.
263
248
217
246
210
266
221
222
250
253
268
253
258
235
257
257
231
231
218
205
219
237
206
249
214
252
257
254
.
273
.
263
215
257
.
272
.
276
216
207
220
230
245
252
.
273
.
263
242
224
211
253
243
224
211
253
240
BLOCK4
229(Optional Parts)
227(Optional Parts)
228(Optional Parts)
226(Optional Parts)
注)
Key No.231(○印)の交換は危険を伴いますので、当社サービス員にご相談下さい。
Notice) The change of Key No. 231 (with a circle) is accompanied by danger
. Consult our
service personnel.
カッタ部

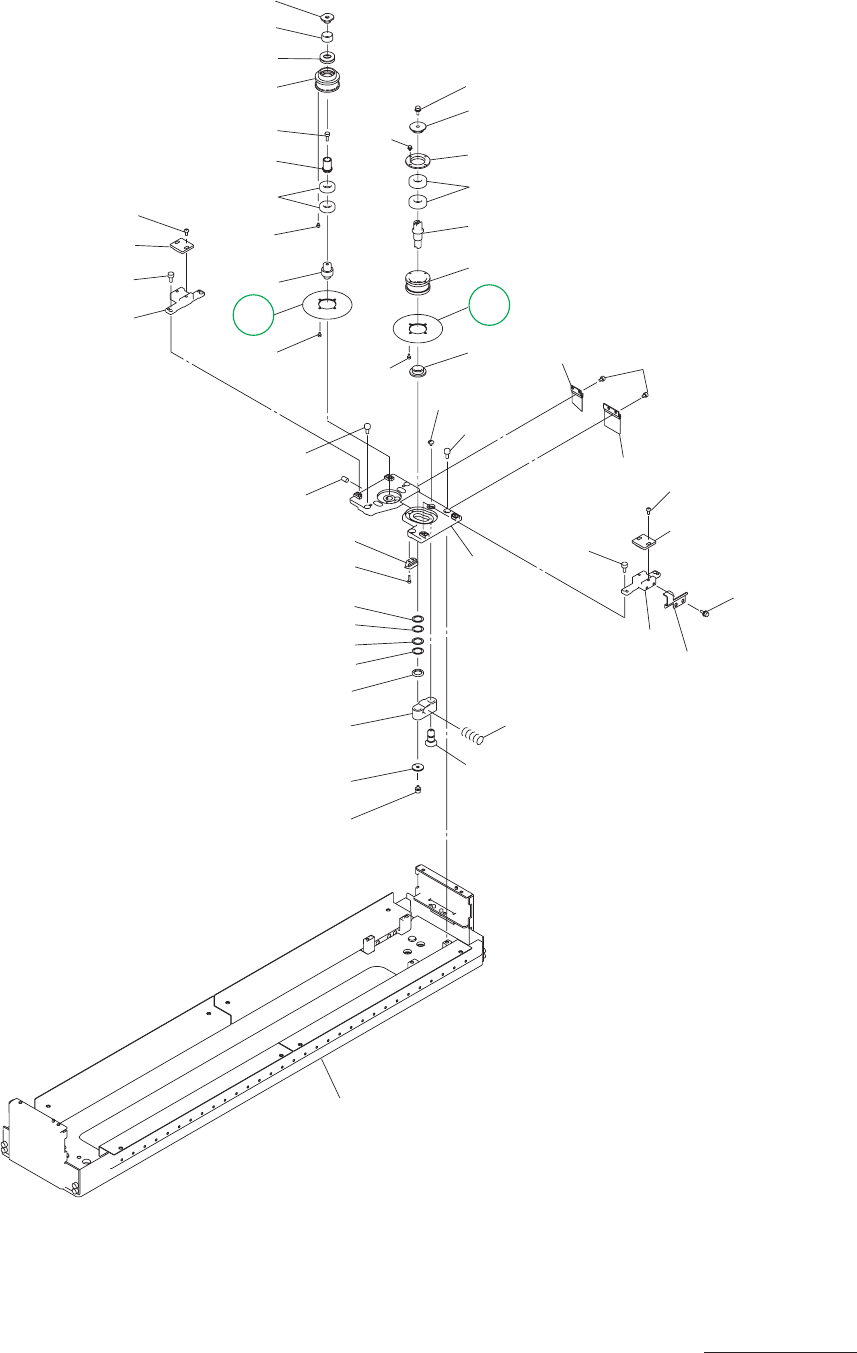

DC CUTTER SECTION DC
Fig. DC-3
カッタ部
Cutter Section
DC-3 illust-2
MODEL CU-G300L
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
205 6301099491 BEARING,RADIAL 2 862DC-100-205 222D0376
206 6301354279 BEARING,THRUST 1 862DC-100-206 222E0017
207 6301369440 BEARING,RADIAL(ANGYURA) 2 862DC-100-207 222D0412
210 6301588032 BLOCK 1 862DC-100-030 211G5452
211 6301563077 BLOCK 2 862DC-100-031 211G5305
214 6301365084 HOLDER 1 862DC-100-034 216B1514
215 6301369808 HOLDER 1 862DC-100-035 216B1519
216 6301365565 HOLDER 1 862DC-100-036 216B1516
217 6301364674 SHAFT 1 862DC-100-037 213A1197
218 6301525952 SHAFT 1 862DC-100-038 213A1411
219 6301365077 SHAFT 1 862DC-100-039 213A1201
220 6301365541 SHAFT 1 862DC-100-040 213A1205
221 6301364599 COVER 1 862DC-100-221 211A9719
222 6301576541 MECH PARTS 1 862DC-100-222 226J2396
224 6300690644 BOLT 4 862DC-100-224 221E0129
226 6301493824 PLATE 1 T0.1 862DC-100-226 211DC026
227 6301493831 PLATE 1 T0.2 862DC-100-227 211DC027
228 6301493848 PLATE 1 T0.3 862DC-100-228 211DC028
229 6301493855 PLATE 1 T0.05 862DC-100-229 211DC029
230 6301376028 SEAL 1 862DC-100-230 226A0256
231 6301579795 DISK 2 862DC-100-071 213D1294
233 6300010206 WASHER 1 BW3 862DC-100-233 221H0003
235 6301364568 GUIDE 1 862DC-100-045 212A2212
236 6301364575 GUIDE 1 862DC-100-046 212A2213
237 6301467191 GUIDE 1 862DC-100-047 212A2351
238 6301370002 GUIDE 1 862DC-100-048 212A2226
240 6301588650 BASE 1 862DC-100-050 210A2899
242 6301577203 BASE 1 862DC-100-052 210A2882
243 6301577241 BASE 1 862DC-100-053 210A2884
245 6301555164 BRACKET 1 862DC-100-020 211FC164
246 6301366678 LEVER 1 862DC-100-066 216S2815
248 6301359762 SPRING,COMP 1 862DC-100-058 222M1373
249 6301367088 SPRING,COMP 1 862DC-100-059 222M1378
250 6300007497 BOLT,HEX-SCT 4 M3X4 862DC-100-250 221A0004
252 6300007510 BOLT,HEX-SCT 4 M3X8 862DC-100-252 221A0006
253 6300007619 BOLT,HEX-SCT 8 M4X8 862DC-100-253 221A0016
254 6300007541 BOLT,HEX-SCT 1 M3X14 221A0009
257 6300083057 BOLT,HEX-SCT 16 M2X4 862DC-100-257 221A0121
258 6300008883 SET SCREW 1 M3X4 SET 221C0001
263 4111413902 WASHER V 3X7X0.5 4 862DC-100-263 221H0312
266 6300081114 BOLT,HEX-SCT 2 M2X8 221A0115
268 4111407901 SCR TRS 3X4 1 862DC-100-268 221E0528
272 4111412608 WASHER SPR 2 4 862DC-100-272 221H0277
273 4111412806 WASHER SPR 3 4 862DC-100-273 221H0281
276 4111416903 WASHER V 2X5X0.3 4 862DC-100-276 221H0308
DC-3
GXH-3J 1Unit/1Machine
GXH-3
2Unit/1Machine
DC-3 list-1
