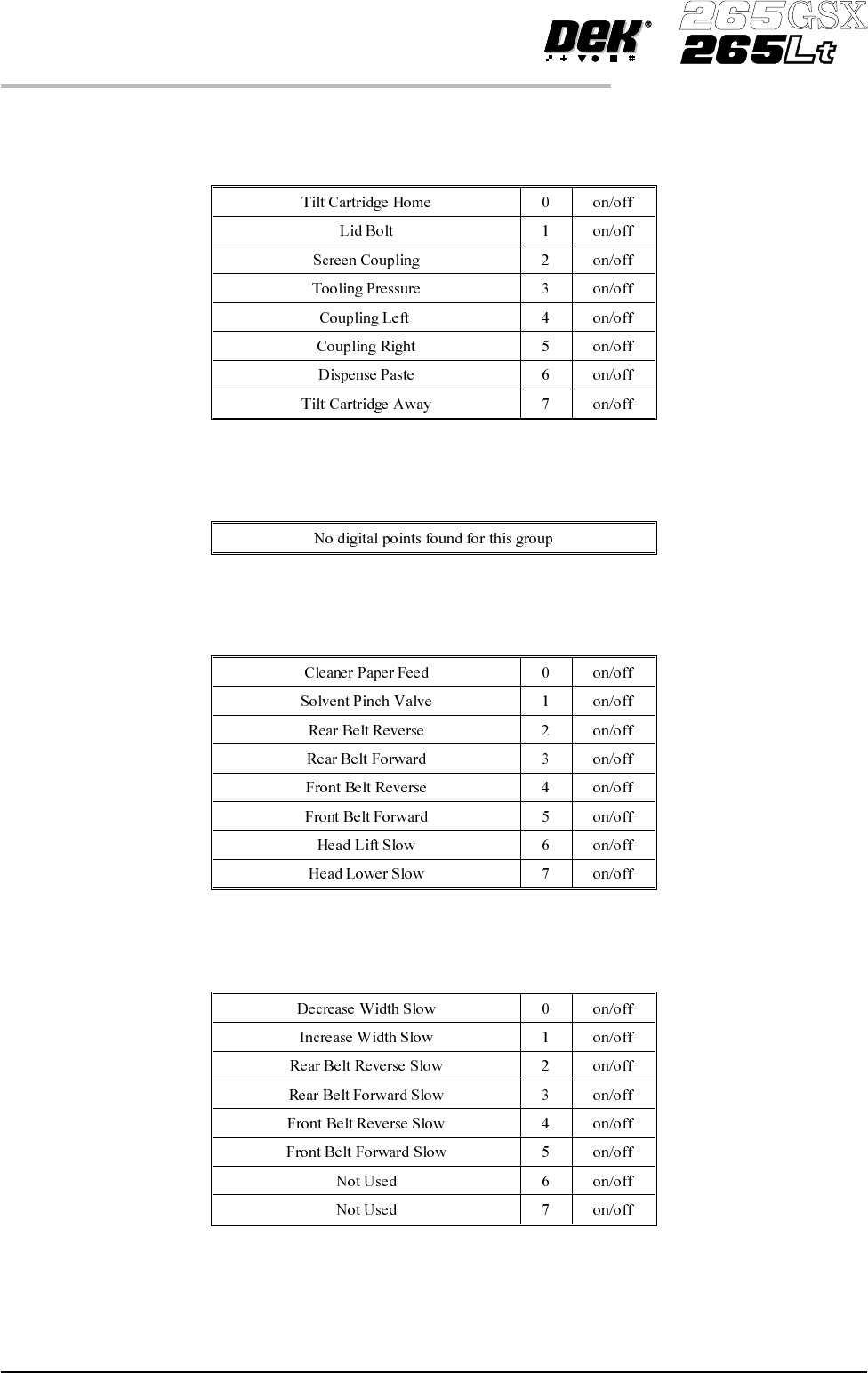

Outputs - PCIB40#2 Group 2 (Cards X1 - X4, Y1 Electronic Enclosure) Outputs - PCIB40#2 Group 3 If FPA is fitted PCIB40#2 Group 3 is reconfigured from outputs to inputs as follows: Inputs - PCIB40#2 Group 3 Tooling Jumper…
Outputs - PCIB40#1 Group 3 (Card X4, Y2 Electronic Enclosure)
Outputs - PCIB40#1 Group 4

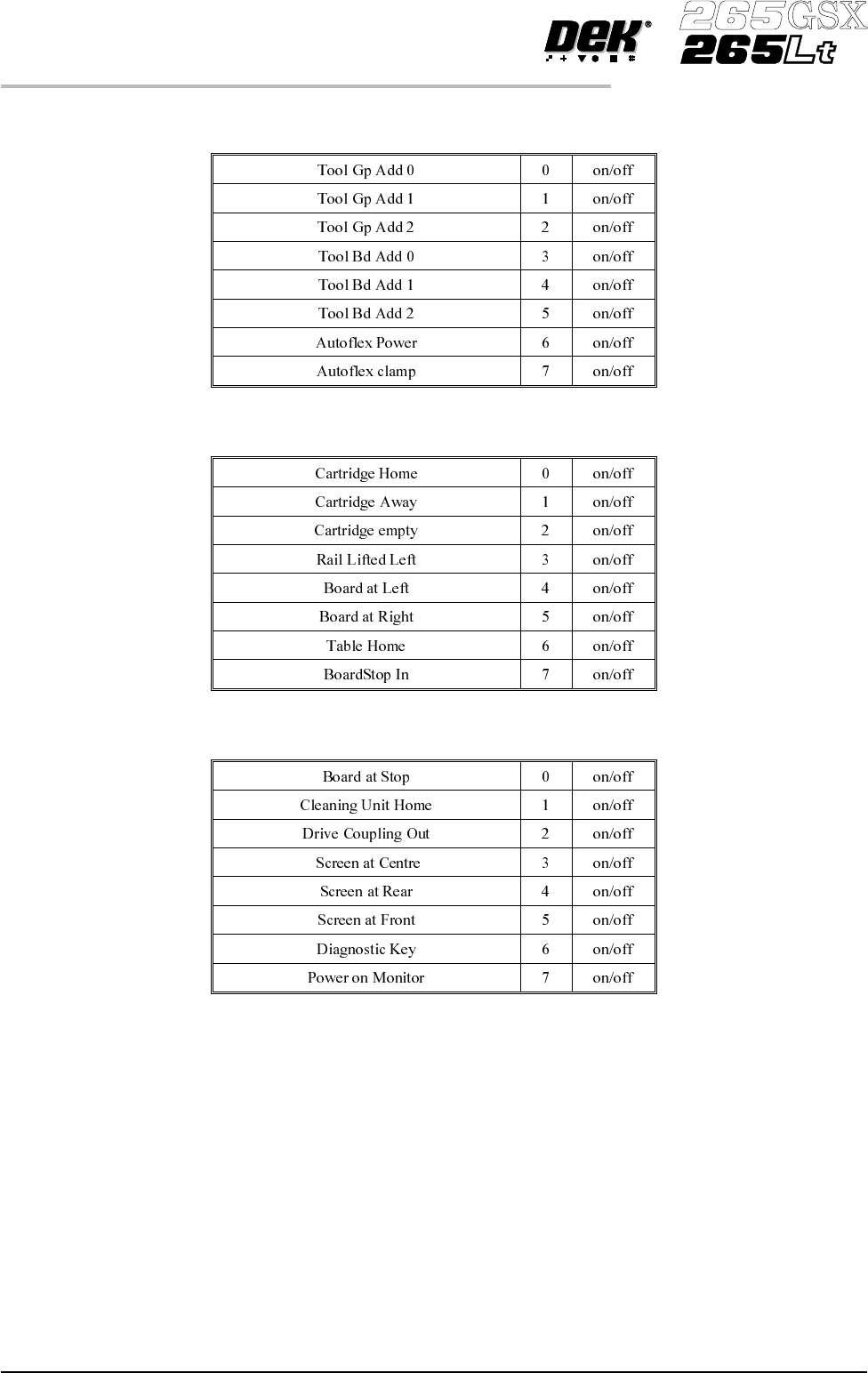

Outputs - PCIB40#2 Group 0 (Card X5, Y2 Electronic Enclosure)
Outputs - PCIB40#2 Group 1 (Card X5, Y2 Electronic Enclosure)
5.6 User Manual Software Version 6
DIAGNOSTICS
SYSTEM
Outputs - PCIB40#2 Group 2 (Cards X1 - X4, Y1 Electronic Enclosure)
Outputs - PCIB40#2 Group 3
If FPA is fitted PCIB40#2 Group 3 is reconfigured from outputs to inputs as
follows:

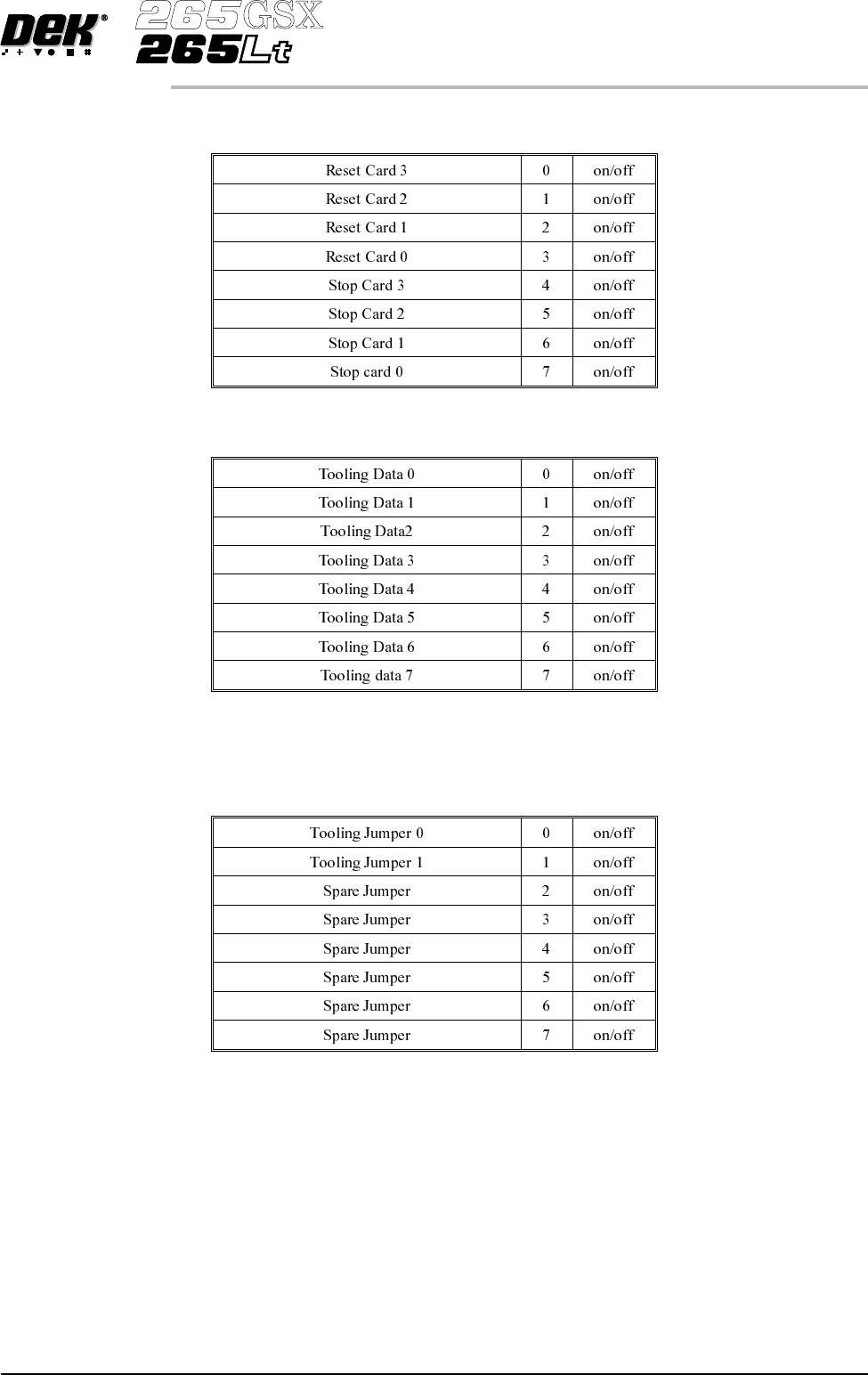

Inputs - PCIB40#2 Group 3
Tooling Jumper 0 and Tooling Jumper 1 form a two bit binary number as
follows:
0 FPA not fitted
3 FPA fitted
Software Version 6 User Manual 5.7
DIAGNOSTICS
SYSTEM
Outputs - PCIB40#2 Group 4
Inputs - PCIB40#3 Group 0
Inputs - PCIB40#3 Group 1
5.8 User Manual Software Version 6
DIAGNOSTICS
