HOST COMMS For information on the Host Comms function see the Host Communications Chapter. Software Version 6 User Manual 6.3 MONITOR HOST COMMS
LOG ON/OFF
Log On This function identifies the user of the machine. To log on to the machine
proceed as follows:
1.
Select Log On.
Log
On

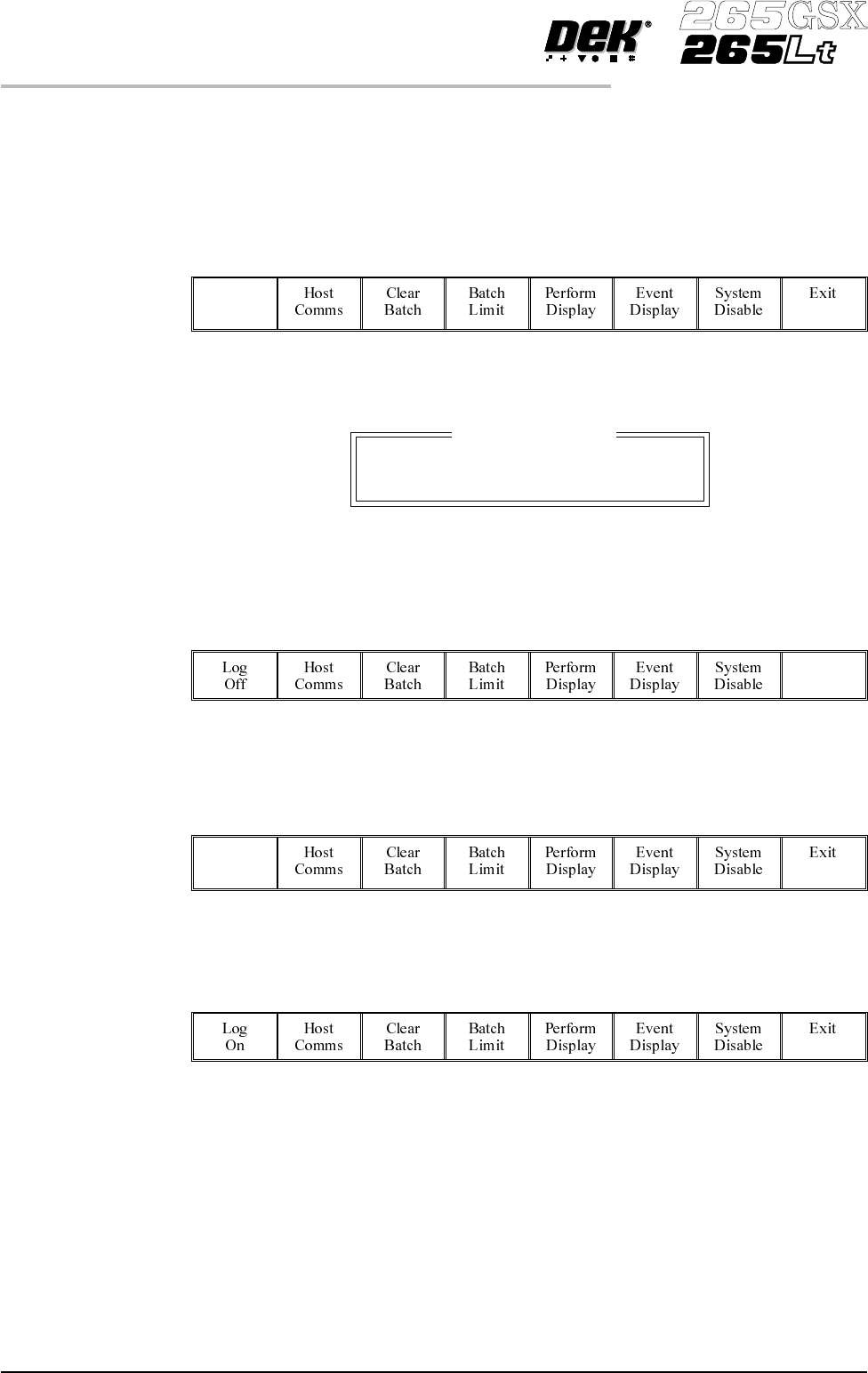

The Operator Log On window is displayed as follows:
2.
Using the keyboard enter the operator’s name/ID and press Enter, the
operator’s name/ID appears on the status page.
3.
Select Exit.
Exit
Log Off To log off from the machine proceed as follows:
1.
Select Log Off.
Log
Off

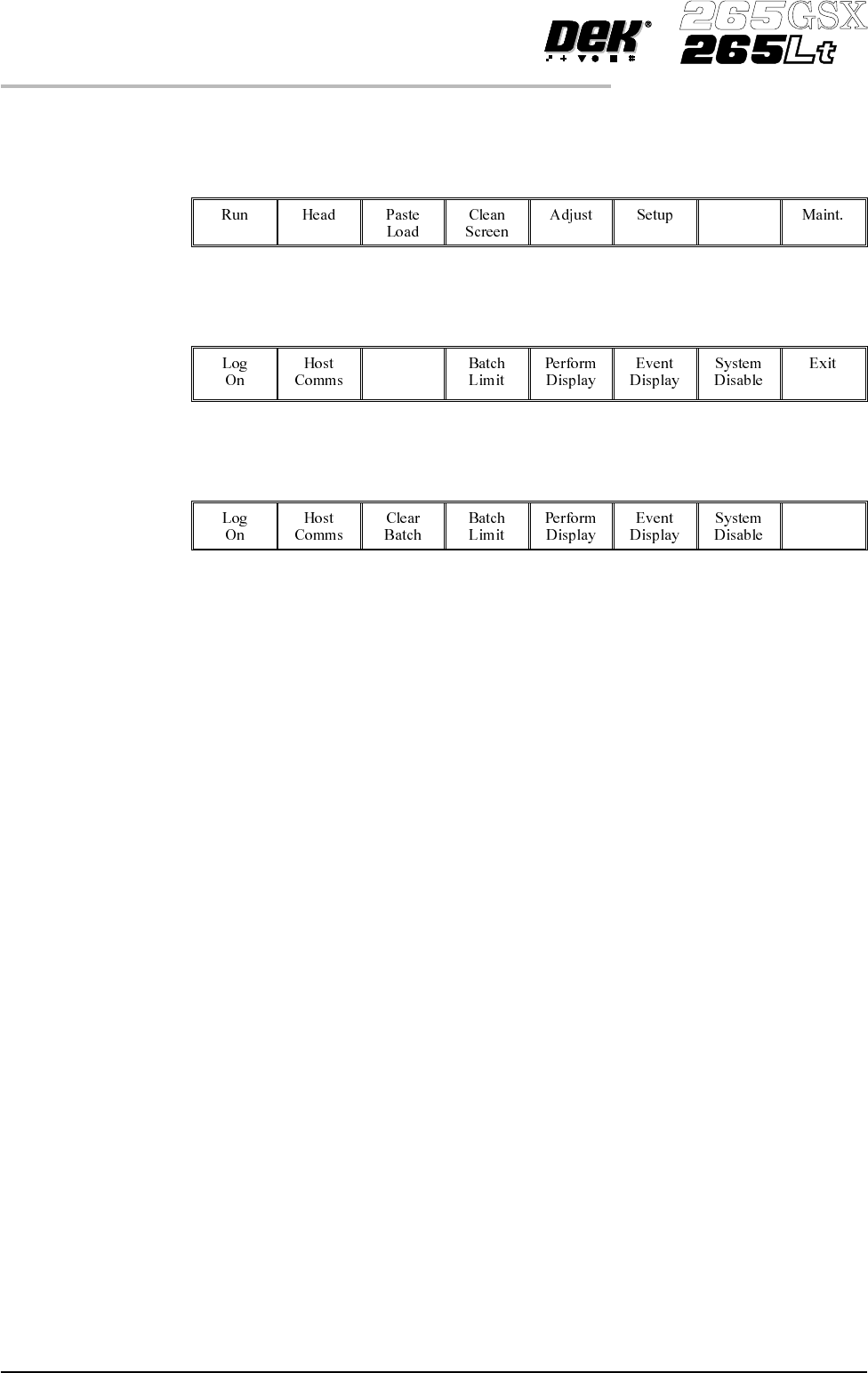

2. The operator’s name/ID is removed from the status page and the menu bar
changes to the following:
6.2 User Manual Software Version 6
MONITOR
LOG ON/OFF
Operator Log On
Enter Operator ID:
HOST COMMS For information on the Host Comms function see the Host Communications
Chapter.
Software Version 6 User Manual 6.3
MONITOR
HOST COMMS
CLEAR BATCH Allows the user to reset cycle time, batch count, board count and throughput
information on the status page. To reset the batch proceed as follows:
1.
Press Monitor.
Monitor
2.
Press Clear Batch.
Clear
Batch
3.
Press Exit.
Exit
6.4 User Manual Software Version 6
MONITOR
CLEAR BATCH
