Shape Recognition To recognize shapes other than rectangles the inspection system counts the
pixels within the box graphic. By identifying which pixels have similar grey
scale levels, the system can distinguish between board and pad. An example of
how this is achieved is given below.
8.6 User Manual Software Version 6
2Di INSPECTION
MODULE OVERVIEW

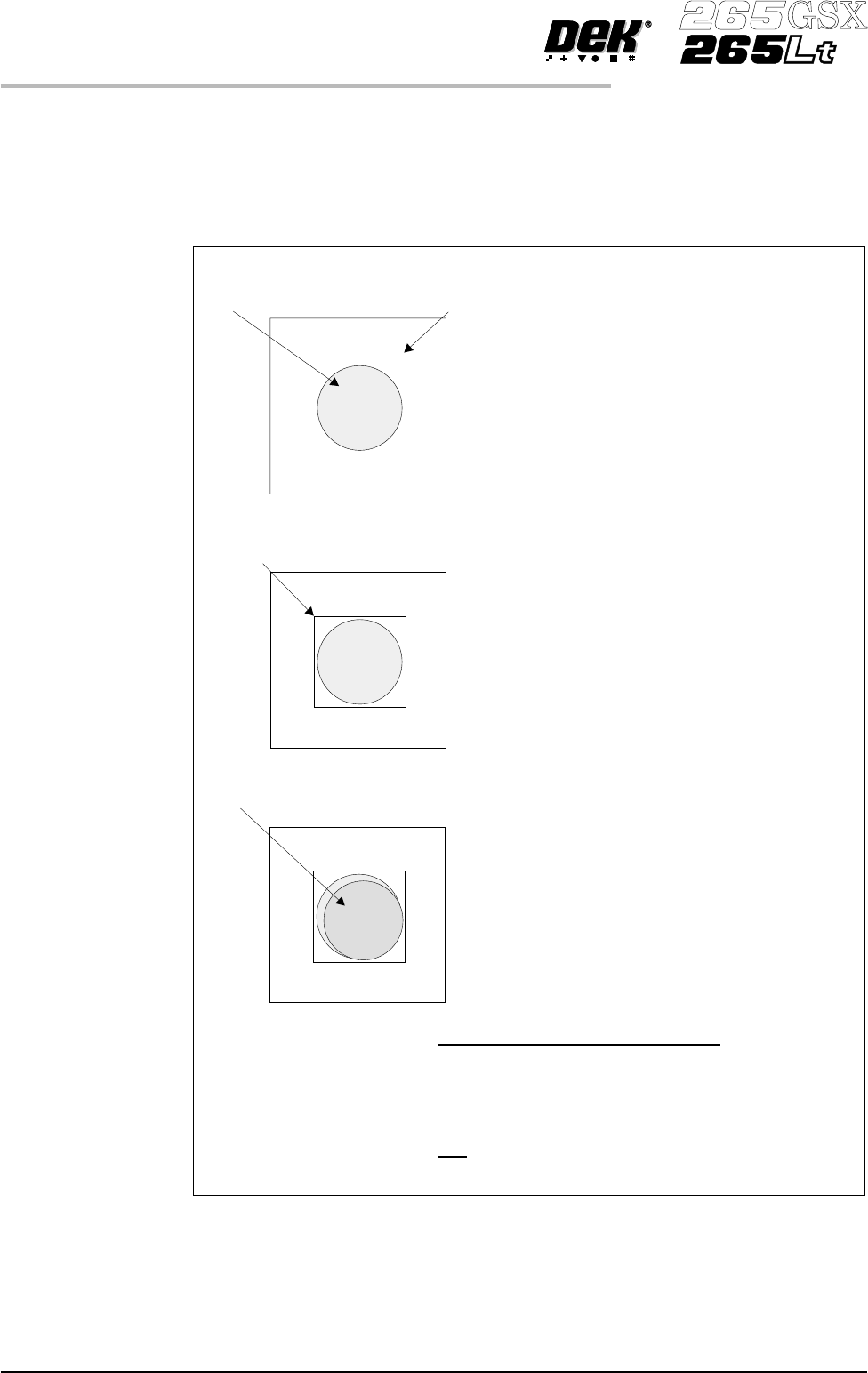

In the example shown the selected board site
contains a circular pad. This could be any
shape.
The board is learnt.
A graphic box is drawn around the pad.
The percentage of the graphics box the pad
covers is the proportion of pad pixels against
the total graphic box pixels.
In this example the pad area = 78%
The board is printed
In the example shown the area of paste within
the graphics box = 72%.
Pa s t e o n Pa d = %
Area of Pad
In the example shown:
Paste on Pad = = 92%
78%
Area of Paste Within the Graphics Box
72%
Site Area
Pa d
Graphic Box
Pa s t e
Figure 8-5 Shape Recognition
Paste Volume
Prediction
2Di uses blockage and paste on pad inspection results for a site to predict the
volume of paste on a pad, thisis only availablewhile the level of inspection is set
toadvanced for both the board and screen. An example of how thisis achieved is
given below.
Software Version 6 User Manual 8.7
2Di INSPECTION
MODULE OVERVIEW
In the example shown the aperture is 100% clear. The paste on pad value was 100%.
This can be represented by the following model of the printed paste :
This is represented by the following model of the printed paste :
Top face equals area of
aperture not blocked by
paste, ie 100%.
Top face equals area of
aperture not blocked by
paste, ie 60%.
Bottom face equals area of
paste on pad, ie 100%.
Bottom face equals area of
paste on pad, ie 90%.
Using a complex formula 2Di predicts the volume of paste, in this case 74.48%.
Aperture
From this information the system predicts the volume of paste, in this case 100%.

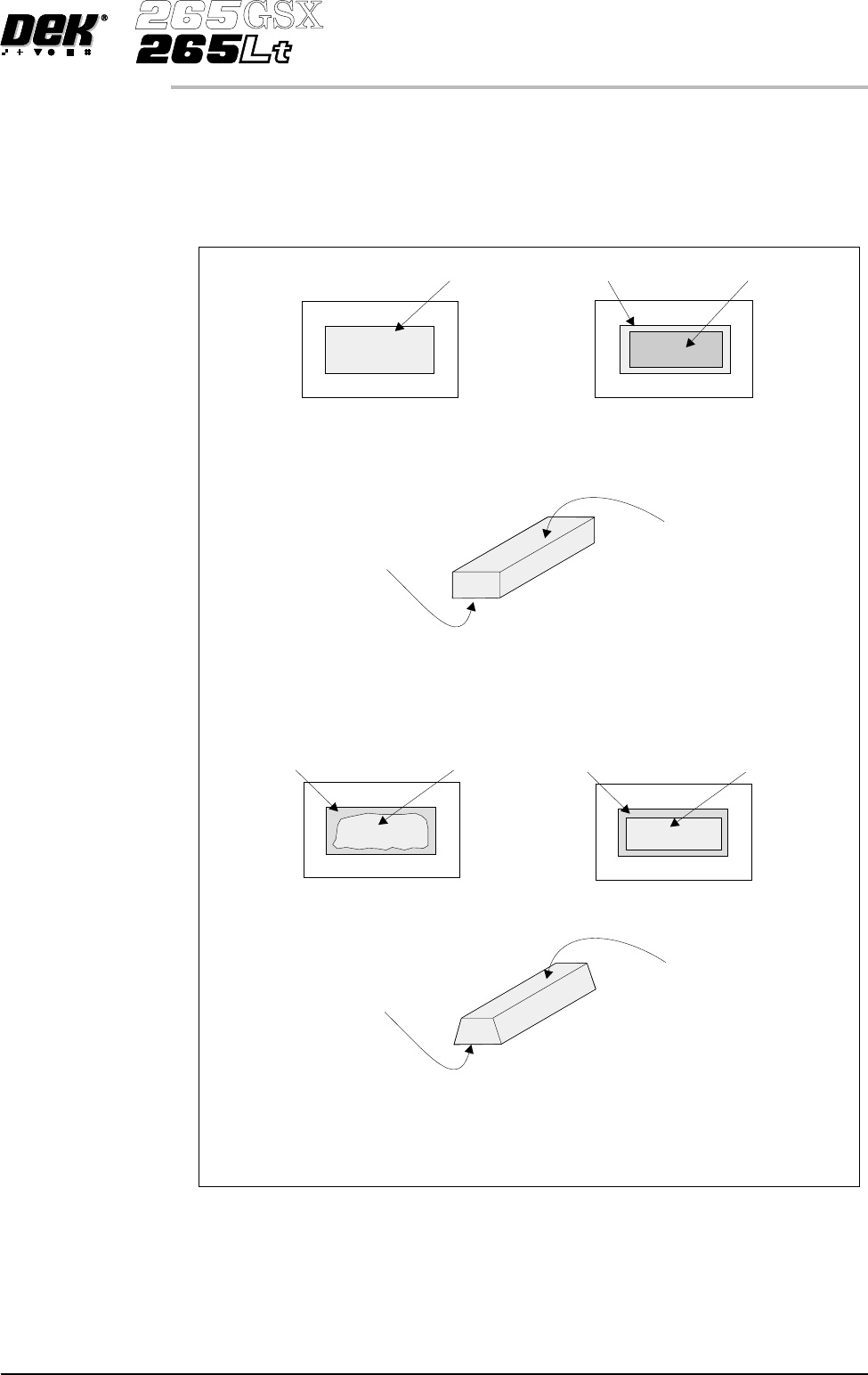

In the following example the aperture has a blockage of 40%. Therefore the aperture is 60%
clear. The 60% is equal to a rectangle of the same size as shown below. The paste on pad
inspection result is 90%.
Screen
Pa d
Pa s t e o n Pa d
Board
Aperture
Paste (Blockage) 40%
Screen
Aperture
Paste (Blockage) 40%
Screen
=
Figure 8-6 Paste Volume Prediction
Auto Learn 2Di inspection can automatically learn different types of features as shown
below.
8.8 User Manual Software Version 6
2Di INSPECTION
MODULE OVERVIEW
Column of Sites
QFP
BGA
Single Site
Row of Sites
Site 1
2
3
Site 1
2
3
Site 1
2
3
4
5
6
7
8
9
10
11
12
Site 1
2
3
4
5
9
12
13
16
15
14
8
NOTE
When auto learning a component,
setup Site 1.
The component is learnt in the
sequences shown above.
BGA Frame
Site 1
2
3
4
16
6
14
7
8
13
5
12
15
11
10
9
Figure 8-7 Auto Learn Site Types
