5. Using the Next, Previous, Incr. and Decr. keys, edit the current process parameters for the new product. Next Previous Incr. Decr. 6. Press Save . Save 7. When the message ‘Board Data File Saved’ is displayed, press E…
3.

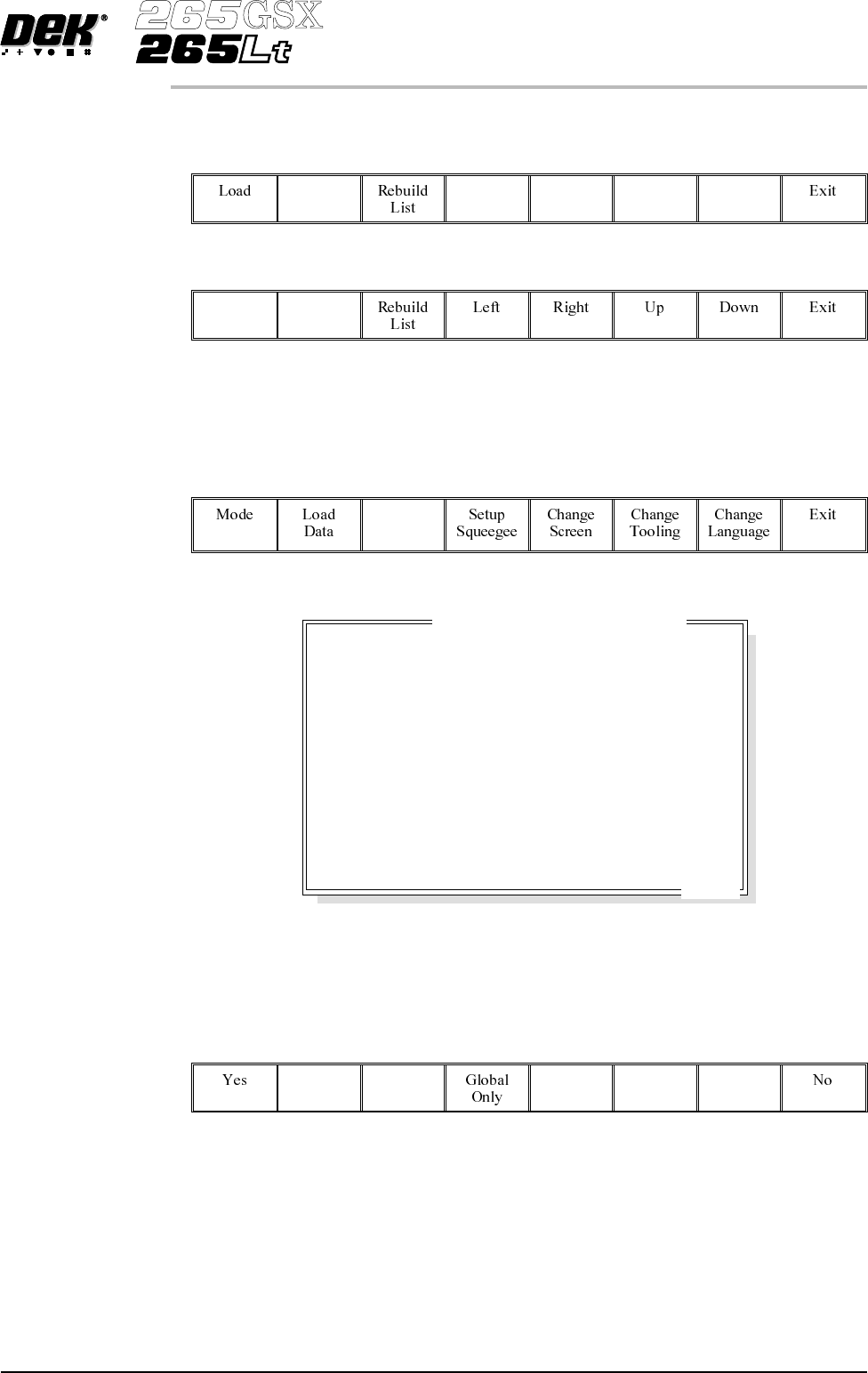

Use the Left, Right, Up and Down keys to highlight a product file. If the
productto be setup is a new one, select anexistingproductfileandmodify it.
Left Right Up Down
4.
Select Load. The machine loads the product file and trains the fiducials.
Load
Edit Data 1. If the loaded product file is the correct one, go to Step 8. If the file needs to
be modified continue with Step 2.
2.
Select Edit Data.
Edit
Data
The following window is displayed:
3.
To change the product name; highlight product name using the Next and
Previous keys. Select Incr. type in required product name and press Enter
using the keyboard.
4.
If the product name is changed the message ‘Do you also want to create a
copy of the inspection file ?’ is displayed. Select one of the following:
Yes - All data is copied, including the site coordinates.
Global Only - The global parameters and limits are copied.
No - No inspection file is copied. Use when setting up an inspection file for the
first time.
Software Version 6 User Manual 8.15
2Di INSPECTION
2Di SETUP
Dek04
Dek04
30 mm
24 mm/s
NONE
EDGE
DISABLED
101.5 mm
152.5 mm
1.6 mm
150 mm/s
20 mm/s
0.0 mm
0.0 mm
PRODUCT NAME
PRODUCT ID
DWELL HEIGHT
DWELL SPEED
SCREEN ADAPTOR
SCREEN IMAGE
CUSTOM SCREEN
BOARD WIDTH
BOARD LENGTH
BOARD THICKNESS
PRINT SPEED
FLOOD SPEED
PRINT FRONT LIMIT
PRINT REAR LIMIT
Edit Current Process Parameters
..more

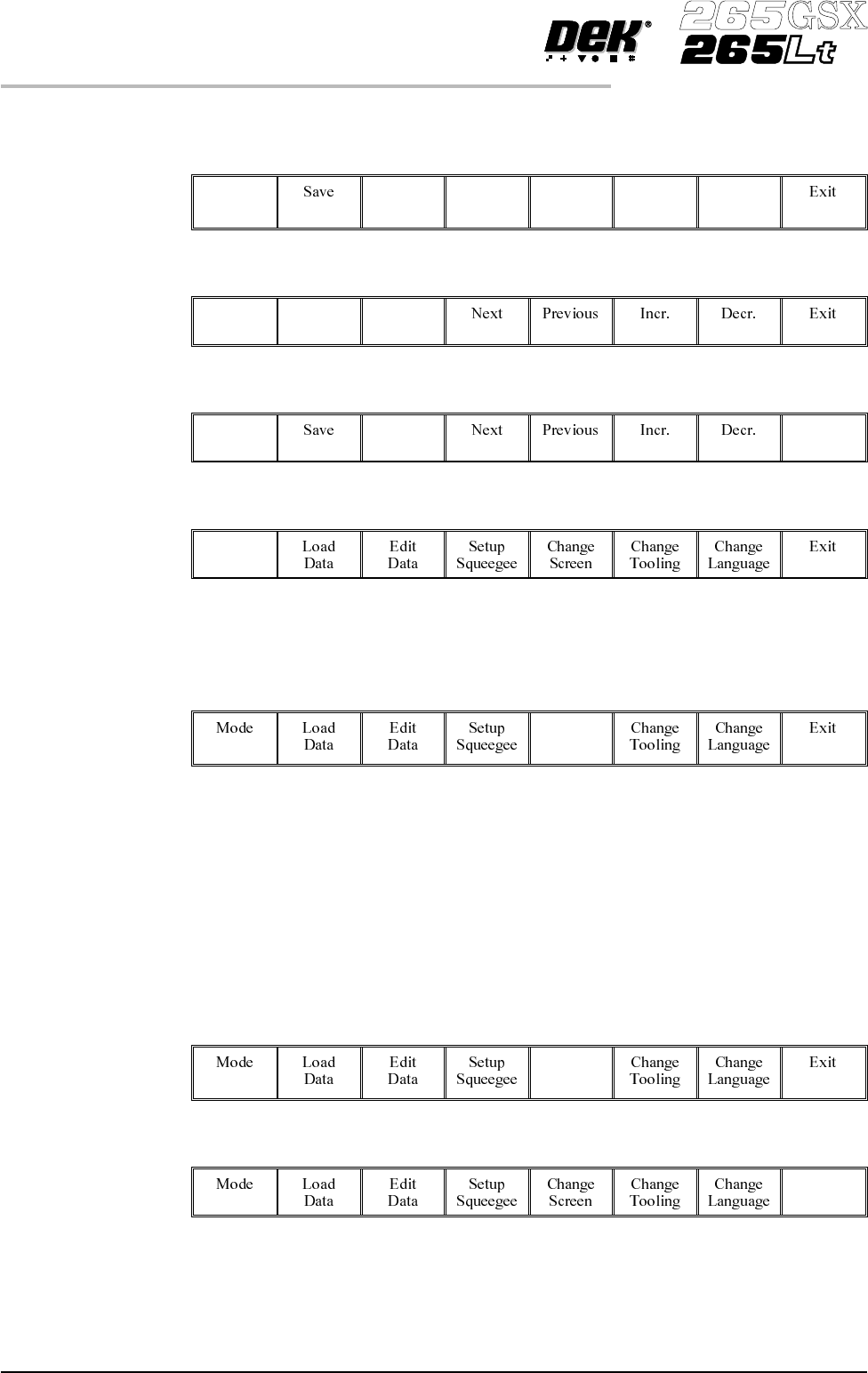

5.
Using the Next, Previous, Incr. and Decr. keys, edit the current process
parameters for the new product.
Next Previous Incr. Decr.
6.
Press Save.
Save
7.
When the message ‘Board Data File Saved’ is displayed, press Exit.
Exit
8.
SelectMode until Stepappears in mode option of theprinterstatusdisplay.
Mode
If the required screen is already in the printer go to Step 16.
If the screen needs to be changed continue with Step 9.
9.
Select Change Screen.
Change
Screen
10.
When the message ‘Open Front Cover and Remove Screen’ is displayed
lift the printhead cover.
11. Remove the screen from the printer.
12. Fit the new screen into the printer ensuring the correct orientation of the
screen.
13. Lower the printhead cover.
14.
Press the System button on the control console.
15.
Select Change Screen.
Change
Screen
16.
Select Exit.
Exit
8.16 User Manual Software Version 6
2Di INSPECTION
2Di SETUP

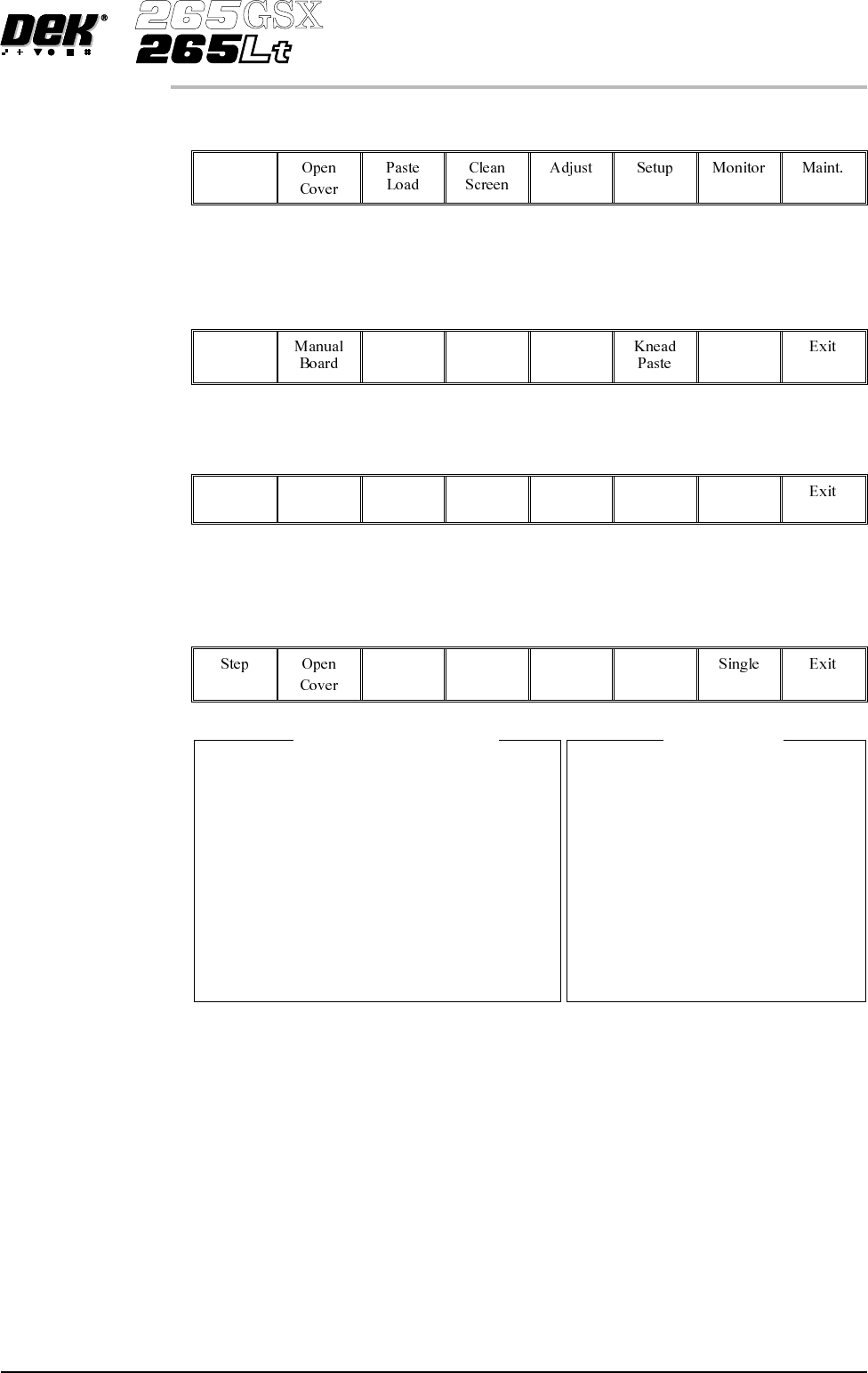

17.
Select Run.
Run
18.
If the screen has not been changed the message ‘Screen has not been
changed for this product’ is displayed, select Use Screen to continue.
19.
Select Auto Board.
Auto
Board
20.
The message ‘Load board’ is displayed. Load board, select Confirm when
the board is loaded.
Confirm
21. Setup the board and screen fiducials.
22.
Select Inspect Setup. If this option is unavailable, check set prefs for 2D
Inspection enabled.
Inspect
Setup
NOTE
The windows in this procedure show the parameters and options available with
both screen and board inspect type set to advanced. If screen or board inspect
type is set to basic or none, certain parameters and options are not displayed.
CAUTION
FIDUCIAL POSITION. If during the print cycle, the position of board
fiducials are changed, the position of previous inspection sites (if any) may
be affected. Small changes are automatically compensated for, however
large changes, ie more than 3mm, require sites to be repositioned.
Software Version 6 User Manual 8.17
2Di INSPECTION
2Di SETUP
2D INSPECT RATE
STENCIL INSPECT TYPE
BOARD INSPECT TYPE
PRE-IMAGE
MIN SITES/CYCLE
WARNING LIMIT
BLOCKAGE ACTION
BLOCKAGE CLEAN
SMEAR ACTION
SMEAR CLEAN
LOW PASTE ACTION
INSPECTAFTER CLEAN
POST PRINTALIGNMENT
No. SITES
1
ADVANCED
ADVANCED
EVERY
10
3
MANUALACTION
MODE 1
MANUALACTION
MODE 2
RE-PRINT
ENABLED
PERFORMED
30
Global Inspect Parameters
SITE NAME
SITE PRIORITY
STENCIL INSPECT TYPE
BOARD INSPECT TYPE
SITE ALIGNMENT
LIMIT SITE I.D.
PASTE SCALING
SITE X COORD
SITE Y COORD
SITE WIDTH
SITE HEIGHT
QFP 1
GENERAL
ADVANCED
ADVANCED
X AND Y
FINE
1.00
84.5 mm
89.5mm
4.00 mm
4.00 mm
Site Parameters
