Fitting a New
Paste Cartridge
It is necessary at intervals to fit a new paste cartridge into the paste dispenser. If
there is no cartridge in the dispenser or the cartridge is empty, the warning
window ‘Print Medium Low. Please Replenish.’ is displayed.
If the consumable action option in set preferences is set to suspend, the paste
dispenser is checked to ensureavailabilily ofpaste, beforeallowing aprint runto
start. If paste isn’t available the warning window ‘Print Medium Low. Please
Replenish.’ is displayed.
To replace a paste cartridge carry out the following:
1.
Press Paste Load (F3).
Paste
Load
2.
Press Load Cartrdg (F4).
Load
Cartrdg
The print carriage drives tothe front of the machineand the dispenser rises to
the vertical position. A message is displayed on the screen ‘Open Cover
and Replace Cartridge’.

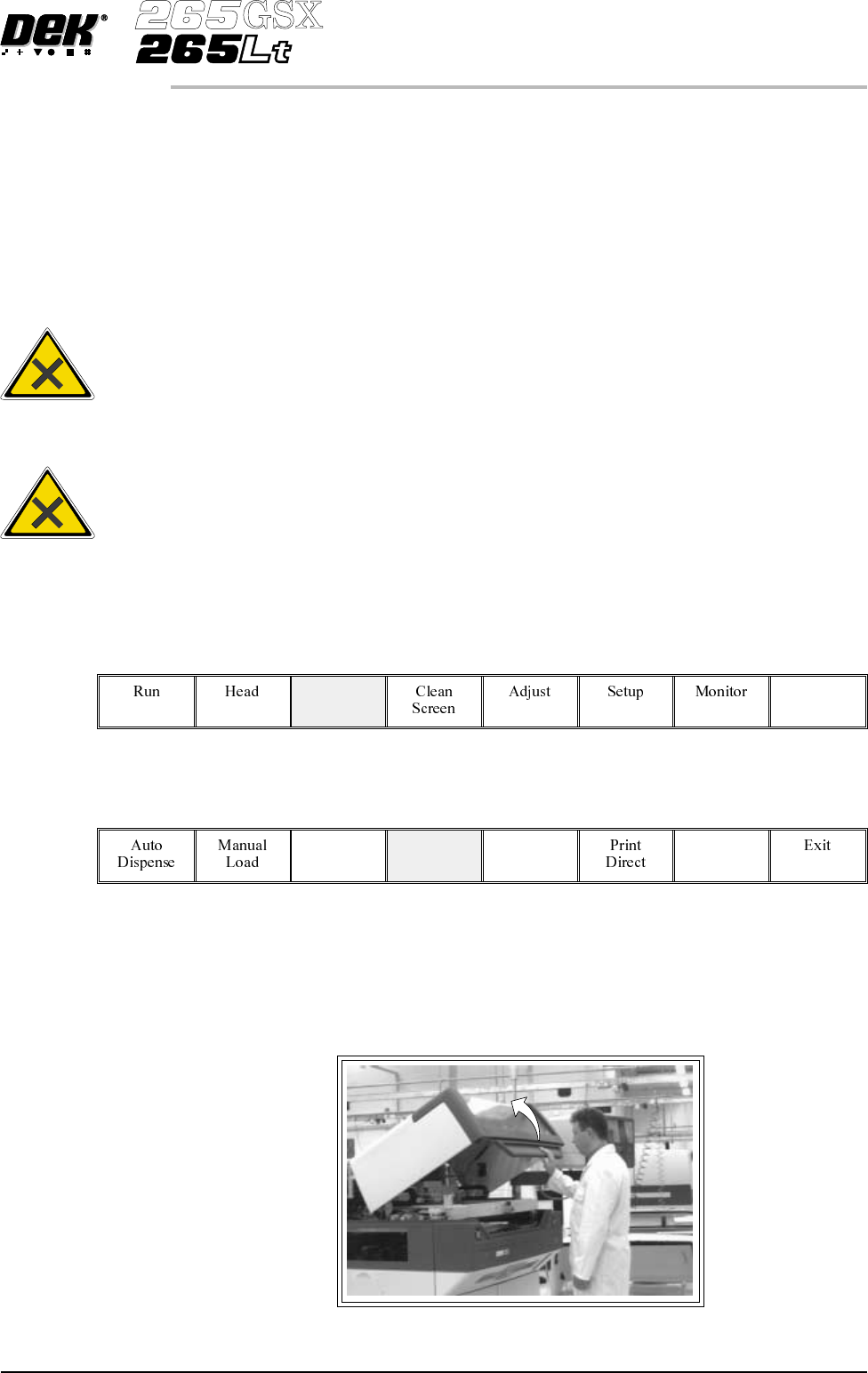

3. Open the printhead cover.
Software Version 6 User Manual 9.15
CONSUMABLE REPLENISHMENTS
PASTE LOADING
WARNING
SOLDERPASTEANDSOLVENTS. WHENUSINGORHANDLINGAN
Y
SOLDER PASTE OR SOLVENT FORMULATION THE
MANUFACTURERS' RECOMMENDED SAFETY PRECAUTIONS
MUSTBESTRICTLYADHEREDTO.
WARNING
PROTECTIVE CLOTHING. APPROVED PROTECTIVE CLOTHIN
G
SHOULD BE WORN BY SOLDER PASTEAND SOLVENT HANDLERS
AT ALL TIMES TO ELIMINATE FUME INHALATION, EYE
CONTACT,SKINCONTACTANDINGESTION.
4. Remove the empty cartridge by unscrewing the cap at the rear of the paste
dispense tube to allow it to be withdrawn.
5. Unscrew the nozzle from the old cartridge and insert it into the new
cartridge.
6. Fit the new cartridge into the dispenser.
9.16 User Manual Software Version 6
CONSUMABLE REPLENISHMENTS
PASTE LOADING
7. Screw the end cap onto the dispenser ensuring that it is only fingertight.
8. Close the printhead cover.
9.
Press the System button.
10.
Press Exit (F8).
Exit
Software Version 6 User Manual 9.17
CONSUMABLE REPLENISHMENTS
PASTE LOADING
