15. Rotate the take up roll one complete revolution against the motor clutch to tension the cleaner paper across the cleaner squeegee assembly. 16. Ensure the cleaner paper has been routed correctly, from underneath the …

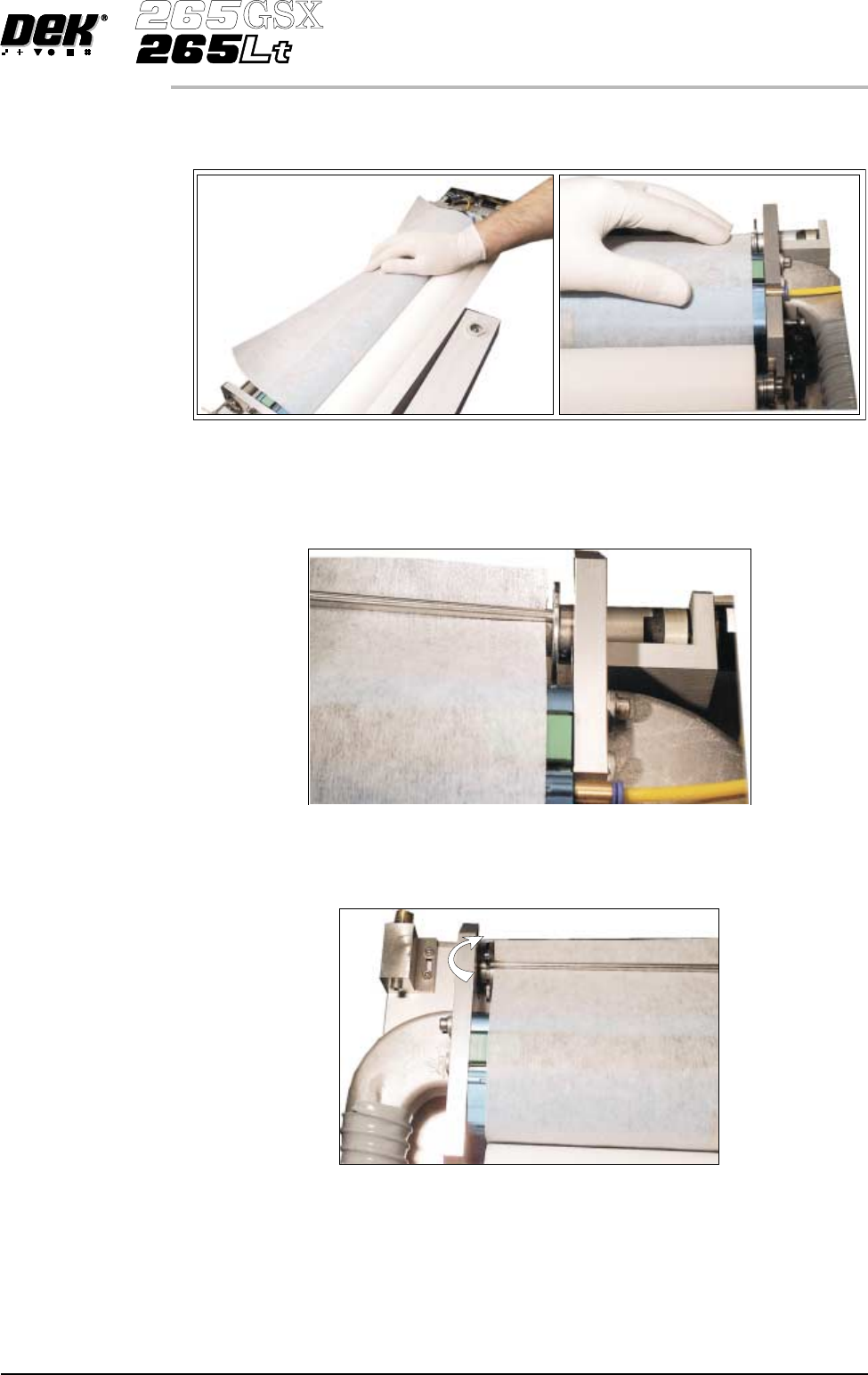

12. Feed the cleaner paper across the body assembly, ensuring the cleaner paper

is aligned parallel to the unit end plate.

13. Insert the paper roll rod into the right hand flange of the shaft. Lay the rod

along the shaft’s groove trapping the cleaner paper between the shaft and

rod.

14. Rotate the end flange of the rod towards the rear of the machine to lock the

rod onto the shaft.

Software Version 6 User Manual 9.31

CONSUMABLE REPLENISHMENTS

BLUE UNDERSCREEN CLEANER

15. Rotate the take up roll one complete revolution against the motor clutch to

tension the cleaner paper across the cleaner squeegee assembly.

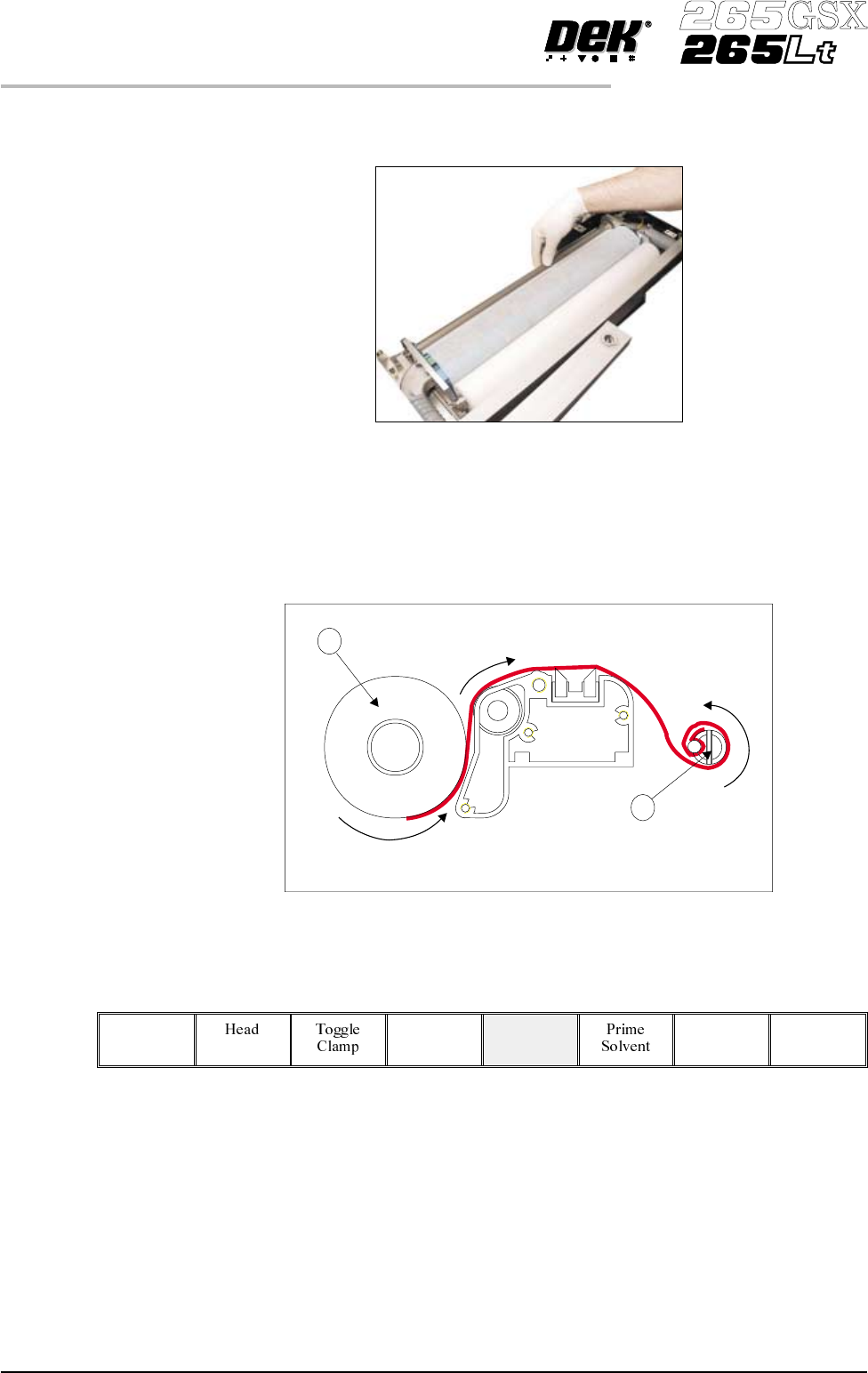

16. Ensure the cleaner paper has been routed correctly, from underneath the

paper roll (1) rearwards across the squeegee assembly and threaded between

paper rod and shaft (2).

NOTE

Figures in brackets refer to the diagram below.

17.

Press Prime Paper (F5) key.

The message ‘Press the two control buttons to feed paper’ is displayed.

Prime

Paper

9.32 User Manual Software Version 6

CONSUMABLE REPLENISHMENTS

BLUE UNDERSCREEN CLEANER

18. Using the two button control, prime the paper ensuring it feeds correctly.

19. Remove the head support. Lower the printhead using two button control.

20.

Press the System button.

Software Version 6 User Manual 9.33

CONSUMABLE REPLENISHMENTS

BLUE UNDERSCREEN CLEANER
