16. Select Use (F1). Use 17. Select Exit (F8). Exit 18. Select Proceed (F1). Proceed The ProFlow unit is placed in contact with the screen. 19. Open the front printhead cover. Software Version 6 User Manual 9.53 CONSUMAB…

10.

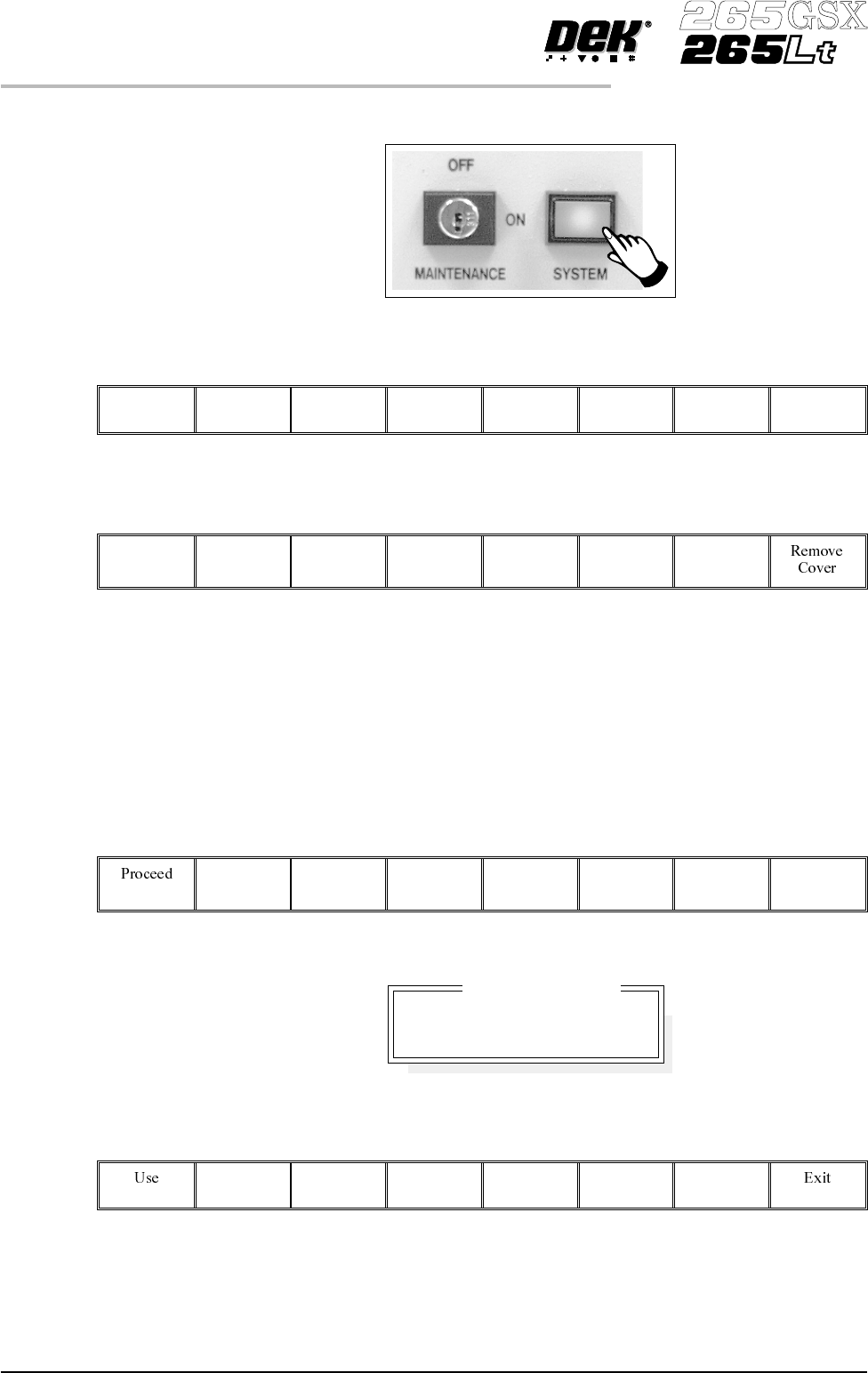

Press the System button.

11.

Select Exit (F8).

Exit

12.

Select Yes (F1).

Yes

The message ‘The ProFlow unit will be placed in the REAR envelope’ is

displayed.

13. Ifthe ProFlow unit is required to be placed in another envelope continue with

Step 14. If the ProFlow unit is required tobe placed inthe machine preferred

envelope go to Step 18.

14.

Select Select Another (F8).

Select

Another

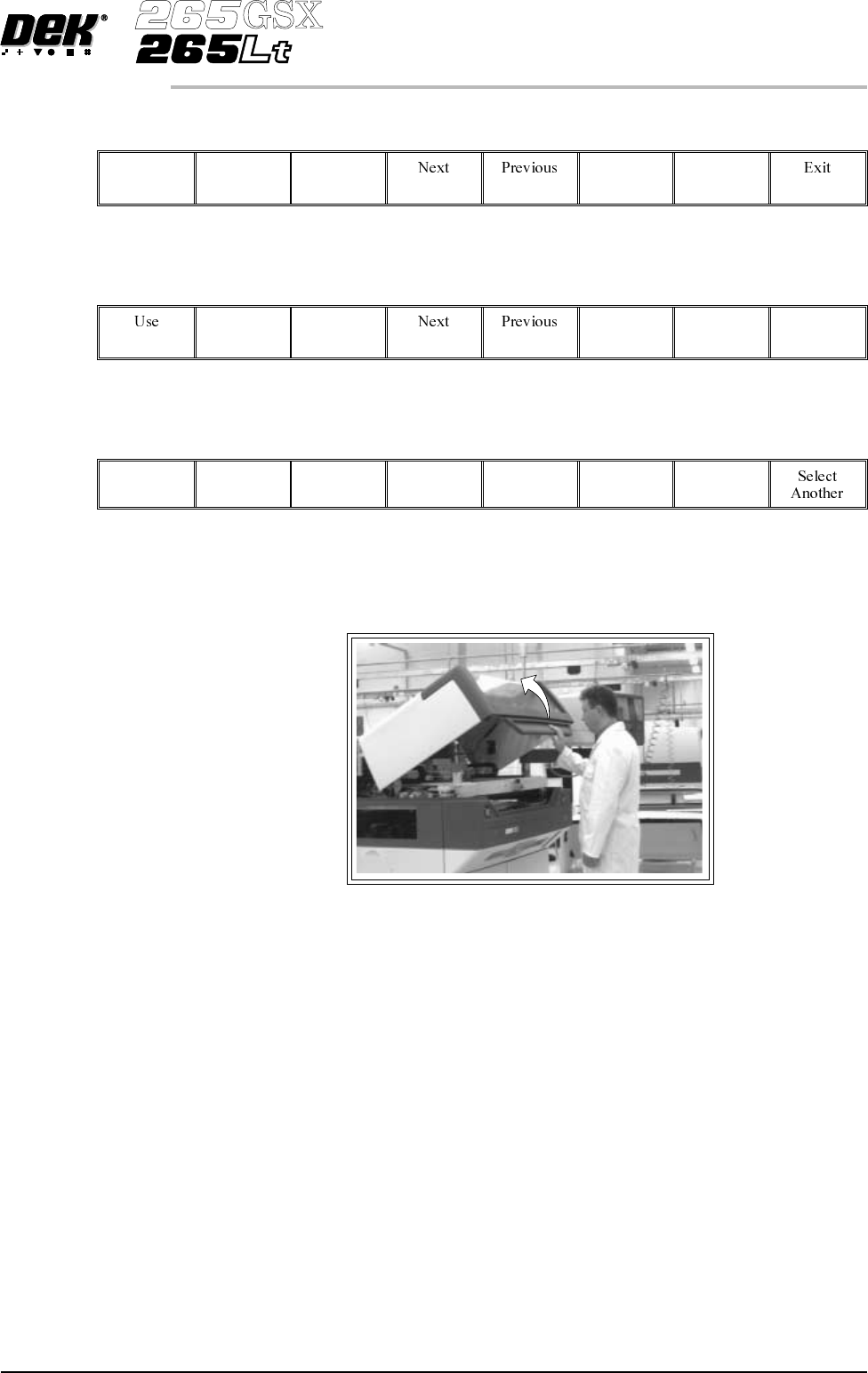

The following window is displayed:

15.

Use the Next or Previous keys (F4 or F5) to highlight Front.

Next Previous

9.52 User Manual Software Version 6

CONSUMABLE REPLENISHMENTS

PROFLOW

Preferred Envelope

REAR

FRONT

16.

Select Use (F1).

Use

17.

Select Exit (F8).

Exit

18.

Select Proceed (F1).

Proceed

The ProFlow unit is placed in contact with the screen.

19. Open the front printhead cover.

Software Version 6 User Manual 9.53

CONSUMABLE REPLENISHMENTS

PROFLOW

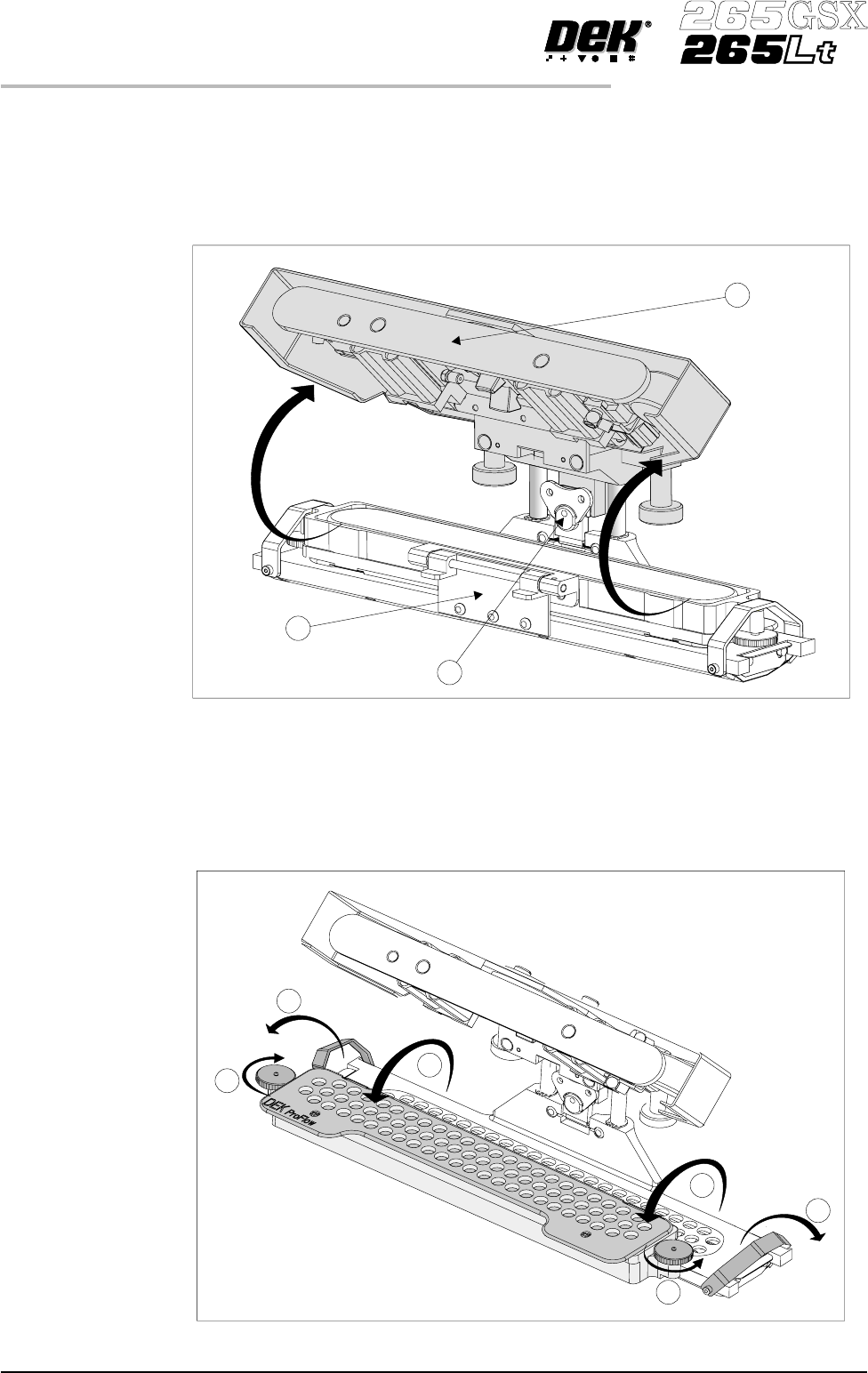

20. To gain access to the transfer head (1), release the latch on the front of the

pressure mechanism (2) and raise the mechanism forward and upwards to

engage the spring locking device.

NOTE

Numbers in brackets refer to figure below.

21. To release the carrier from the transfer head, unscrew the thumbscrews (1) at

each end of the carrier to loosen the clamp brackets. Hinge the clamp

brackets (2) outwards. Hinge the carrier and ProFlow cassette (3) towards

the front of the machine exposing the top of the ProFlow cassette.

NOTE

Numbers in brackets refer to figure below.

9.54 User Manual Software Version 6

CONSUMABLE REPLENISHMENTS

PROFLOW
