4.
Select Board Clamps (F3), to open the clamps.
Board
Clamps
5. Slide a board along the rails to abut the board stop.
6.
Select Board Clamps (F3), to close the clamps.
Board
Clamps
7. Using the board as a reference, position the outermost support pins on the
rising table under the board.
8.
Select Board Clamps (F3), to open the clamps.
Board
Clamps
1.24 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 6A
9.
Remove the board and select Board Clamps (F3), to close the clamps.
Board
Clamps
10. Complete the positioning of the support pins.
11.
Select Board Clamps (F3), to open the clamps.
Board
Clamps
12. Slide the board back along the rails to abut the board stop.
13.
Select Head (F2).
Head
14. Remove the head prop. Lower the printhead using two button control.
Software Version 6 User Manual 1.25
MACHINE PROGRAMMING
STAGE 6A

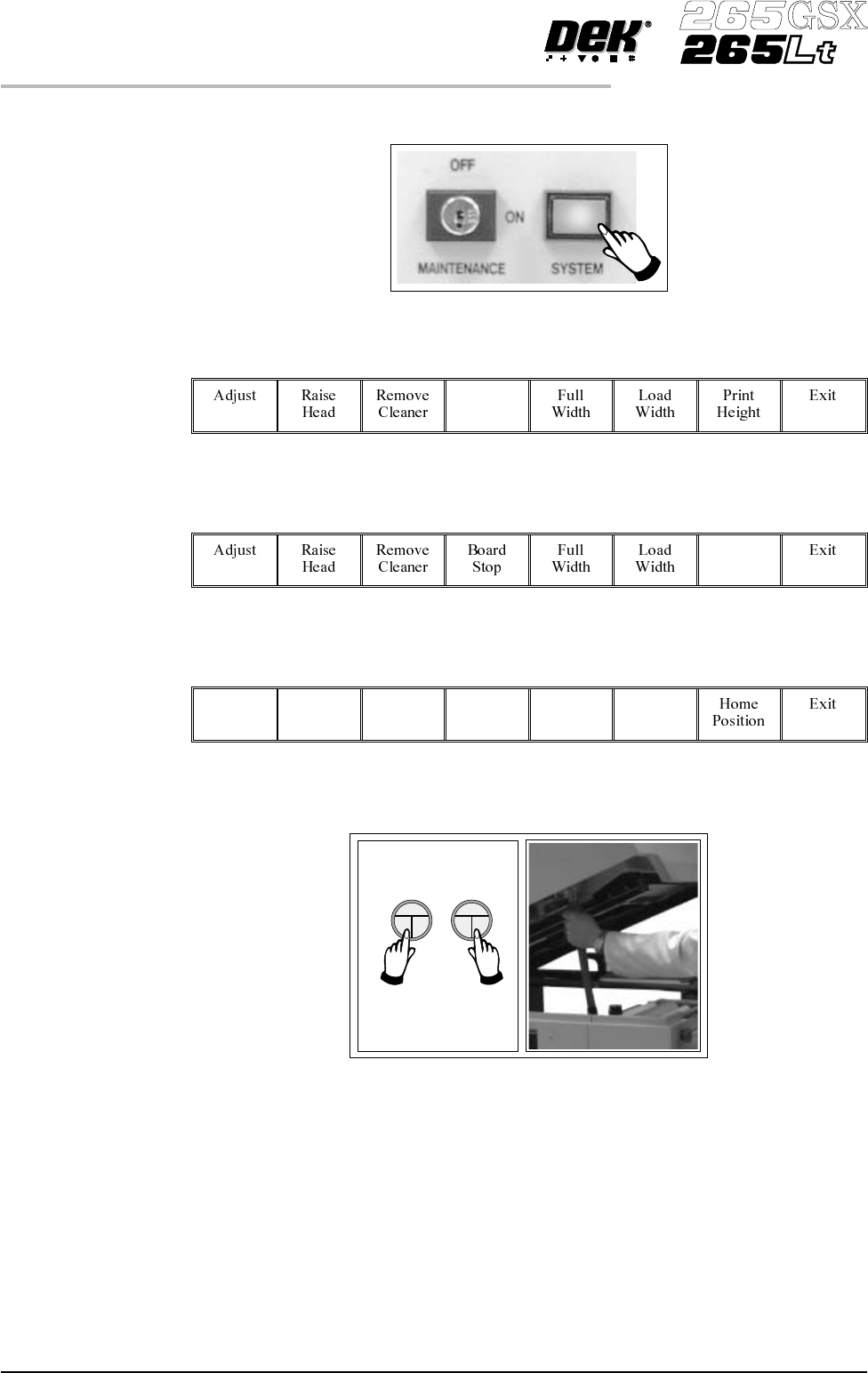

15.
Press the System button.
16.
Select Home Camera (F4).
Home
Camera
17.
Select Print Height (F7).
Print
Height
18.
Select Raise Head (F2).
Raise
Head
19. Raise the printhead using two button control. Fit the head prop.
1.26 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 6A
