34. Press the System button. 35. Select Exit (F8). Exit 36. Go to Stage 7. 1.36 User Manual Software Version 6 MACHINE PROGRAMMING STAGE 6B

100%1 / 388

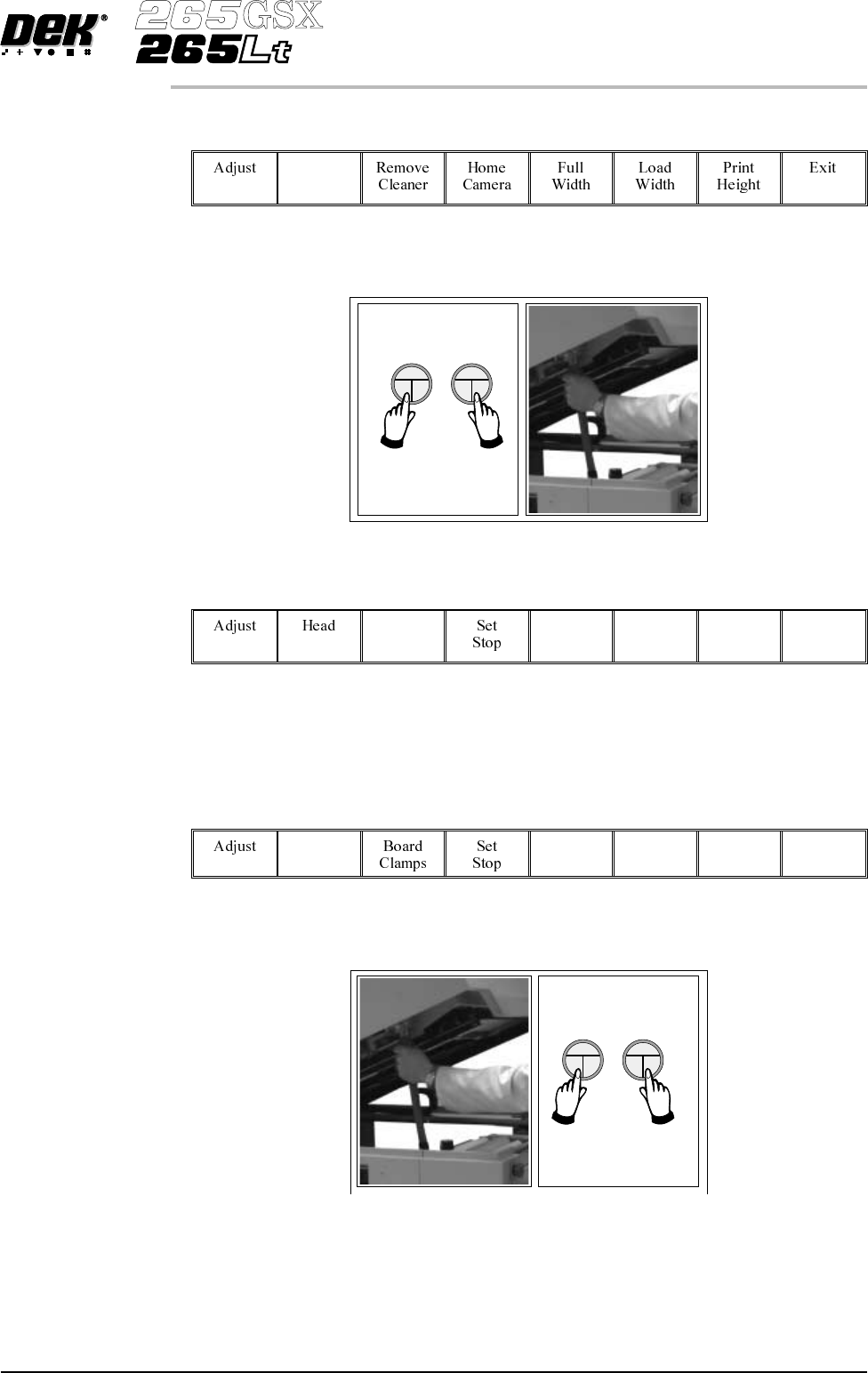

28.
Select Raise Head (F2).
Raise
Head
29. Raise the printhead using two button control. Fit the head prop.
30.
Select Board Clamps (F3), to open the clamps.
Board
Clamps
31. Remove the board from the rails.
32.
Select Head (F2).
Head
33. Remove the head prop. Lower the printhead using two button control.
Software Version 6 User Manual 1.35
MACHINE PROGRAMMING
STAGE 6B

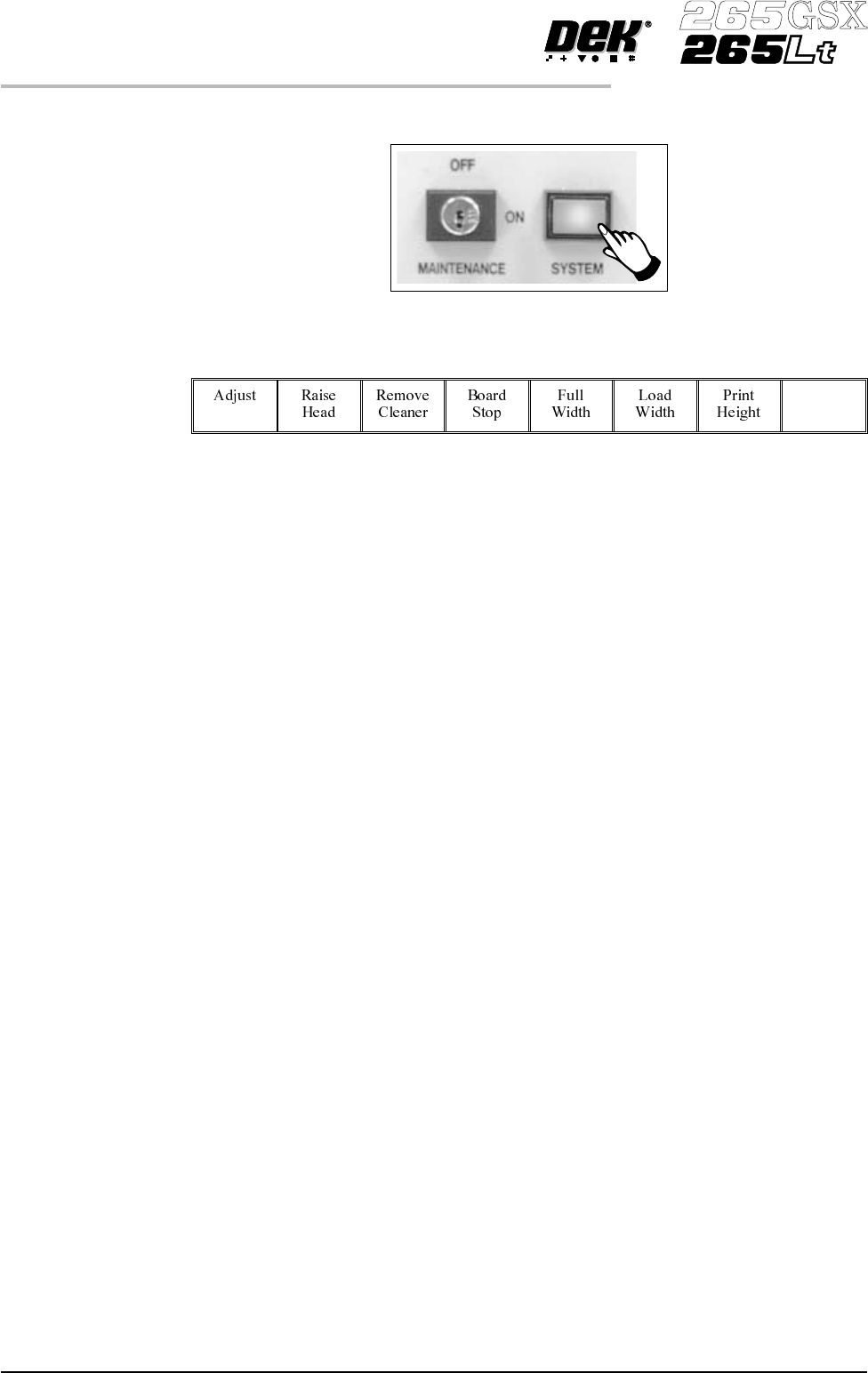

34.
Press the System button.
35.
Select Exit (F8).
Exit
36. Go to Stage 7.
1.36 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 6B

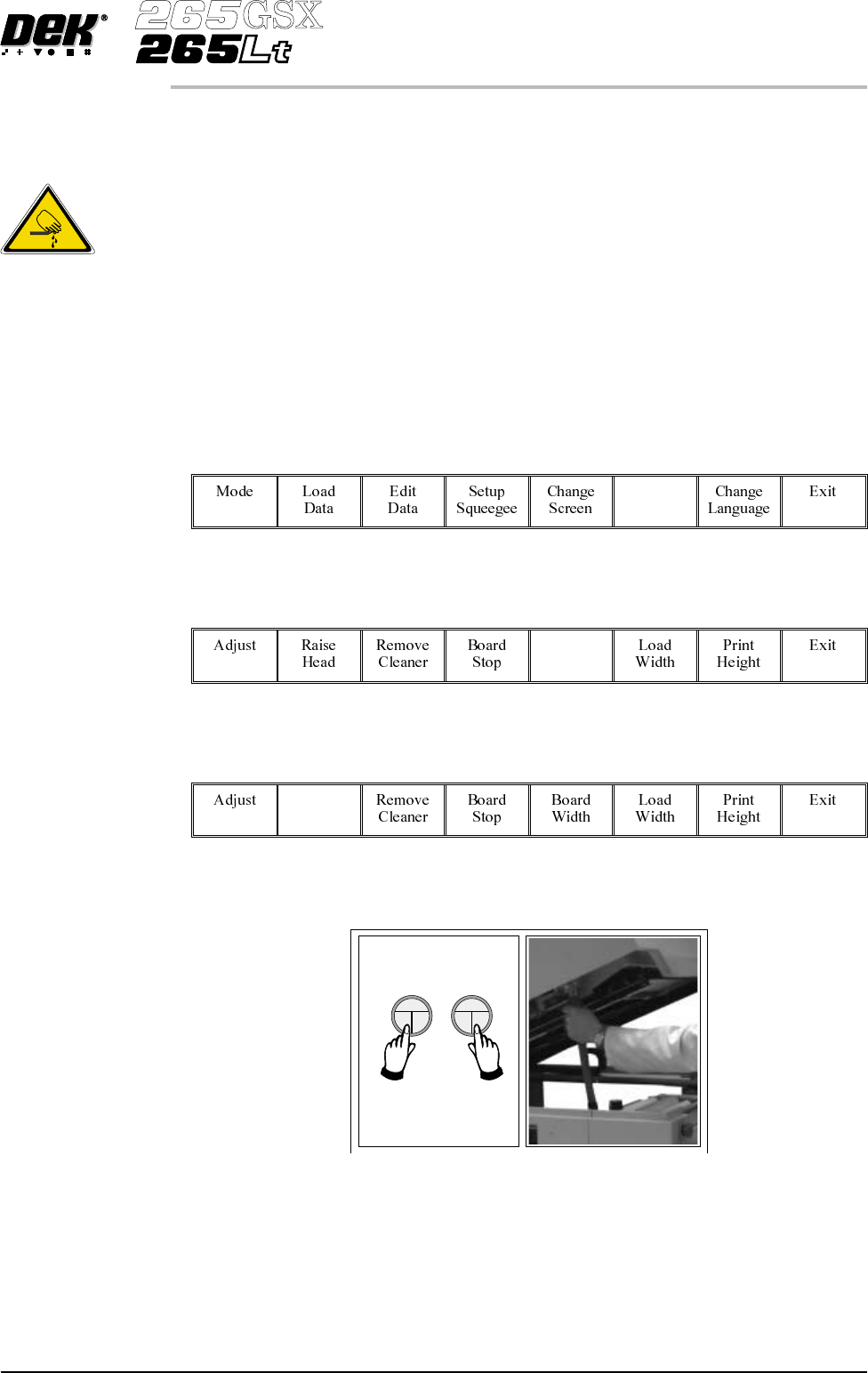

STAGE 6C
Tooling Setup - Dedicated Tooling System
CAUTION
BOARD CLAMPS. Care must be taken to ensure that the board clamps
are not damaged when removing or replacing tooling.
1.
Select Change Tooling (F6).
Change
Tooling
2.
Select Full Width (F5).
Full
Width
3.
Select Raise Head (F2).
Raise
Head
4. Raise the printhead using two button control. Fit the head prop.
Software Version 6 User Manual 1.37
MACHINE PROGRAMMING
STAGE 6C
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN
WORKING IN THE TOOLING AREA OF THE MACHINE TO AVOID
INJURY. THE FOILS ON THE FRONTAND REAR BOARD CLAMPS
AREVERYSHARP.
