15. Raise the printhead using two button control. Fit the head prop. 16. Select Board Clamps (F3), to open the clamps. Board Clamps 17. Slide a board along the rails to abut the board stop. 18. Select Board Clamps (F3), …

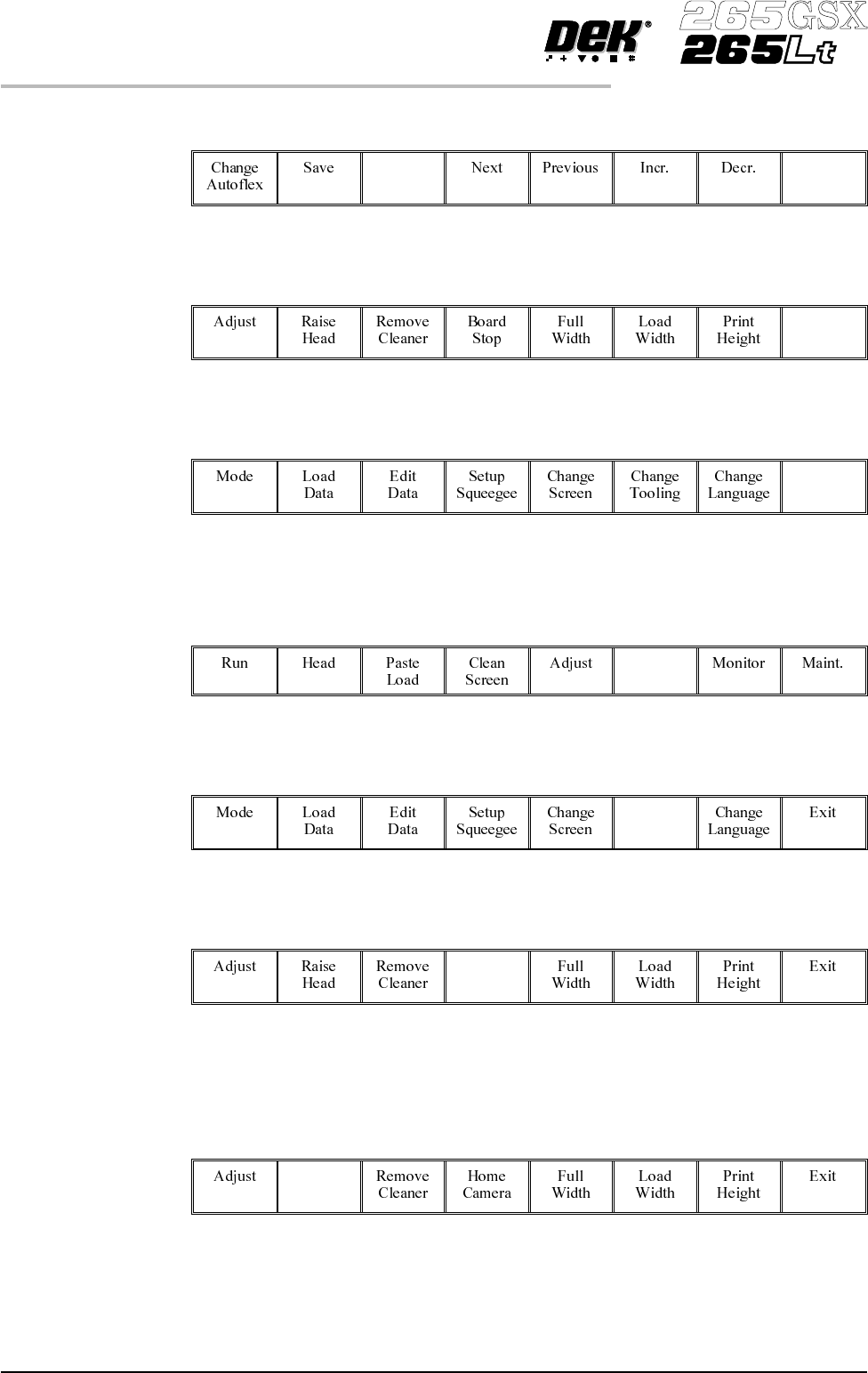

8.
Select Exit (F8).
Exit
9.
Select Exit (F8).
Exit
10.
Select Exit (F8).
Exit
The rail moves to the board width and the selected Autoflex pins rise.
11.
Select Setup (F6).
Setup
12.
Select Change Tooling (F6).
Change
Tooling
13.
Select Board Stop (F4).
Board
Stop
The camera moves to the board stop position. The board stop on the camera
extends.
14.
Select Raise Head (F2).
Raise
Head
1.54 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 6E
15. Raise the printhead using two button control. Fit the head prop.
16.
Select Board Clamps (F3), to open the clamps.
Board
Clamps
17. Slide a board along the rails to abut the board stop.
18.
Select Board Clamps (F3), to close the clamps.
Board
Clamps
19.
Select Head (F2).
Head
20. Remove the head prop. Lower the printhead using two button control.
Software Version 6 User Manual 1.55
MACHINE PROGRAMMING
STAGE 6E
21.
Press the System button.
22.
Select Home Camera (F4).
Home
Camera
23.
Select Print Height (F7).
Print
Height
24.
Select Raise Head (F2).
Raise
Head
25. Raise the printhead using two button control. Fit the head prop.
26. Check that the setup of the tooling is adequate for the board, adjust as
necessary.
27.
Select Head (F2).
Head
1.56 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 6E
