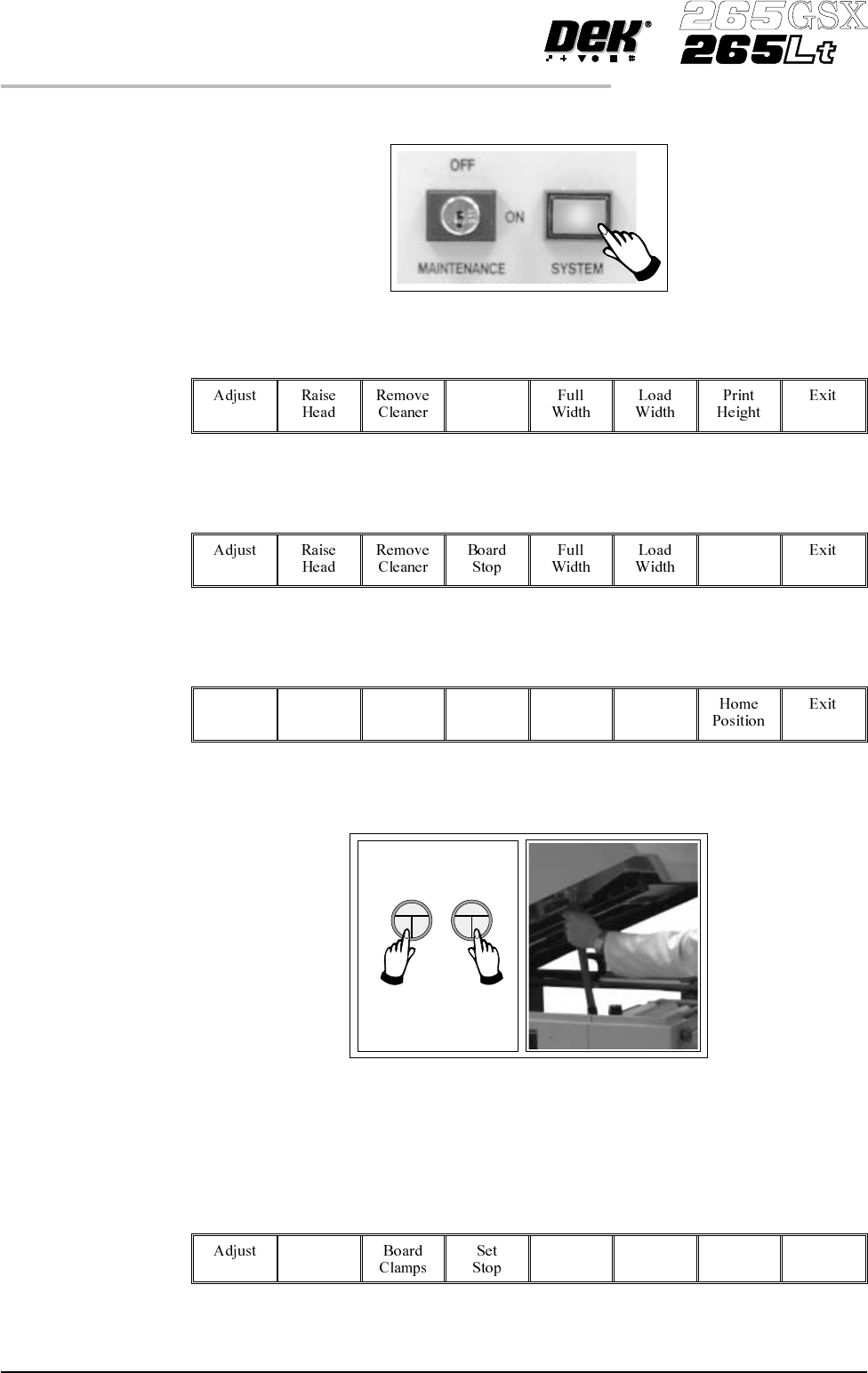

21. Press the System button. 22. Select Home Camera (F4). Home Camera 23. Select Print Height (F7). Print Height 24. Select Raise Head (F2). Raise Head 25. Raise the printhead using two button control. Fit the head prop.…

100%1 / 388
15. Raise the printhead using two button control. Fit the head prop.
16.
Select Board Clamps (F3), to open the clamps.
Board
Clamps
17. Slide a board along the rails to abut the board stop.
18.
Select Board Clamps (F3), to close the clamps.
Board
Clamps
19.
Select Head (F2).
Head
20. Remove the head prop. Lower the printhead using two button control.
Software Version 6 User Manual 1.55
MACHINE PROGRAMMING
STAGE 6E
21.
Press the System button.
22.
Select Home Camera (F4).
Home
Camera
23.
Select Print Height (F7).
Print
Height
24.
Select Raise Head (F2).
Raise
Head
25. Raise the printhead using two button control. Fit the head prop.
26. Check that the setup of the tooling is adequate for the board, adjust as
necessary.
27.
Select Head (F2).
Head
1.56 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 6E
28. Remove the head prop. Lower the printhead using two button control.
29.
Press the System button.
30.
Select Home Position (F7).
Home
Position
31.
Select Raise Head (F2).
Raise
Head
32. Raise the printhead using two button control. Fit the head prop.
Software Version 6 User Manual 1.57
MACHINE PROGRAMMING
STAGE 6E
