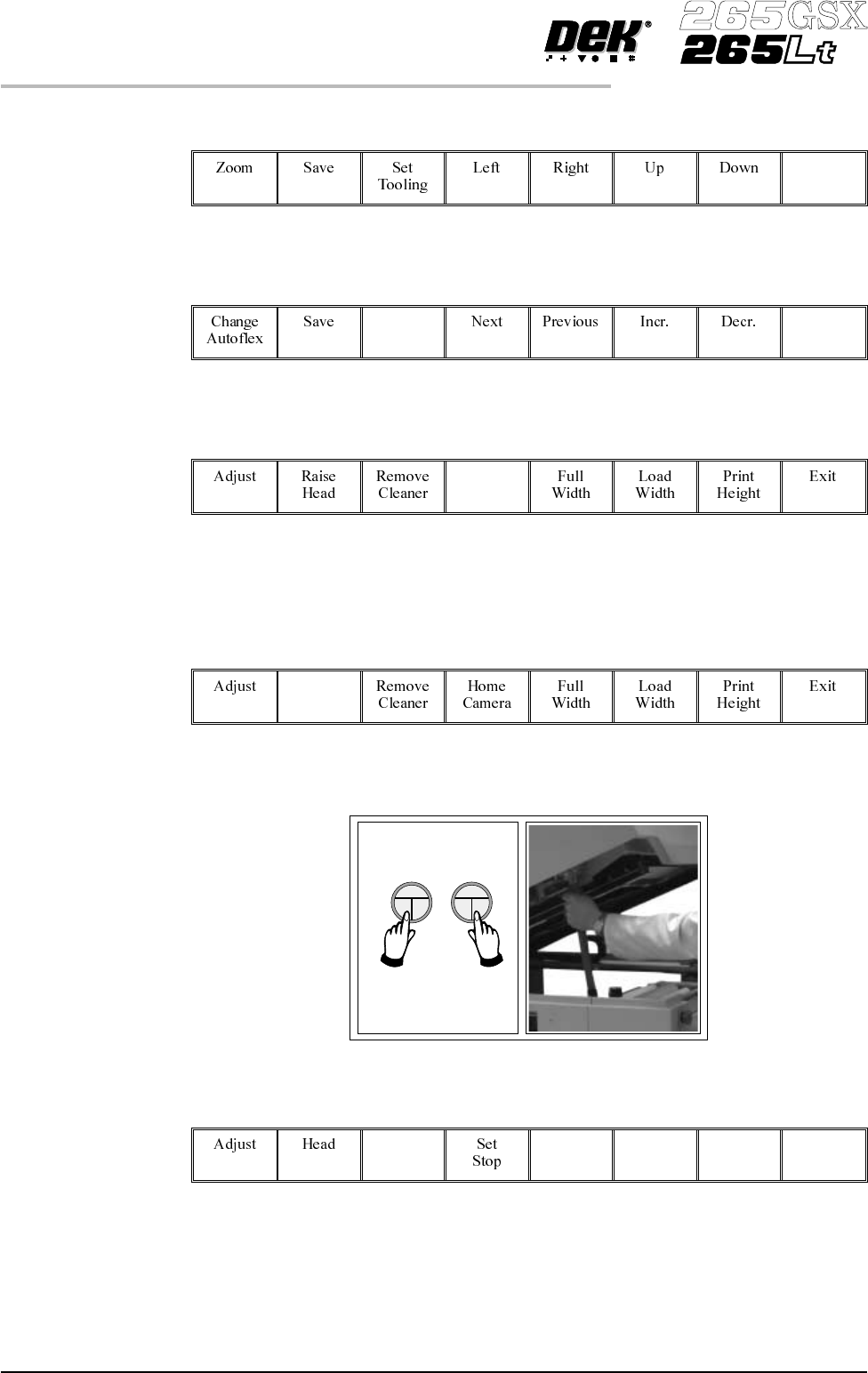

29.
Select Exit (F8).
Exit
30.
Select Exit (F8).
Exit
31.
Select Board Stop (F4).
Board
Stop
The camera moves to the board stop position. The board stop on the camera
extends.
32.
Select Raise Head (F2).
Raise
Head
33. Raise the printhead using two button control. Fit the head prop.
34.
Select Board Clamps (F3), to open the clamps.
Board
Clamps
35. Slide a board along the rails to abut the board stop.
1.66 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 6F
36.
Select Board Clamps (F3), to close the clamps.
Board
Clamps
37.
Select Head (F2).
Head
38. Remove the head prop. Lower the printhead using two button control.
39.
Press the System button.
40.
Select Home Camera (F4).
Home
Camera
41.
Select Print Height (F7).
Print
Height
Software Version 6 User Manual 1.67
MACHINE PROGRAMMING
STAGE 6F
42.
Select Raise Head (F2).
Raise
Head
43. Raise the printhead using two button control. Fit the head prop.
44. Check that the setup of the tooling is adequate for the board, adjust as
necessary.
45.
Select Head (F2).
Head
46. Remove the head prop. Lower the printhead using two button control.
47.
Press the System button.
1.68 User Manual Software Version 6
MACHINE PROGRAMMING
STAGE 6F
