xix Safety instructions n Caution instruction c …
xviii
Safety instructions
n
Caution instruction
c
n
Applicable machines All solder printers
Use specified solvents only
91114-LC-00
n
Caution instruction
c
Reversing this order may damage the cover.
n
Applicable machines YVP-Xg
Caution when opening/closing the cover
91115-LC-00
n
Caution instruction
c
n
Applicable machines Machines equipped with CLi type feeder plate
Do not apply excessive shock
91116-LC-00
xix
Safety instructions
n
Caution instruction
c
n
Applicable machines All YG and
All YS series machines
,
Close cover before operating FDD or USB memory drive
90K41-000540
n
Caution instruction
c
machine or cause faulty operation.
n
Applicable machines All machines
AC208V INPUT
Use correct voltage
91118-LC-00
xx
Safety instructions

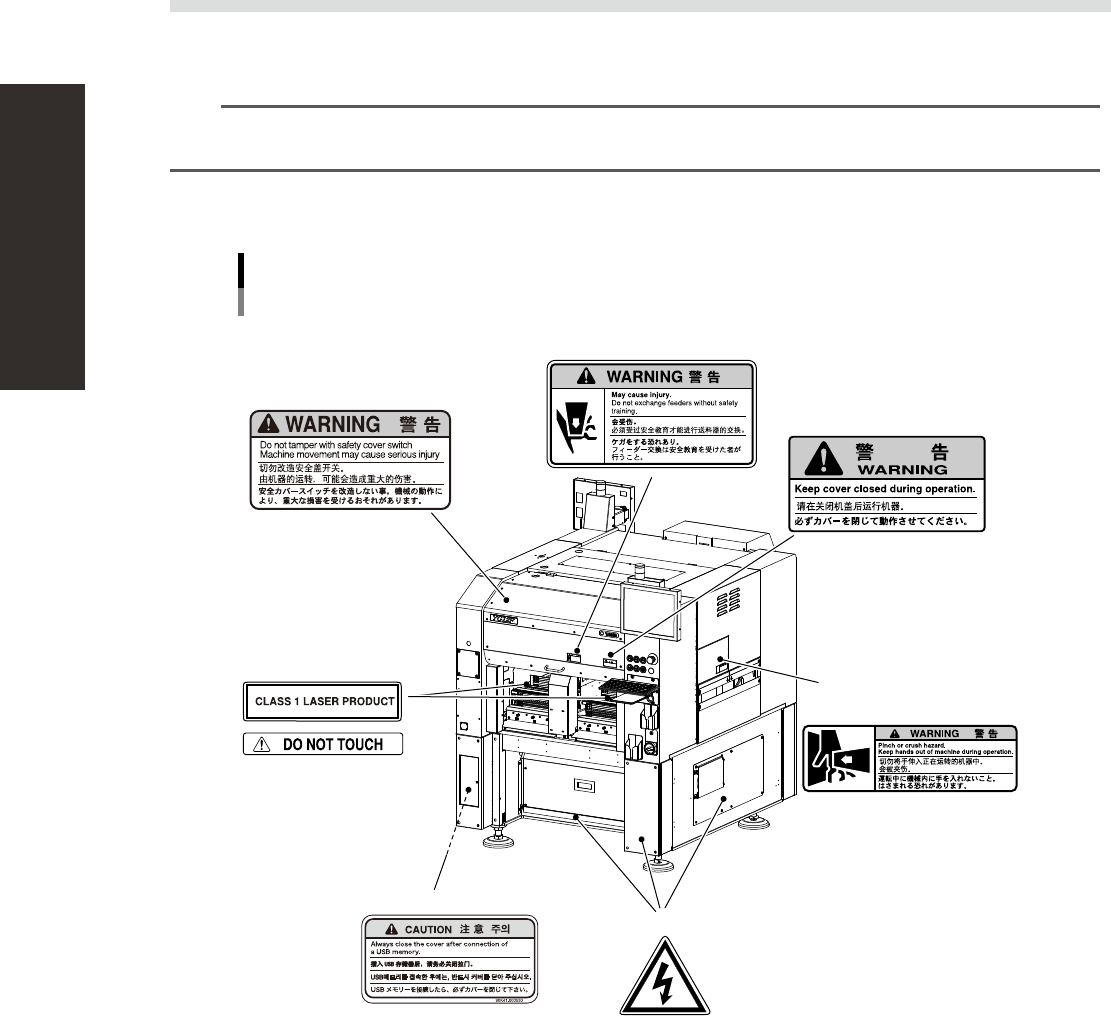

3.3 Label positions
The following warning/caution labels are attached to the YAMAHA products to ensure safe and correct use.
Check that the information on each label is clearly legible and comply with the instructions.
n
NOTE
Basically, labels are attached to the positions shown below, although they may differ slightly depending on the
machine model.
n
Label positions
Warning/caution labels
Front
N Open/close cover inner side
N Open/close cover
N Open/close cover
N Feeder setup section
N Conveyor opening
(right and left sides)
N Lower panels and panel inner side
N Panel inner side
91201-M7-00
