3.1 Component pick-and-place head
3.1.1 5-in-line multi-head assembly

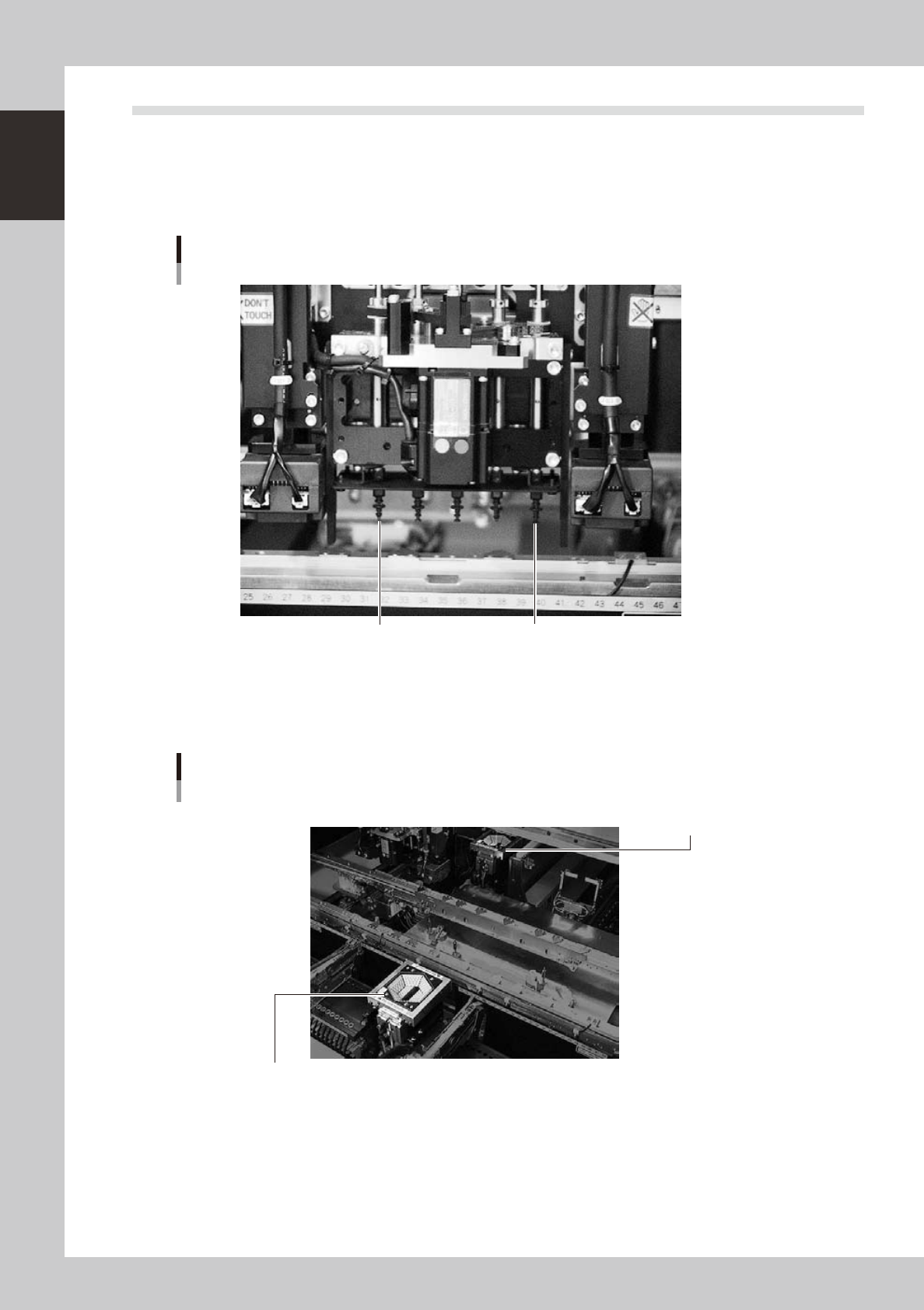

The 5-in-line multi-head assembly has 5 heads arranged in a row to pick up and place components. Head
numbers are designated from 1 to 5, from the right as viewed from the front of the machine. The spacing of
adjacent nozzles attached to the head assembly is 24mm.
Head 5 Head 1
5-in-line multi-head assembly
23105-M7-00
3.1.2 Multi-vision camera
YG12F has a component recognition camera on the front side as standard equipment.
This camera can also be added to the rear side as an option.
Multi-vision camera
Rear multi-vision camera
(option)
Front multi-vision camera
23106-M7-00
1-7
1
Part names and functions
3.2 Nozzle types
To ensure stable component pickup, the correct nozzle that matches the component must be used. The
following sections explain typical nozzles which can be attached to each head.

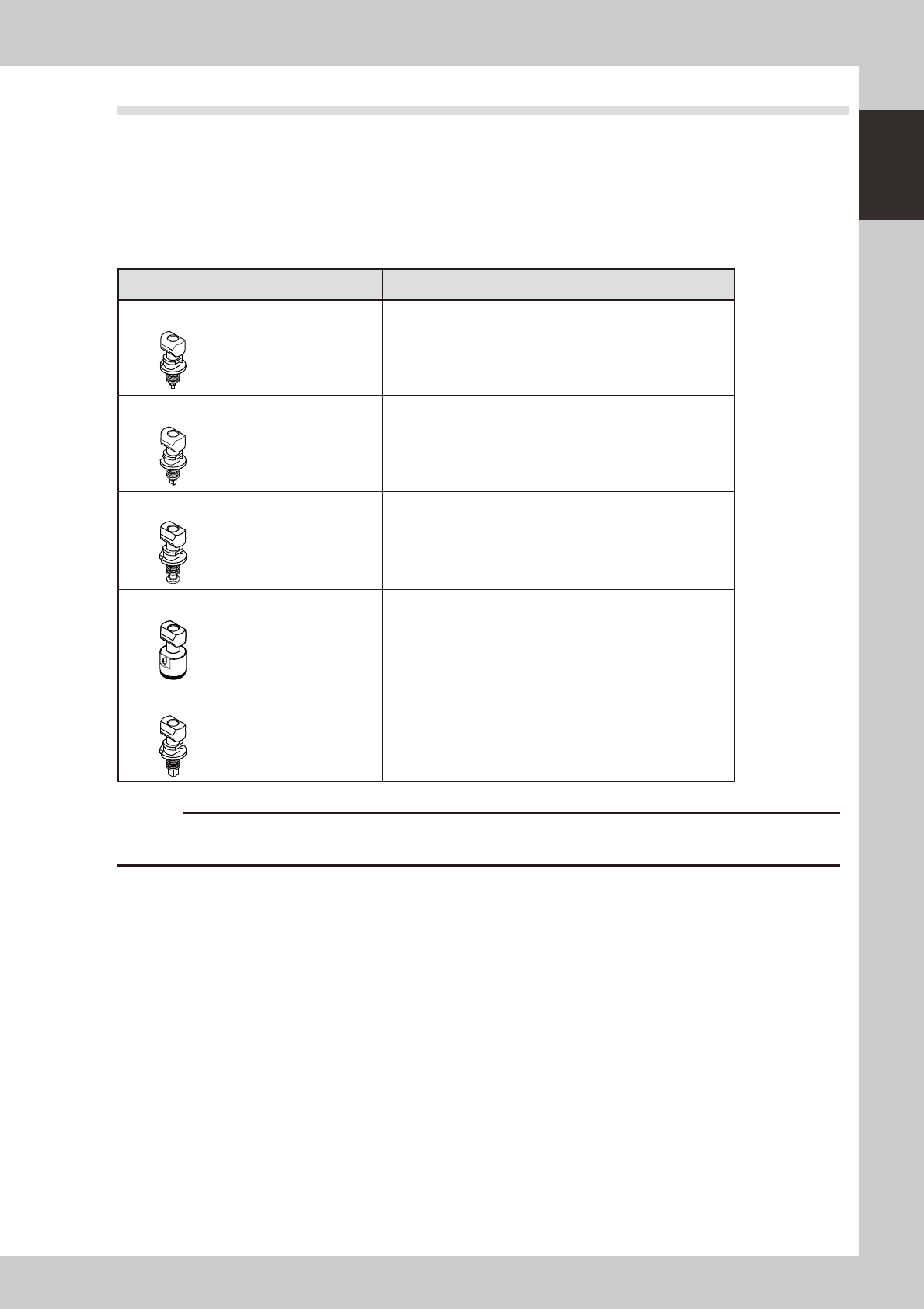

3.2.1 Nozzles for the 5-in-line head assemblies
■
Standard type
Five types of standard nozzles can be chosen and attached to each head.
Nozzle type Head No. Typical Components
Type 301A
1 to 5 0603 to 1005 size components
Type 302A
1 to 5 1608 to 3216 size components
Type 303A
1, 3 and 4 4532 to 7343 size components and SOP
Type 304A
2 and 5 QFP, etc.
Type 306A
1 to 5 Cylindrical chip (Melf type) components only
c
CAUTION
The above nozzles are specifically designed for use with the YG12F surface mounters. Do not use them for other
machines.
1-8
1
Part names and functions
■
Narrow adjacent type
Six types of narrow adjacent nozzles can be chosen and attached to each head.
Nozzle type Head No. Typical Components
Type 311A
1 to 5 0603 size components
Type 312A
1 to 5 1005 to 1608 size components
Type 313A
1 to 5 2012 to 3225 size components
Type 314A
1, 3 and 4 4532 to 7343 size components, SOP, etc.
Type 315A
2 and 5 QFP, etc.
Type 317A
1 to 5 Cylindrical chip (Melf type) components only
n
NOTE
For detailed information on component types and size, refer to the specification sheets that come with the machine.
