1-9 1 Part names and functions 3.3 Nozzle station (option) T he nozzle station accommodates various nozzles for automatic change. T he drawings below sho w the nozzle station No. and the allotted head No. and mating nozz…

100%1 / 126
1-8
1
Part names and functions
■
Narrow adjacent type
Six types of narrow adjacent nozzles can be chosen and attached to each head.
Nozzle type Head No. Typical Components
Type 311A
1 to 5 0603 size components
Type 312A
1 to 5 1005 to 1608 size components
Type 313A
1 to 5 2012 to 3225 size components
Type 314A
1, 3 and 4 4532 to 7343 size components, SOP, etc.
Type 315A
2 and 5 QFP, etc.
Type 317A
1 to 5 Cylindrical chip (Melf type) components only
n
NOTE
For detailed information on component types and size, refer to the specification sheets that come with the machine.
1-9
1
Part names and functions
3.3 Nozzle station (option)
The nozzle station accommodates various nozzles for automatic change.
The drawings below show the nozzle station No. and the allotted head No. and mating nozzle type.
HEAD 1
TYPE301A
HEAD 1
TYPE303A
HEAD 3
TYPE303A
HEAD 2
TYPE304A
HEAD 5
TYPE304A
HEAD 4
TYPE303A
HEAD 2
TYPE301A
HEAD 3
TYPE301A
HEAD 4
TYPE301A
HEAD 5
TYPE301A
HEAD 1
TYPE302A
HEAD 2
TYPE302A
HEAD 3
TYPE302A
HEAD 4
TYPE302A
HEAD 5
TYPE302A
Front of machine
Nozzle station
Standard type
Custom nozzle pockets
23107-M7-00

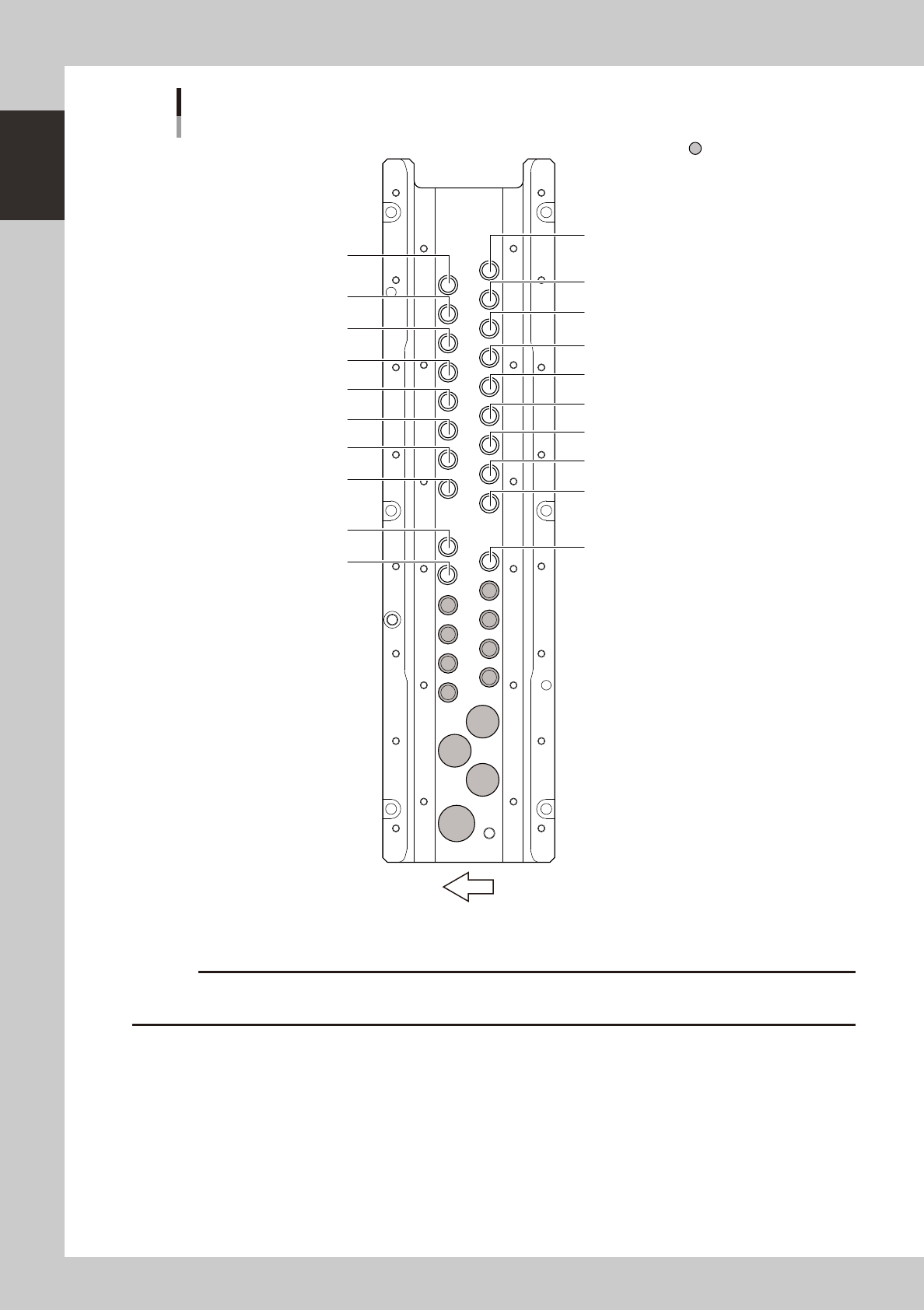

1-10
1
Part names and functions
Front of machine
HEAD 1
TYPE311A
HEAD 2
TYPE311A
HEAD 3
TYPE311A
HEAD 4
TYPE311A
HEAD 5
TYPE311A
HEAD 1
TYPE312A
HEAD 2
TYPE312A
HEAD 3
TYPE312A
HEAD 4
TYPE312A
HEAD 5
TYPE312A
HEAD 1
TYPE314A
HEAD 3
TYPE314A
HEAD 4
TYPE314A
HEAD 2
TYPE315A
HEAD 5
TYPE315A
HEAD 1
TYPE313A
HEAD 2
TYPE313A
HEAD 3
TYPE313A
HEAD 4
TYPE313A
HEAD 5
TYPE313A
Nozzle station
Narrow adjacent type
Custom nozzle pockets
23108-M7-00
c


restrictions on the size of components suitable for those nozzles.
