iv
Safety instructions
1.8 Keeping hands away from moving parts
During use of this machine, the customer’s equipment and operating conditions might allow the operator’s
hands to come into contact with moving parts.
Use the following safety measure options to avoid possible danger where openings or gaps are found on the
machine.
n
Dummy feeder, One-stop cover (YS series machines)
Use a dummy feeder as a safety measure to fill a gap between tape feeders. Install a dummy feeder on the feeder bank
the same way as normal SS feeders in order to prevent hands from entering.
Prevention of hand entry
Dummy feeder, One-stop cover
Dummy feeder (Wide-size)
Dummy feeder (8mm-size)
One-stop cover (For feeder exchange carriage)
91203-L0-10
n
Dummy feeder (YG series machines)
Use a dummy feeder as a safety measure to fill a gap between tape feeders. Install a dummy feeder on the feeder plate
the same way as normal feeders in order to prevent hands from entering.
Dummy feeder
8mm
91203-M7-00
v
Safety instructions
n

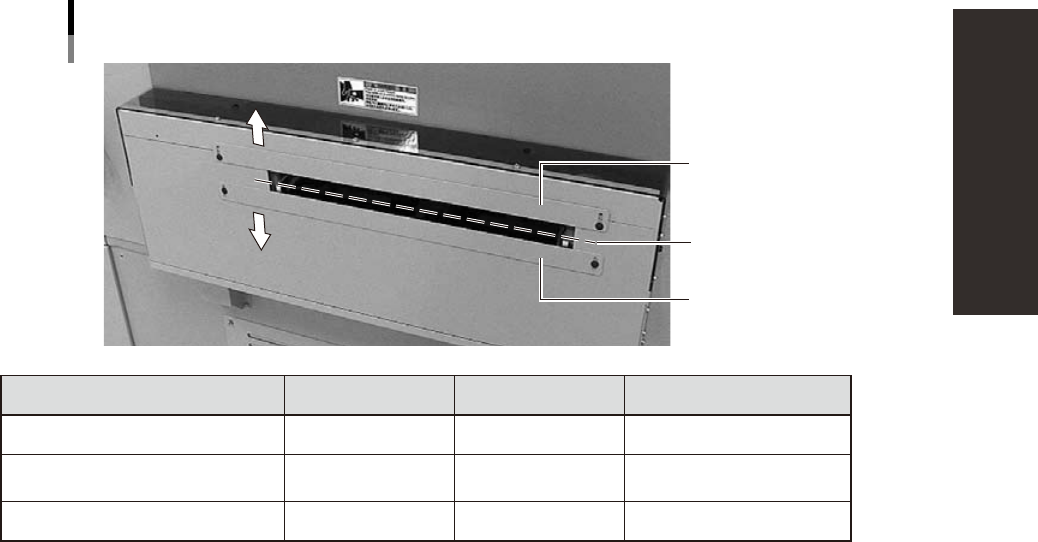

Muzzle plate
Use these plates as a safety measure for the board conveyor entrance and exit openings. Each plate is movable, so adjust
the mounting position to match the boards to be produced.
Muzzle plate
Upper muzzle plate
Lower muzzle plate
Board conveyance plane
91205-L0-00
Upper clearance Lower clearance Remarks
YS100/YS88 8.0 to 38.5mm 1.0 to 31.0mm From board conveyor plane
YS12, YS12P, YS12F, YS24
(YG12, YG12F)
5.0 to 20.0mm 4.2 to 39.2mm From board conveyor plane
YSP 0 to 6.6mm 0 to 26.4mm From board conveyor plane
vi
Safety instructions
2. Safety message
This section describes information you should always comply with to prevent unforeseen accidents that might
lead to injury of the operator and others or damage the machine. Hazards and injuries that might result from
ignoring safety instructions and operating the machine incorrectly are categorized as follows.
2.1 Safety message and categories in this manual
This manual uses the following safety alert symbols, signal words, and format styles according to the degree of
hazard.
n
Safety alert symbols and signal words
w
WARNING
c
n
NOTE
Gives helpful information or key points when operating the machine, in a simple and clear manner.
e
