2-12
2
asic operation
2.3 Unit screen
This section describes the manual operation buttons on the Unit screen.
n

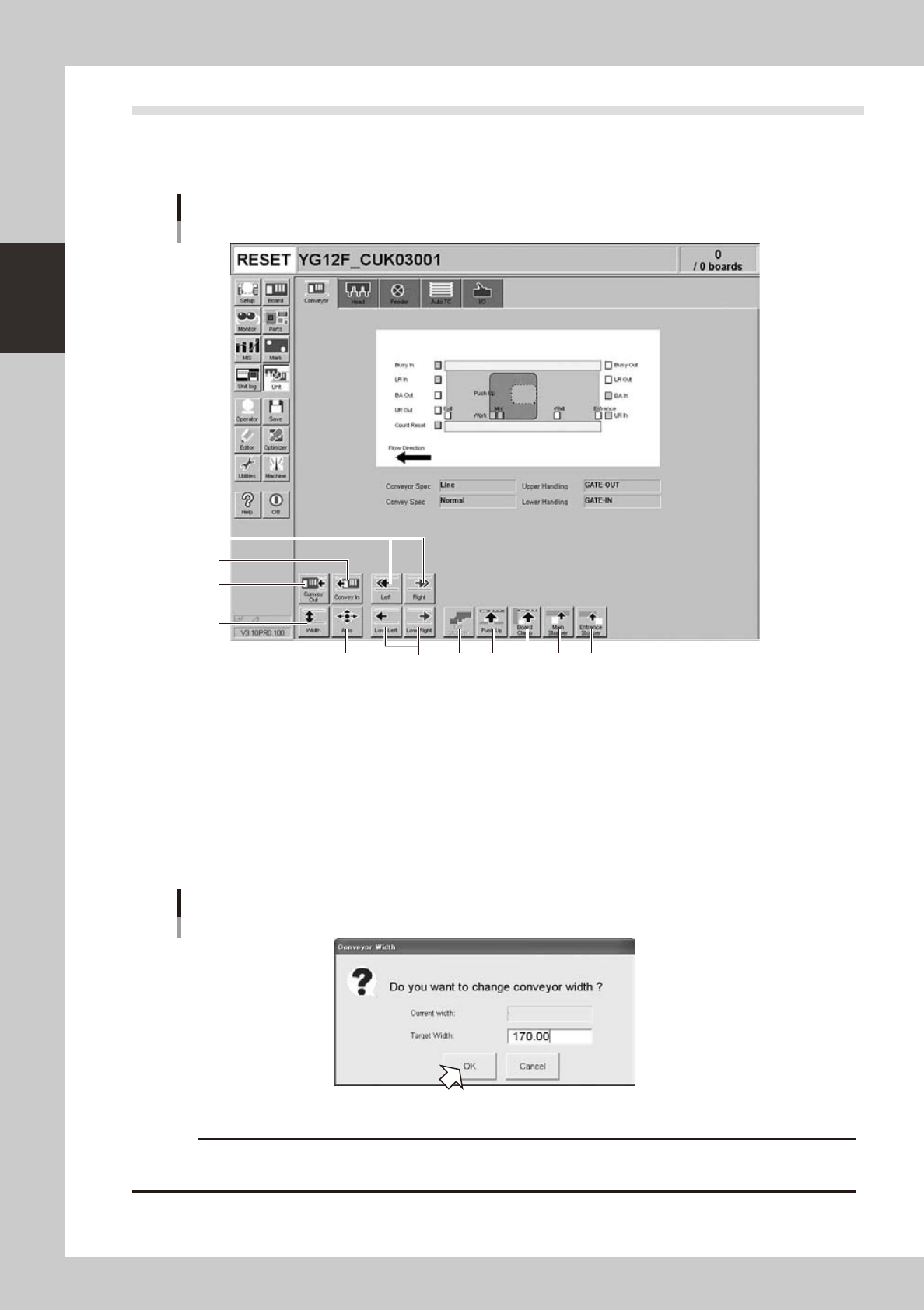

Manual conveyor operation
1
Conveyor manual buttons
3
2
4
5
6
7 8 9 10 11
24204-M7-00
1. Convey In
Moves the board from the conveyor entrance or standby position to the clamp position and clamps it.
2. Convey Out
Unclamps the board and moves it to the exit stopper position.
3. [Width] button
Use this button to adjust the conveyor width to match the width of boards to be produced.
Pressing this button displays the "Conveyor Width" dialog box. Check the conveyor width and press the [OK] button. The
conveyor rail automatically changes to the specified width.
"Conveyor Width" dialog box
24205-M7-00
c
conveyor units.
2-13
2
asic operation
4. [Axis] button
Pressing this button opens the "Move Axis" screen as shown below. You can manually move each axis at a specified step
stroke with the arrow buttons or to a specified position with the [PTP] button.
5. [Left] button, [Right] button
Rotates the conveyor motor in the left or right direction at high speeds.
6. [Low Left] button, [Low Right] button
Rotates the conveyor motor in the left or right direction at low speeds.
7. [Exit Stopper] button
Raises or lowers the exit stopper that stops a board at the conveyor exit.
8. [Push Up] button
Pressing this button opens a dialog box for entering board thickness. Check or enter the board thickness to clamp the
board by pushing it up from the bottom (underside).
9. [Board Clamp] button
Clamps the board by pushing up its edges from the bottom (underside).
10. [Main Stopper] button
Raises or lowers the main stopper that stops a board in the clamp position on the conveyor.
11. [Entrance Stopper] button
Raises or lowers the entrance stopper that stops a board at the standby position.

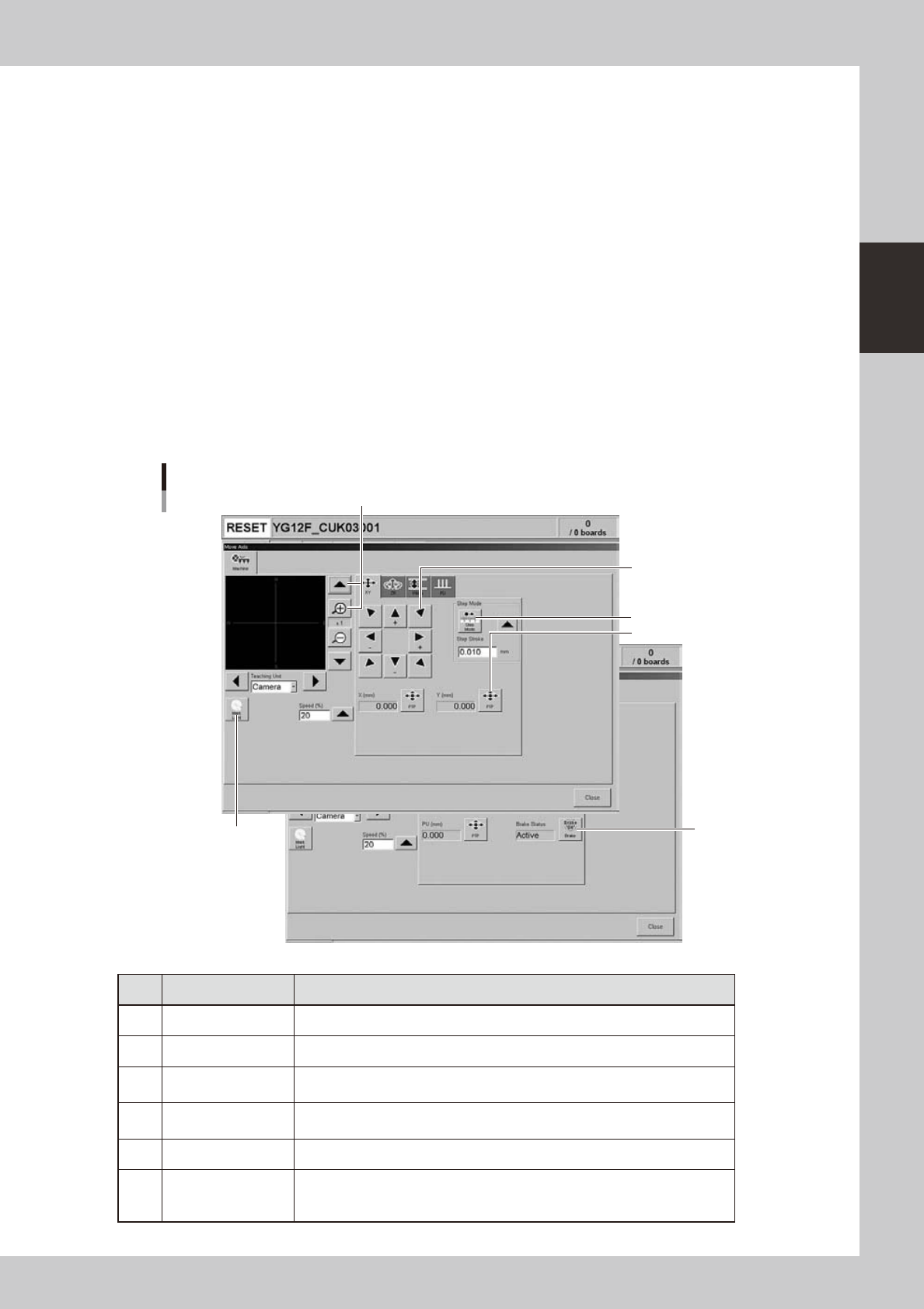

"Move Axis" screen
1
2
3
4
5
6
24206-M7-00
Button name Function
1 Zoom in/out (+, -) Zooms in or out the image. (16 times to 1/16 times)
2 Mark Light Allows changing mark lighting manually. Using this button does not affect data.
3 PTP
Displays the "PTP" dialog box that allows directly specifying the position where
you want to move the selected axis.
4 Step Mode
When this button is pushed in, the selected axis can be moved in "step mode
(inching mode)" with the arrow buttons at a specified step stroke (inching stroke).
5 Arrow Use these buttons to move the selected axis in the desired direction.
6 Brake
Use this button when you want to release the brake during emergency stop.
(W-axis and PU axis only)
The brake is automatically released when the servo is turned on.
2-14
2
asic operation
n

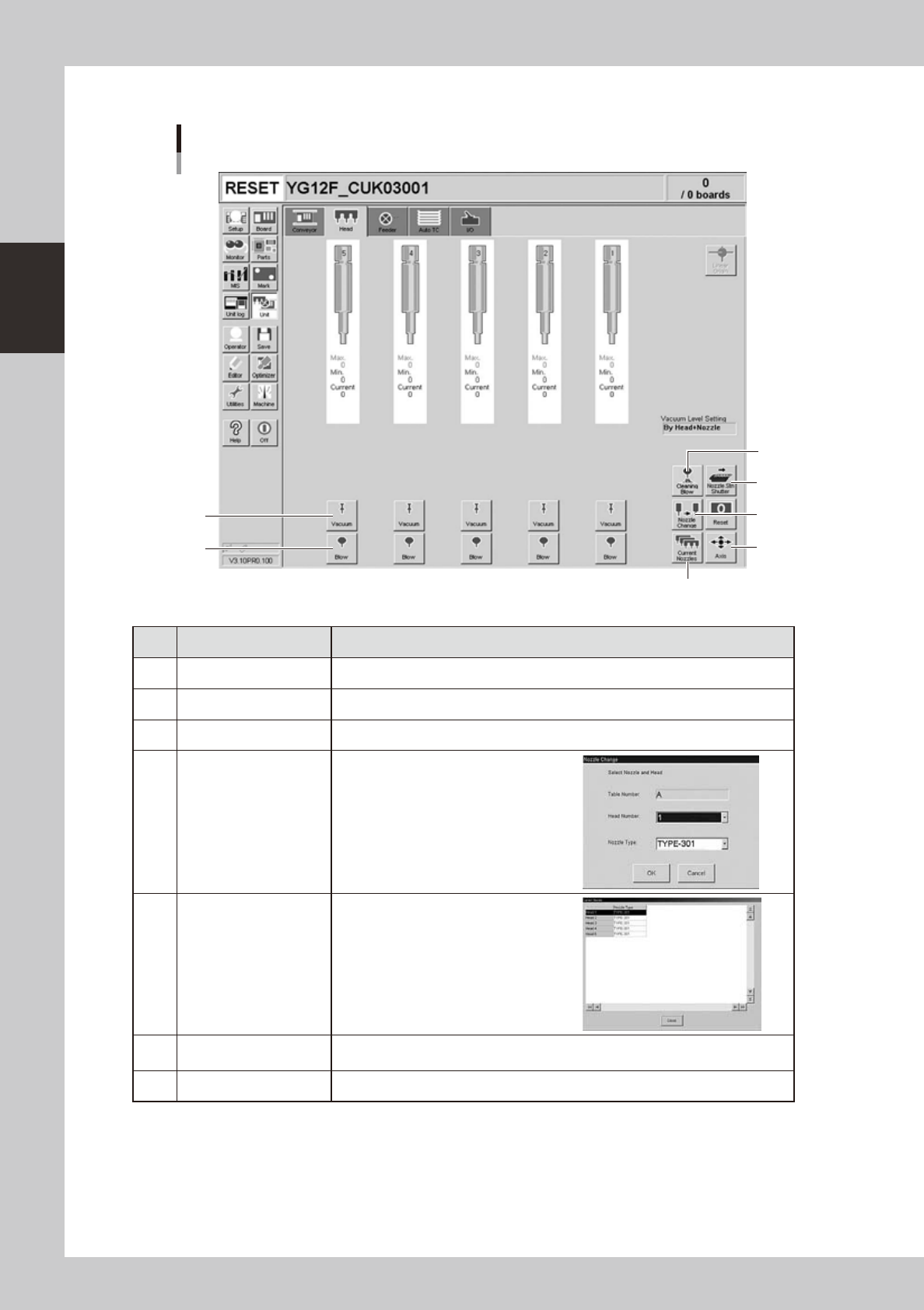

Manual head operation
[Unit] – [Head] screen
1
2
3
4
5
6
7
24207-M7-00
Button name Function
1 Vacuum Turns the vacuum of each head on or off.
2 Blow Turns the air blow in each head on or off.
3 Nozzle STN Shutter Opens or closes the nozzle station shutter.
4 Nozzle Change
Opens the "Nozzle Change" dialog box.
Specify the head and nozzle type to
perform nozzle change.
5 Current Nozzles
Shows a list of nozzle types currently
attached to each head.
6 Axis
Opens the "Move Axis" screen. This is the same as the [Axis] button on the [Unit]-
[Conveyor] screen.
7 Cleaning Blow Not currently used.
