2-32 2 asic operation 4.2 Setting the tray components n Precautions when handling pallets Observe the following points w hen handling the pallets. • Store the pallets in a clean environment where dust, grime and oil wi…
2-31
2
asic operation
6

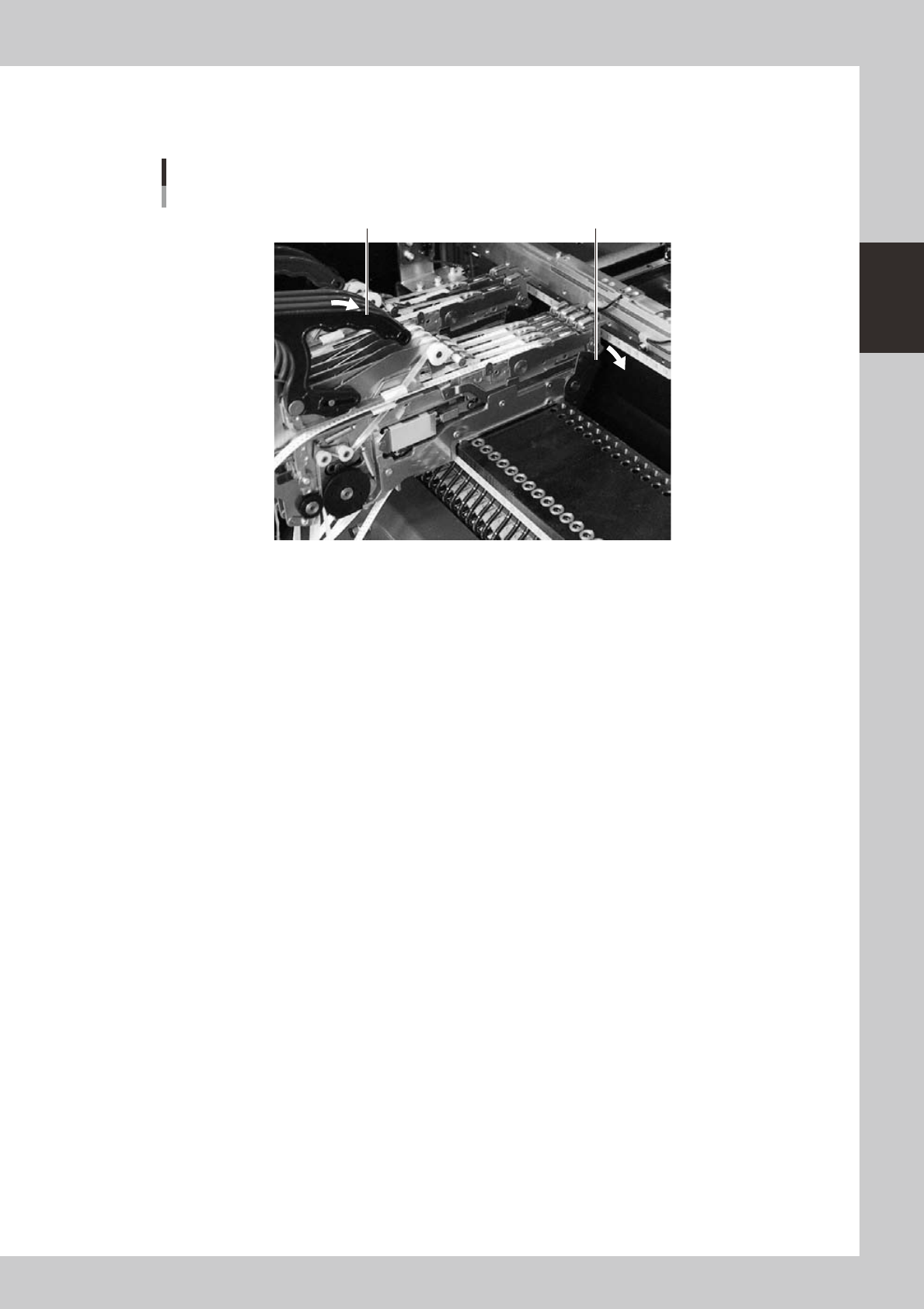

Push down the clamping lever away from you.
Lower the clamping lever lock handle. Push down the clamping lever until it is securely set on the feeder
plate. If the lever is not properly set, the feeder may come off during mounting or operation.
Clamping Lever
Clamping lever lock handle Clamping lever
23217-M7-00
2-32
2
asic operation
4.2 Setting the tray components
n
Precautions when handling pallets
Observe the following points when handling the pallets.
• Store the pallets in a clean environment where dust, grime and oil will not adhere.
• Take care not to drop the pallets or apply excessive force or impacts. Do not use a pallet if it is warped or deformed
after having been dropped.
• Avoid hurting yourself on the edges of the pallets.
4.2.1 Setting the component trays in the pallet
Several component trays can be set on one pallet (depending on the size of trays). Set the trays as described
below.
Clamping the component tray
Using one tray
Using several trays
Tray pitch X
Clamping magnet
Tray
Tray pitch Y
Pallet reference position (pallet origin position)
23213-M7-00
1
Remove the tray clamp magnets.
2
Set the component tray on the pallet.
Set so the corner of the component tray is aligned with the pallet reference position (pallet origin
position). After setting the tray, clamp it in place with the magnets.
Clamping the component tray
Pallet pullout piece
Tray clamp magnet
Pallet
Tray
23214-M7-00
3
Check that the component tray is clamped.
Press on the tray to make sure it is securely clamped by the magnet.
2-33
2
asic operation
4.2.2 Setting a pallet in the ATS15
1
Open the ATS15 door.
Set the door switch to "OPEN" to unlock the door. Check the door switch lamp is off and then open the
door.
2
Open the pallet retainer door.
Open the pallet retainer door on the right side.
3
Insert the pallet.
While keeping the pallet level, insert it into the correct magazine shelf, with the pallet pullout piece
facing inward.
Inserting the pallet
Pullout piece
Pallet retainer door
Pallet insertion shelf number
23215-M7-00
4
Insert all the required pallets into the correct magazine shelf.
n
NOTE
• Labelwithblackandsilvernumbersareafxedtobothsidesofthemagazinetoshowtheshelfnumberand
prevent inserting a pallet into the wrong position.
• Insertthepalletintotheshelfthatwassetinthe"PalletNo.Start"and"PalletNo.End"parameterinthe[Parts]-[Tray]
information.
5
Close the pallet retainer door.
After closing the pallet retainer door, close the ATS15 door.
6
Set the door switch to "CLOSE".
This locks the door, and the door switch lamps turn on indicating that the pallets are set.
